Hello,

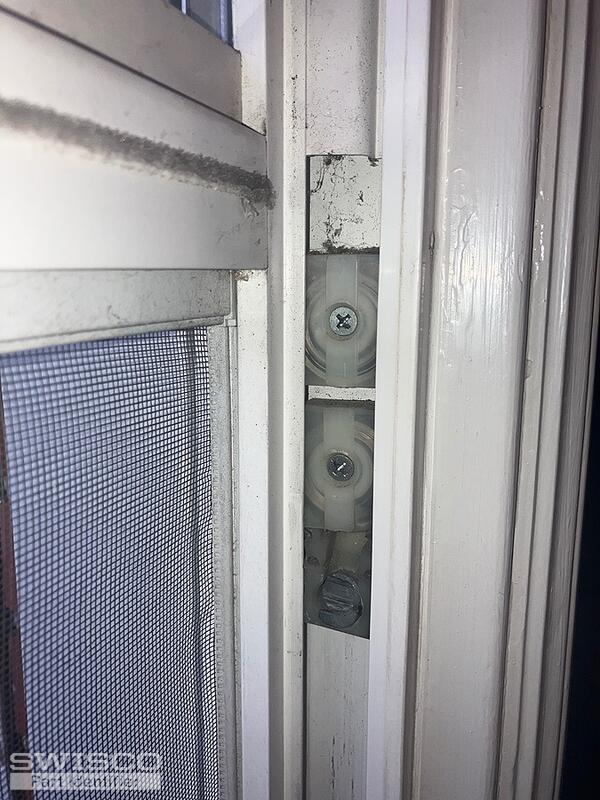

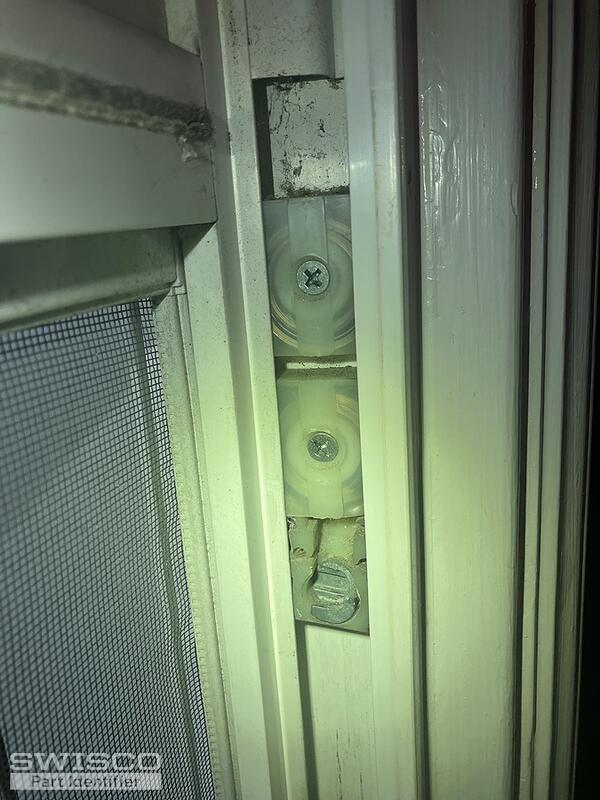

I am looking to replace the coil assemblies in my windows but I cannot find a proper replacement. Please review the attached photos and let me know what else you will need. Thanks.
Looking to replace a few parts
Handy Person from St. Louis, MO
Apr 17, 2025 4:59 pm
5 user uploaded images
2 Replies
Lauren from SWISCO
Apr 21, 2025 9:30 am
Hello, thank you for posting,
Your original pivot shoe is no longer made, but we recommend reviewing the 15-177 style as a replacement option. Compare the dimensions below to confirm a good fit!
Alternate image for 15-177
Your original coil springs are compatible with this shoe, but if new ones are needed, please see the Series 152 coils. Match up the number stamped into the metal to confirm the correct weighted option to support the window sash.
Also see the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel. Let us know if you have any additional questions!
