MILGARD WINDOW

Question

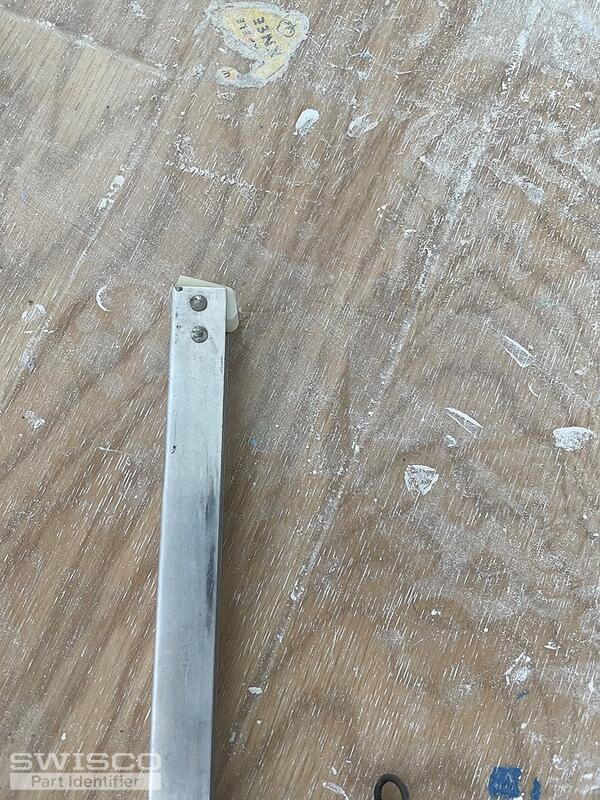

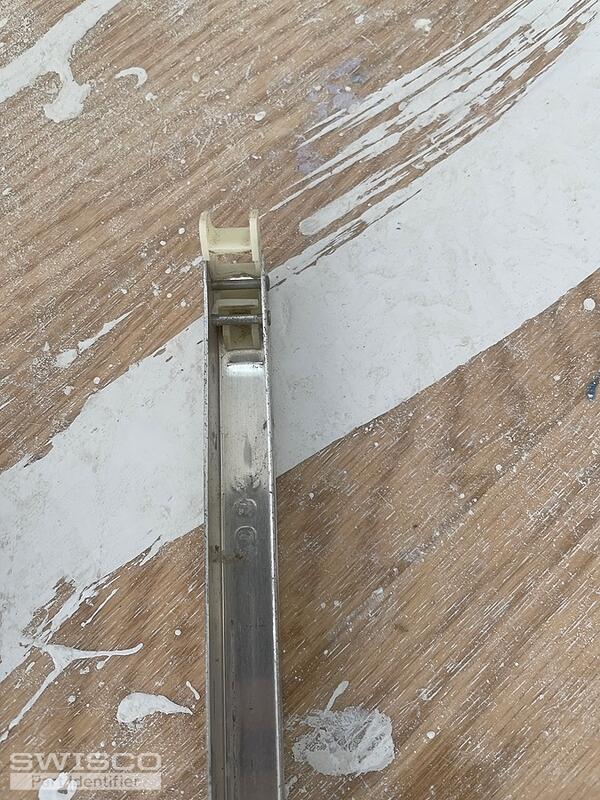

House is from 1986 old windows. Windows do not stay up. Need new channels. Channel completely broken

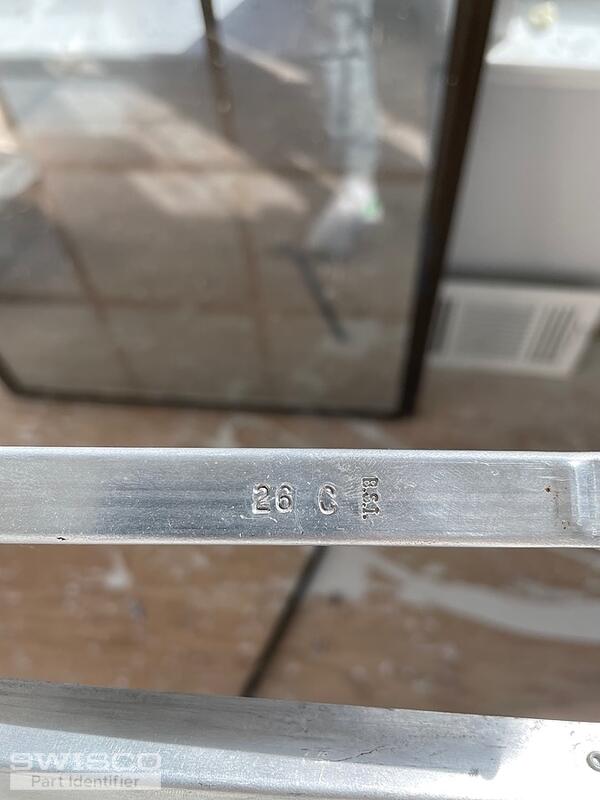

Part identifier - B.S.I. 26 C
Channel length 27"

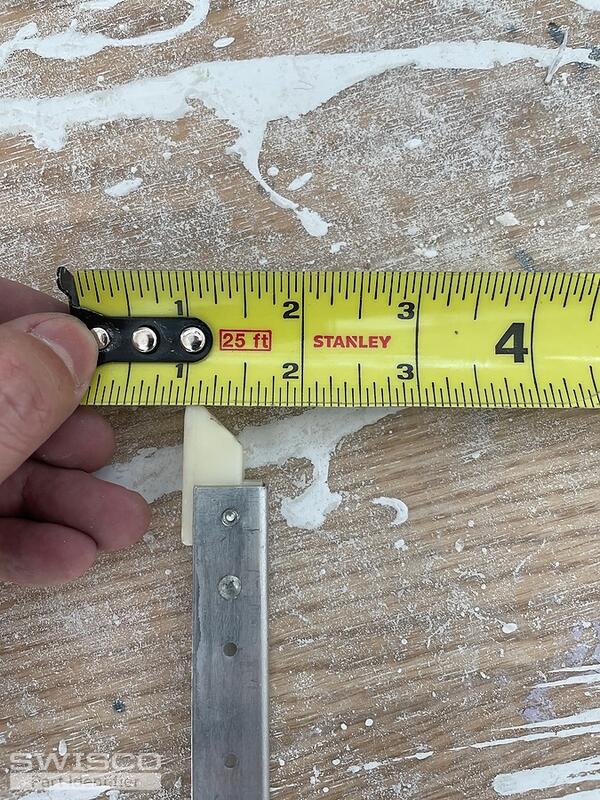

Width - 1/2 "
Window weight - 15.5 lbs

Casey · Accepted Answer

Hello,

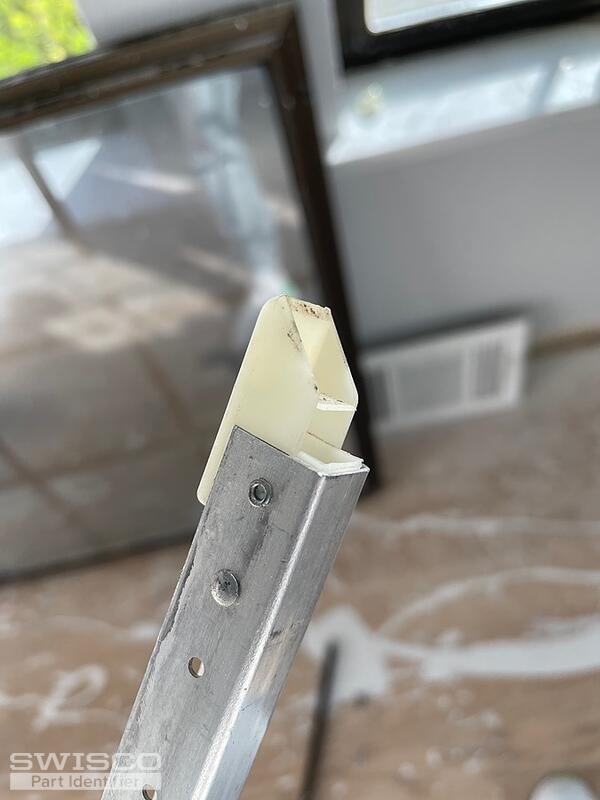

I suspect that you may have either our S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment but you'll need to remove an undamaged balance from another window to confirm since the bottom fitting in your photo is broken.

Once you have an intact balance handy, take a look at the image below to determine which balance you'll need. You'll also need a 2630 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
