I am in need of balances for MW windows.
I know the lengths and can provide any other information necessary.
MW Window Replacement parts
Handy Person from Yorktown, VA
Jul 25, 2023 6:34 pm

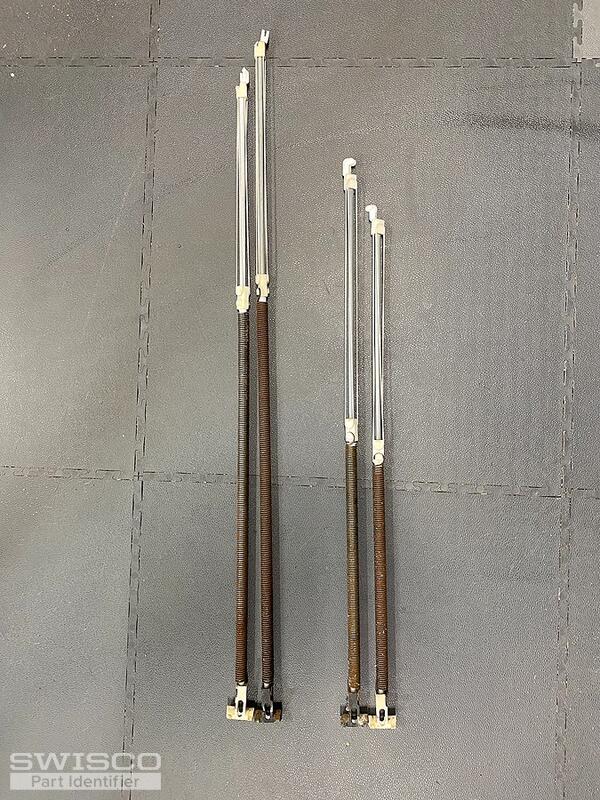

1 user uploaded image
2 Replies
Jasmine from SWISCO
Jul 26, 2023 1:16 pm
Hello,
Your balances appear to be the discontinued crossbow style balance. These have been converted to use our Series 795 Channel Balances.
To confirm that these balances will be a situatable replacement, you'll need to obtain a few measurements from your existing balances. These include the length of an undamaged balance, the diameter of the balance channel/tube (which should be 1/2"), as well as the width of the bottom T-shaped attachment. It will either be 1" or 1-1/4" across the bottom of the T shape.
You will also need to obtain the exact weight of the window to select the correct stamp option.
Take a look at the video below for instructions on this balance conversion and the information you'll need to determine the correct balances. Let me know if you have any questions.
