MW stamp on lock?

Handy Person from Fredericksburg, VA

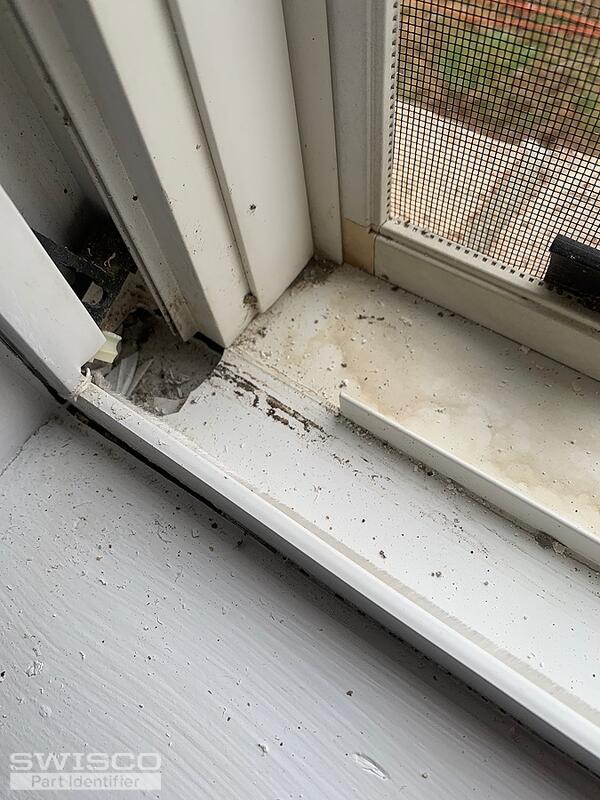

Hi, i'm in need of replacement spring balances for these windows, and some weatherstripping for the bottom. Any help would be greatly appreciated. Dimensions are 29" wide (pane itself) and 51.5" long. Any tips on repairing this crack at the bottom would also be helpful. Thank you!
5 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there! Thank you for reaching out to us. I'm afraid we can't assist with the damage to your window but we should be able to help with the balance. I see a type of attachment here in your first photo but it's hard to make out. Would you be able to remove it from the window and show us a photo?

As for the weatherstripping, can you remove an undamaged sample and show us a clear photo of the end profile? If it's pile, we will need you to write out the pile height and base width.



Handy Person from Fredericksburg, VA

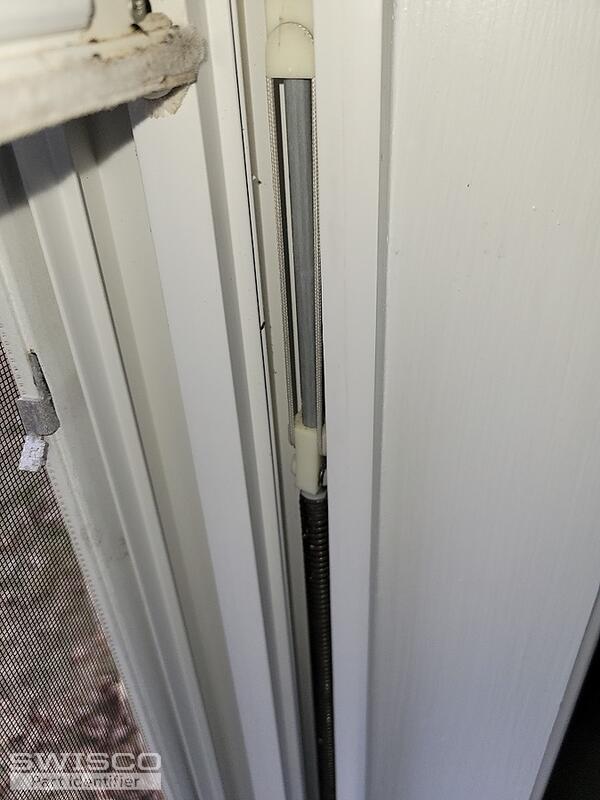

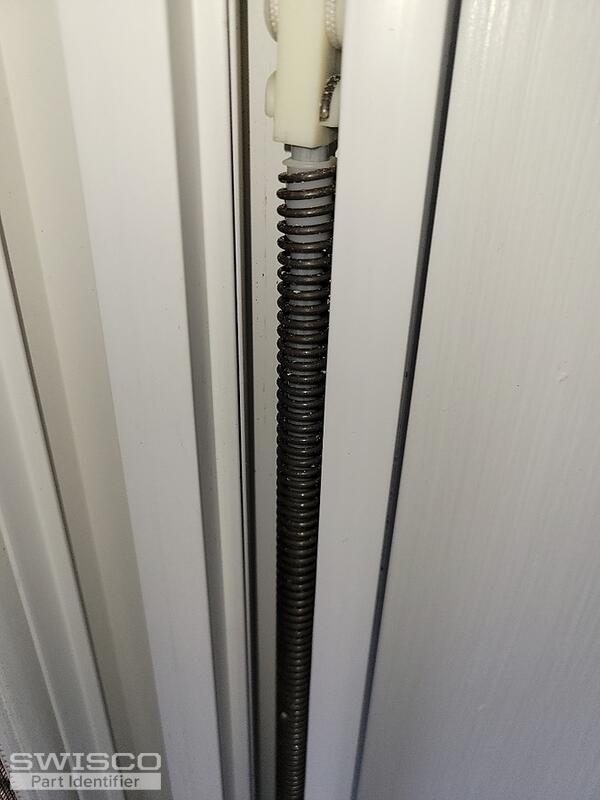

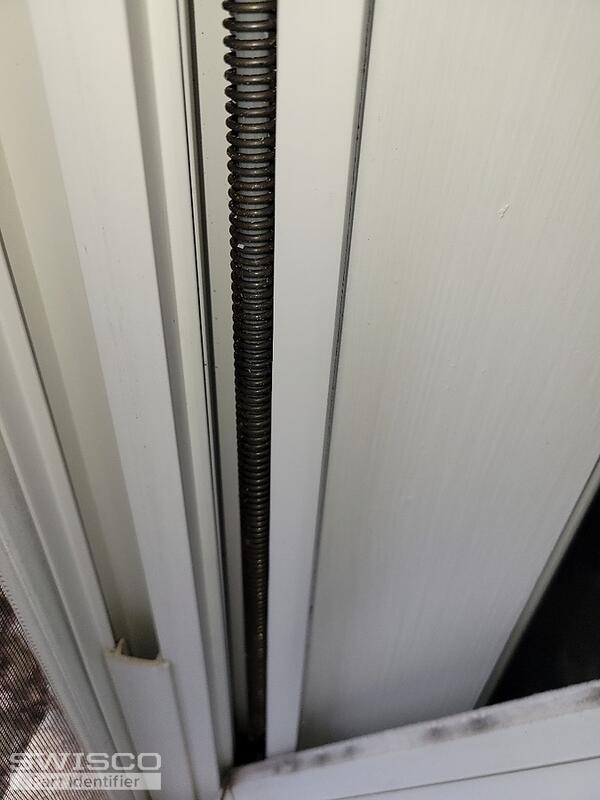

Hi, thanks for your response. I am not at the site - the customer sent me these photos of an intact balance. Still working on the weatherstrip photo, although we may be able to repair that piece with adhesive. They are not completely detached.
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Unfortunately, these photos don't show the shoe. The window sash will have to be removed so that we can get a good look at it.

Handy Person from Fredericksburg, VA

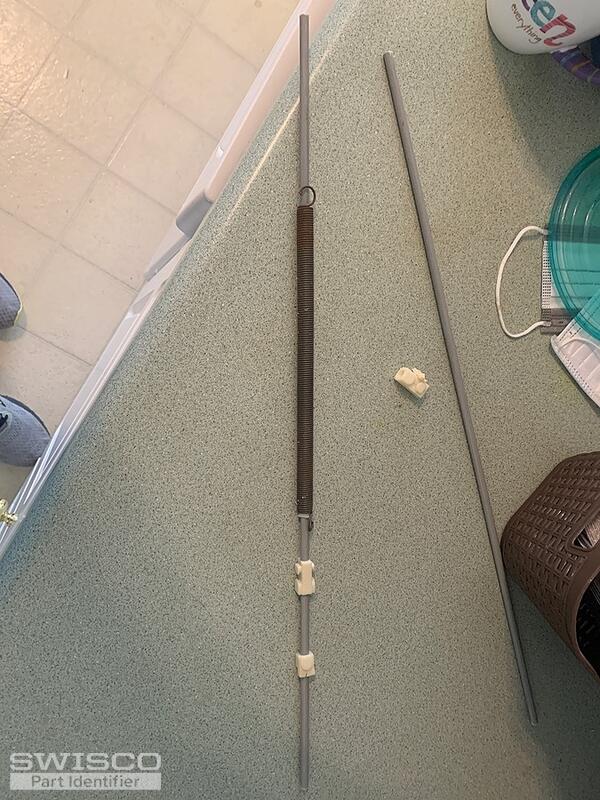

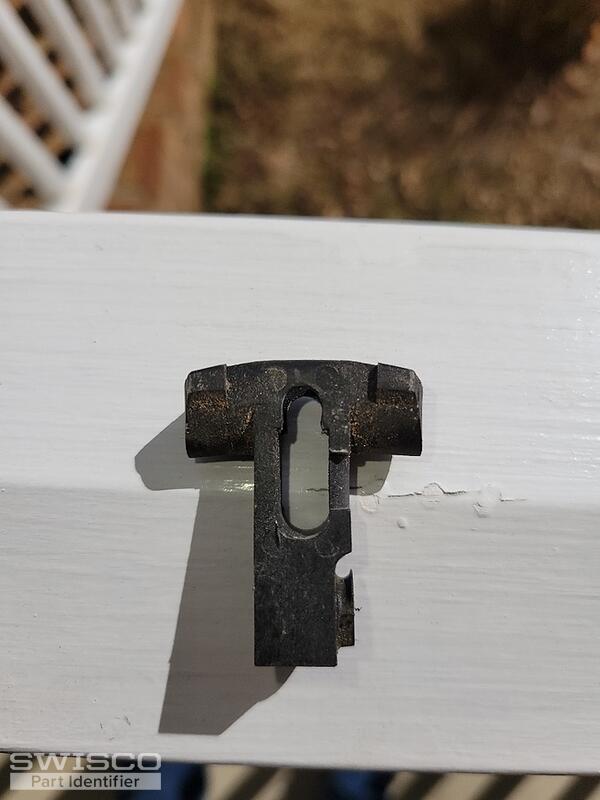

Does this help? I will need to go to the site to get photos of one that is intact. This is one I removed. Thank you!
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

This is perfect, thank you! Our Series 795 channel balance can replace your old assembly as long as the spring diameter is 1/2". The video below will walk you through the replacement process.

Let me know if you have any questions!

Handy Person from Fredericksburg, VA
Perfect - thank you very much!
Emily
Emily from SWISCO
SWISCO
Expert

No problem; good luck with the repair!
