M&W match
Contractor from Roanoke VA
Oct 14, 2016 8:27 pm

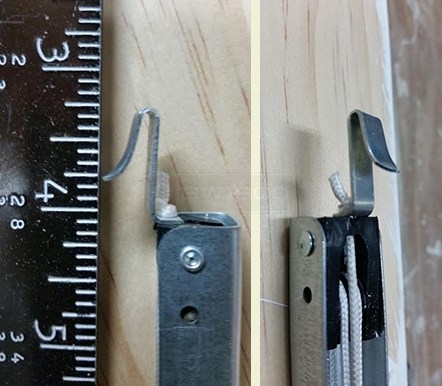

I am trying to match M&W replacement balances. The balance matches exactly to the 795 series except for the top clip. The attached pictures show the shape of the clip. It is 3/4" high with a 1/2" bend back towards the main balance. The clip is 1/4" wide to fit into a hole in the window jamb liner. From another search I found, it looks like part 15-198 hook, only mine is straight.
The bottom has part 15-194 T-lock balance shoe attached.
The balance is a 24" long in C strength. I will need 4 replacement balances.
The bottom has part 15-194 T-lock balance shoe attached.
The balance is a 24" long in C strength. I will need 4 replacement balances.
4 Replies
Paul from SWISCO
Oct 19, 2016 9:19 am
Hello! I agree, the 15-198 hook looks like it can work. I know yours is a slightly different shape but they should still function the same way. I can custom make these balances for you, if you'd like. I would just need to know the length of the metal channel, the stamp printed on it, and how many altogether you'd need. Let me know!
Contractor from Roanoke
Oct 19, 2016 10:54 pm
The balance is stamped with 24C and is 24" long. The window sashes weigh 20lbs. each. I need 4 replacement balances total.
Tom from SWISCO
Oct 21, 2016 12:34 pm
Perfect. I've sent you a custom balance order link for 4 of these balances. This includes a price quote. You can use this link to add the custom balance to your cart as if it were any other part.
