Mastic Window Balances

Professional from Pawling, NY

Oct 25, 2023 8:00 am

I have a client who needs a pair of these balances for an older Mastic Vinyl Replacement window. Approximate frame size = 33 3/4 X 52 3/4.

2 user uploaded images

11 Replies

Emily from SWISCO

Oct 26, 2023 1:02 pm

Hello there!

Thank you for reaching out to us. I can't ID what you have here just yet. I would need to see this balance, in undamaged condition, removed from the window along with any attachments. Would that be possible?

Professional from Pawling, NY

Oct 26, 2023 6:44 pm

Yes, I'll take it out this weekend and send a pic to you then. Thanks.

Emily from SWISCO

Oct 27, 2023 7:49 am

Great, we will be here to help!

Professional from Pawling, NY

Oct 31, 2023 8:15 am

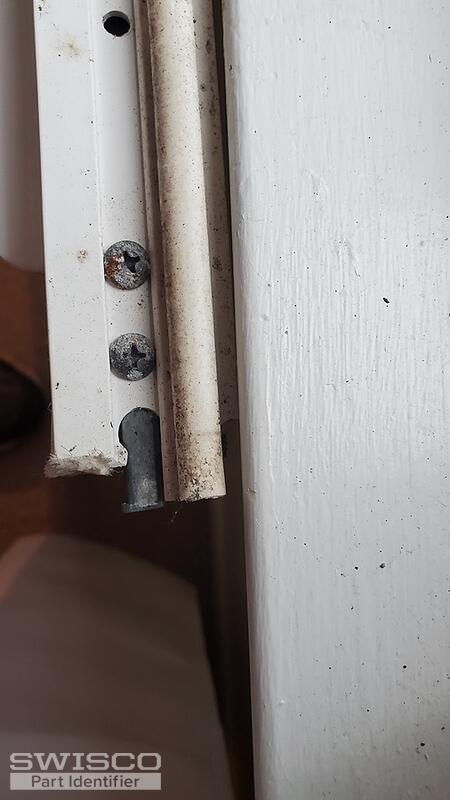

I have attached additional photos of the balances. They are 24" long and the sash is 30 11/16 w x 26 1/4 h. Thank you!

3 user uploaded images

Emily from SWISCO

Oct 31, 2023 12:51 pm

We're almost there! I'm not able to ID this just yet. Can you show me a photo of the clip attached at the end of the cord? It may also be helpful to see the pivot shoe.

Professional from Pawling, NY

Oct 31, 2023 5:38 pm

I'll get back to you in a few days with it.

Professional from Pawling, NY

Nov 7, 2023 6:57 am

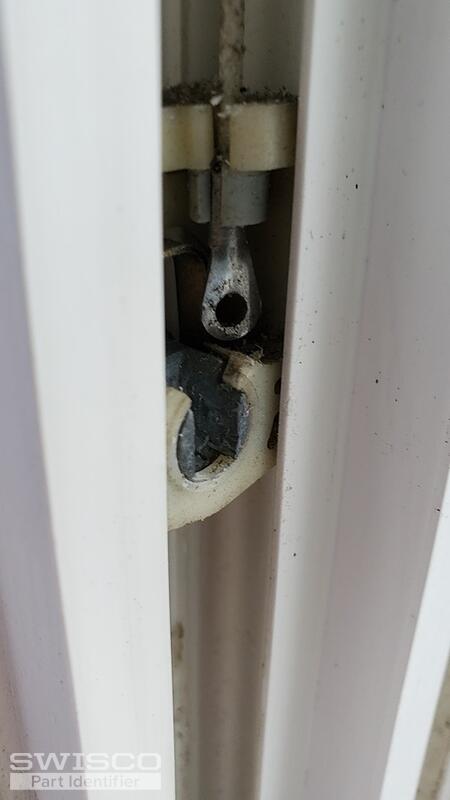

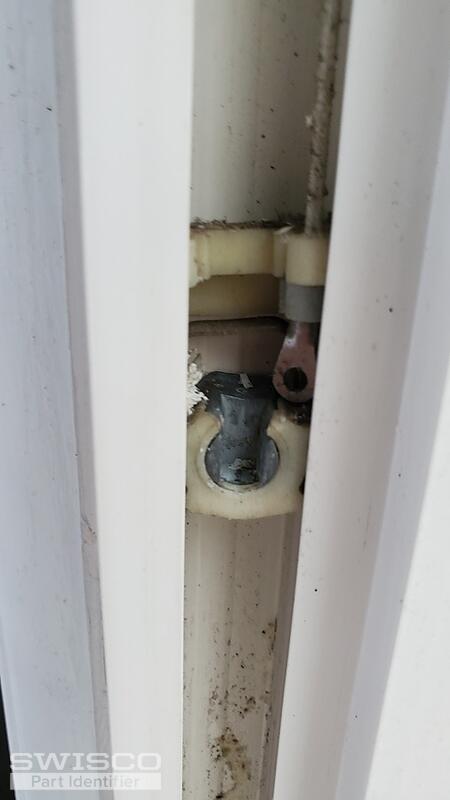

I have attached photos of the pivot shoe along with clip from an undamaged balance.

3 user uploaded images

Emily from SWISCO

Nov 7, 2023 8:23 am

Thanks so much for the additional photos! My recommendation is the Series 770 channel balance. This anchors to the pivot shoe with a different clip than the one shown here but it should still work. However, you'll need to weigh the window sash on a scale to determine the accordant stamp option. If you need a new pivot shoe, start by taking a look at our 15-129, 15-135, 15-152, 15-167, or 15-179 depending on the dimensions of the old one.

Professional from Pawling, NY

Nov 7, 2023 8:18 pm

Thank you! Can you not delete this thread for a few days till I can confirm the sash weight. Thanks again.

Emily from SWISCO

Nov 8, 2023 8:41 am

No problem, this thread will remain open for your review.
