Matching this window balance

Home Owner from Ridgefield Park NJ
Aug 30, 2023 2:28 pm
This is for the left side of the window. The balance popped out and I guess the spring sprung up. Will you be able to help me match what I need? Thank you
IMG_4681 IMG_4679 IMG_4678
3 user uploaded images
5 Replies
Home Owner from Ridgefield Park NJ
Aug 31, 2023 1:57 pm

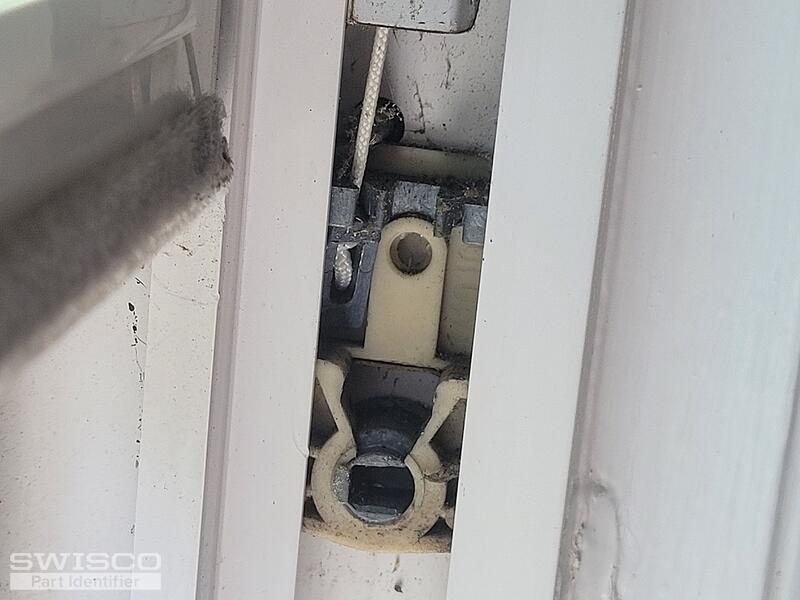

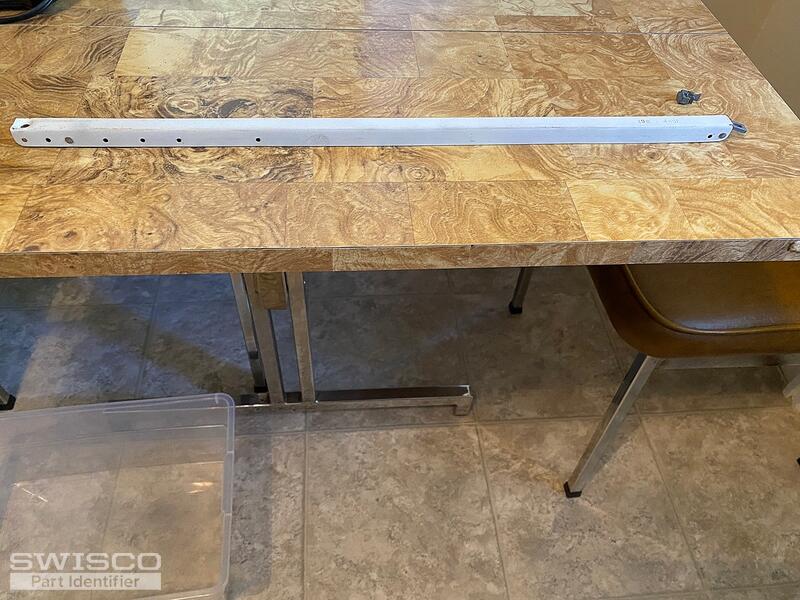

Resized_20230831_123209 IMG_4696 IMG_4695
3 user uploaded images
Casey
Casey from SWISCO
Sep 1, 2023 1:49 pm
SWISCO
EXPERT

Hello,

Your channel balances resembles the S770, which attaches to the top of the window with a screw and anchors to the pivot shoe with a terminal clip at the end of the pulley cord.

Close up view of the Series 770 balance top.
Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

If the pivot shoe is the part that broke, I would recommend removing yours from the window to compare to the 15-129 shown below. Take a look and thanks for posting!

Detail of 15-129
Detail of 15-129

Home Owner from Ridgefield Park NJ
Sep 1, 2023 4:35 pm
Hello

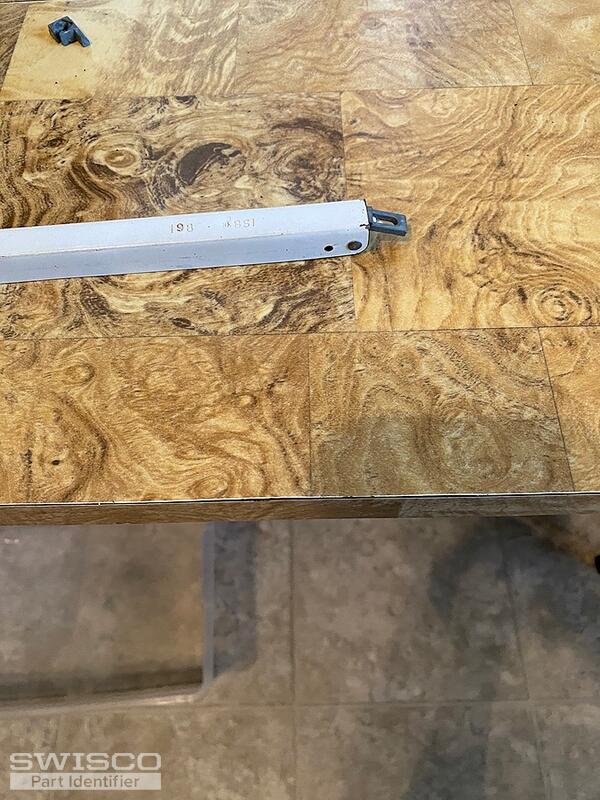

The length of my channel balance is 19" and the width is 1/2". The best I could read on the back looks like 19B BSI Does your S770 still resemble mine? And do you think the Pivot Shoe 15-129 would work? It looks a little bit too big. Thank you for helping me
Home Owner from Ridgefield Park NJ
Sep 2, 2023 1:35 pm
Could it possibly be called a Block and Tackle Balance??
Casey
Casey from SWISCO
Sep 5, 2023 9:01 am
SWISCO
EXPERT

We do offer a 19B strength option for the S770-19 channel balance, which is also referred to as a block and tackle balance in the industry. The 15-129 is often used with the S770 but we would need to see your pivot shoe uninstalled, along with written-out dimensions, to confirm if a closer match is available.
