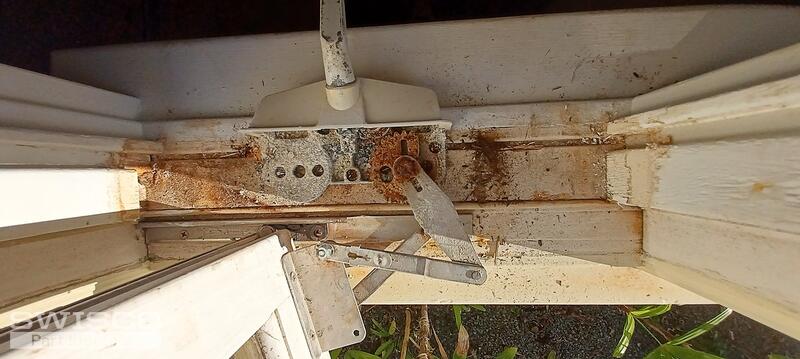

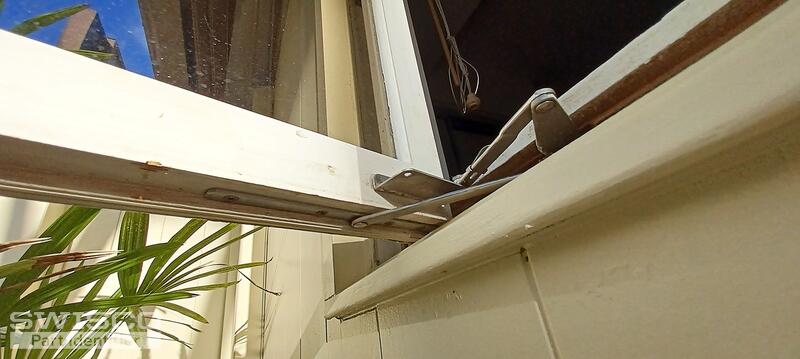

Top part on jamb and sill part are 10 inches Bottom on window is 7.5 Crank part is 5 inches
Casey from SWISCO responded:
October 24, 2022
Hello,
Take a look and compare the specifications of the 39-035 EntruGard operator and 36-048 hinge set, as well as the rest of the related items, to your original hardware. Thank you!
