Milford parts

Handy Person from Denver, CO

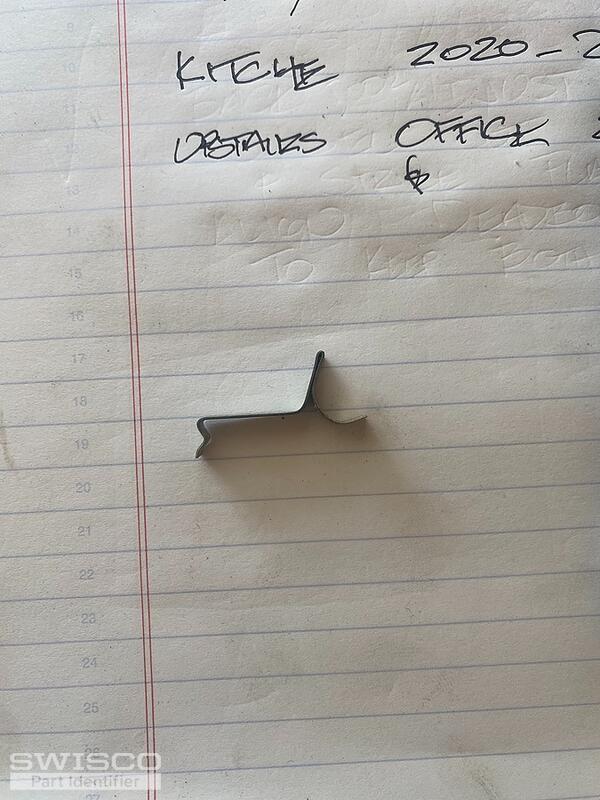

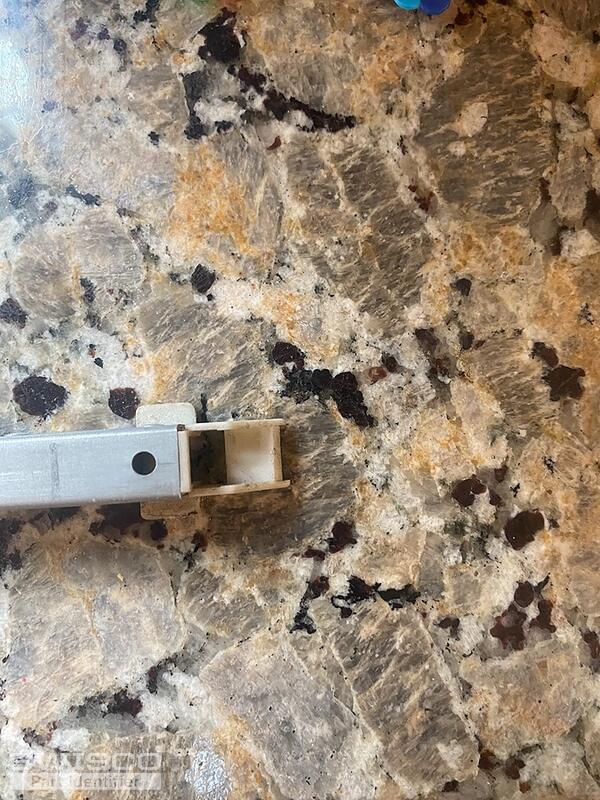

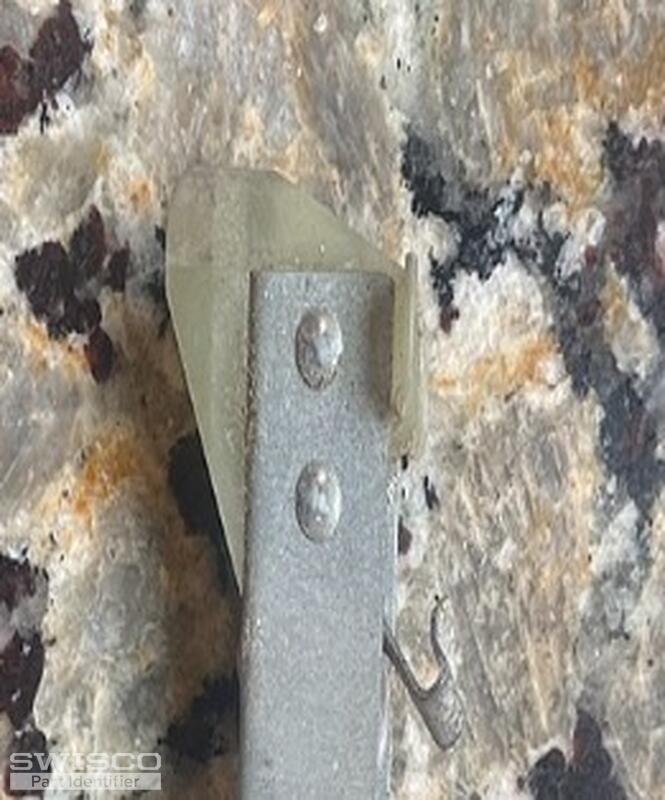

Wanting to identify the series of the replacements. I think I need four different versions for various window sizes.
3 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to locate the stamp on your metal balance channels to choose the corresponding strength options.

As for the take-out clip, see our 16-002. Thank you and let us know if you have any other questions or concerns.


Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
