Milgard - 18" Single Hung Non Tilt Channel Balance Replacement

A quick learner from California says:
May 12, 2020
Hello I need help identifying a replacement for my Milgard Single Hung Non Tilt Channel Balance.

18" channel lock.

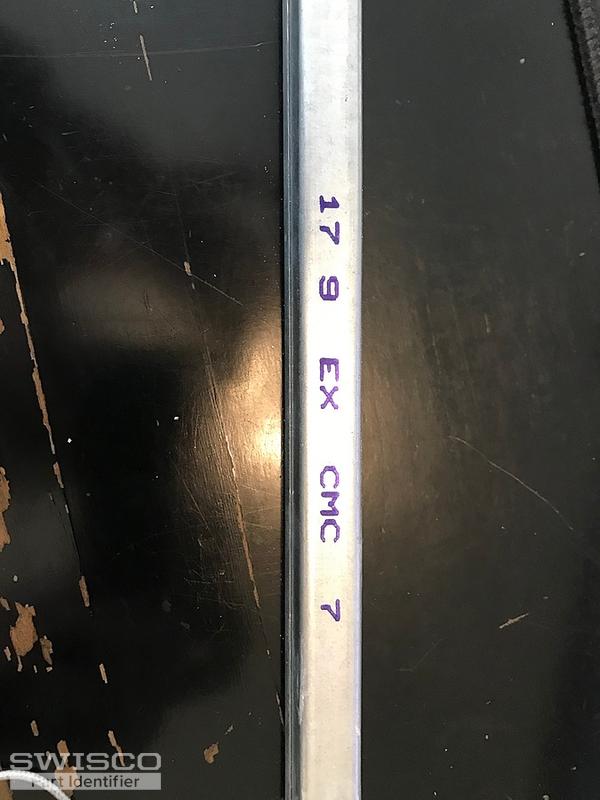

No stamp but labeled with "17 9 EX CMC 7"

- 18" channel lock
- Channel width is 1/2 inch
- channel balance shoe is 1 and 1/16 inch, or 1 and 3/32 . it's hard to tell due to wear on the part

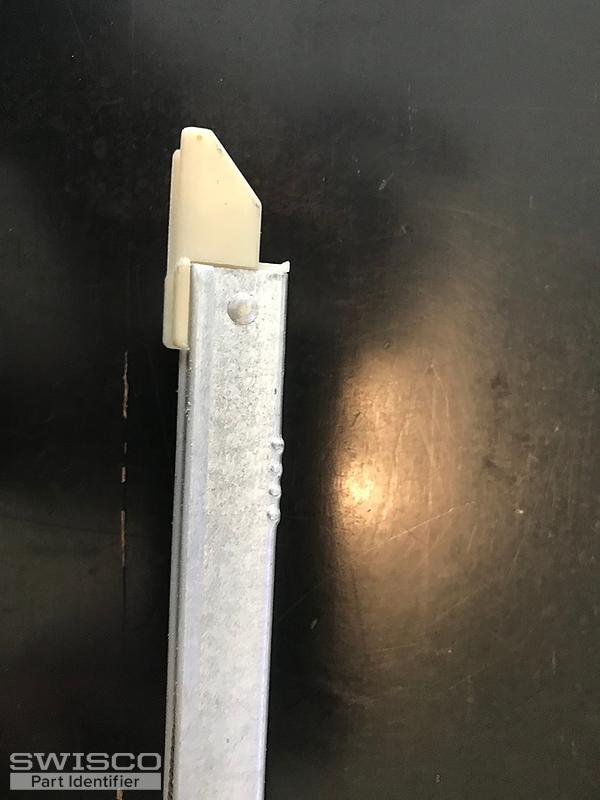

- channel balance top wings are 15/16 inch wide and 11/16 inch deep

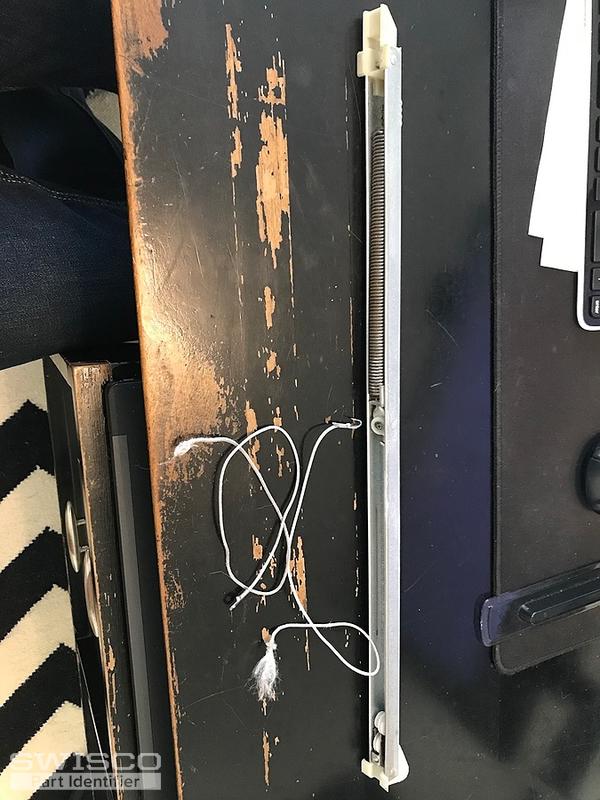

Thumbnail of the uploaded file named IMG_8767.jpeg
Thumbnail of the uploaded file named IMG_8768.jpeg
Thumbnail of the uploaded file named IMG_8770.jpeg

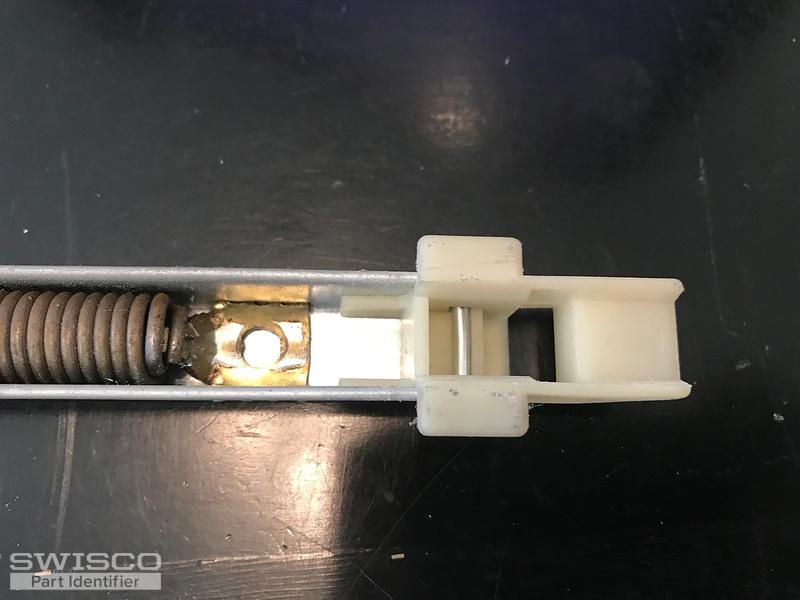

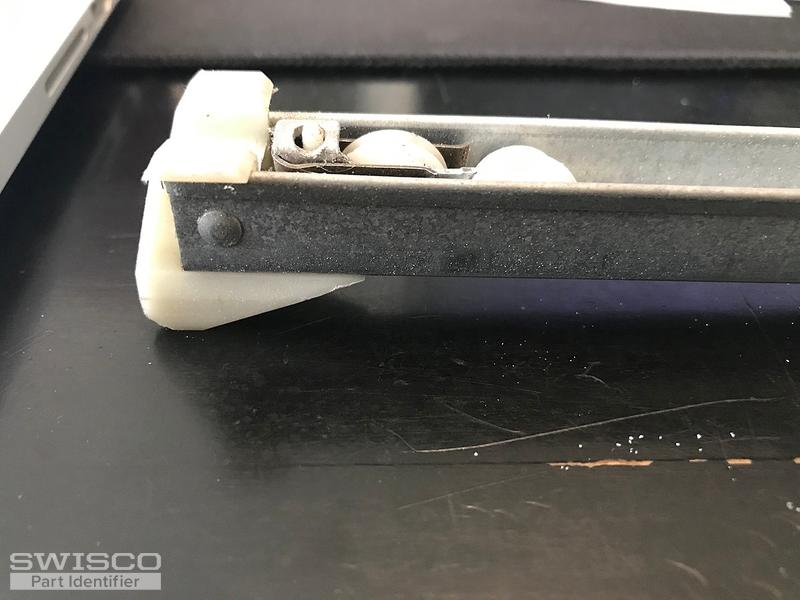

Thumbnail of the uploaded file named IMG_8773.jpeg
Thumbnail of the uploaded file named IMG_8774.jpeg
Profile picture of Bob
Bob from SWISCO responded:
May 14, 2020

This looks like either an S380-18 or S385-18. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. Your stamp code of 17-9 is from an older ratings system we do not use. To know what stamp option to select, obtain the exact weight of your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
