Milgard Replacement Handle

Question

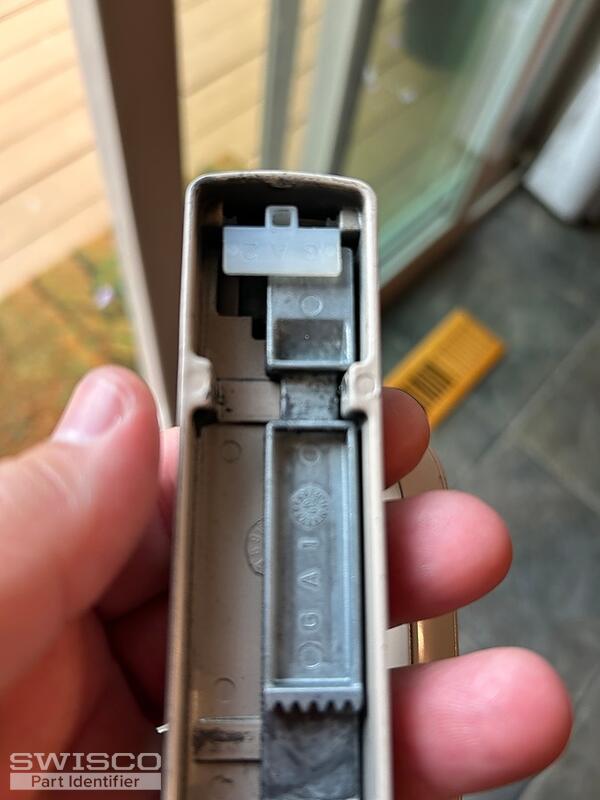

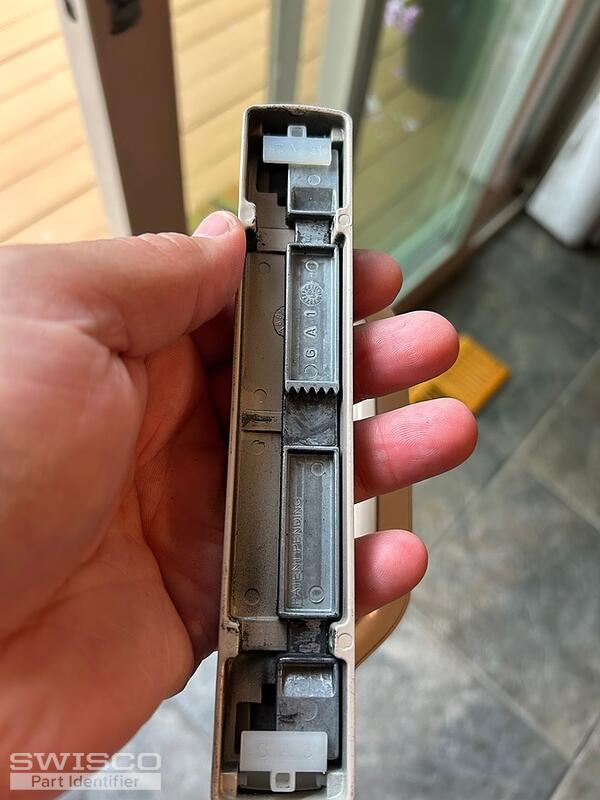

I am in need of a Milgaurd replacement handle installed by Performance Fiberglass Windows & Doors in 2011.  The handle locks and unlocks by pulling/pusing the handle.  The only numbers I see on the back side of the handle (moving components) is GA1- on the metal bracket and GA3 on the white plastic part.  There also a "patent Pending" comments on the other metal bracket.

Casey · Accepted Answer

Hello,

We do not carry a handle set that engages the mortise by pulling on the handle, but we offer the 82-080 set with similar side-mounted installation holes. Take a look and confirm if the 4-15/16" hole spacing matches your assembly. This set is also used with the 82-268B mortise lock. Thanks for posting!

Dimensions for 82-080

Dimensions for 82-268B
