Hello,
I need to replace the balancers on my Milgard windows. I removed the balancers and they measure 27" in length. The only markings on the balancer are "26 5 FU CMC 2". This is printed on the balancer and not stamped. I removed other balancers from another window and these were the only markings present. Would the 350 channel balance, part number S350-27, be an exact replacement? Please let me know as I need to order a total of 12 of these balancers. Thank you and Happy Holidays!
Milgard Window Balancer
Home Owner from 89052
Dec 20, 2020 1:18 am
6 Replies
Casey from SWISCO
Dec 21, 2020 2:20 pm
Hello, thank you for writing in. We would be happy to help you find replacement channel balances. The stamp that you indicate tells us the necessary spring strength, but we will still need to determine what series you have. In order to do this we will need to see clear images of the plastic fittings at either end of the channel. I would preferably like to see them from above with the open side of the channel, where the spring is revealed, facing up. Thanks!
Home Owner from 89052
Dec 21, 2020 9:27 pm

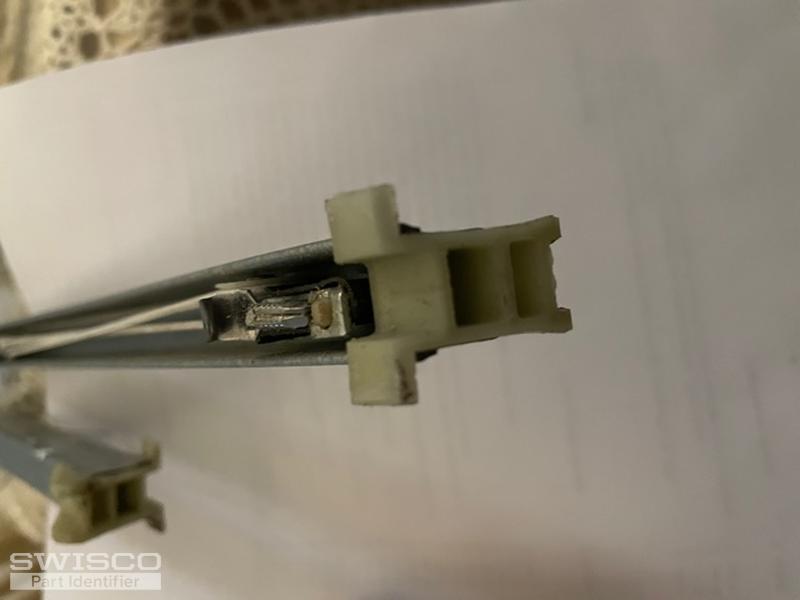

Hello, please find the photos requested. If any additional photos are needed, please let me know. Thank you for your help!
Casey from SWISCO
Dec 22, 2020 8:07 am
Thank you, these are very helpful. However, I still need to see the plastic attachment at the other end. Can you show me that, from the same perspective? Many thanks!
Home Owner from 89052
Dec 22, 2020 10:22 am
Hello,
Please find the requested photos attached. Sorry for the inconvenience and I appreciate your help!
Please find the requested photos attached. Sorry for the inconvenience and I appreciate your help!
4 user uploaded images
Casey from SWISCO
Dec 22, 2020 10:54 am
Perfect! It looks like you could have either our S380-27 or S385-27 with the 2650 stamp option. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.
Comparison of the S378, S380 and S385 balance shoes.
