27" Series 350 Channel Balance

Product Code: S350-27

27" Series 350 Channel Balance
$10.77/each
Quantity Price
1-11 $10.77
12-49 $9.69
50-99 $9.15
100-249 $8.62
250+ $8.08
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 350 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 27" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-002 top and 15-004 (1-3/32" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
2610 5 to 9 lbs
2620 9 to 13 lbs
2630 13 to 19 lbs
2640 19 to 26 lbs
2650 26 to 30 lbs
2660 30 to 33 lbs
2665 33 to 36 lbs
2670 36 to 39 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Guides
  • How to replace a non-tilt channel balance
  • Choosing a Non-tilt Channel Balance: What Will We Need?
    • Related Videos
    Related Item(s)
    15-004
    $0.74
    Winged Channel Balance Shoe, 1-3/32" Depth
    16-002
    $0.41
    Take Out Clip
    18-110
    $1.70
    Top Sash Guide, SeasonAll
    19-002
    $0.74
    Channel Balance Top Guide
    Customer Questions & Answers
    Discussion Posts Last Post Date

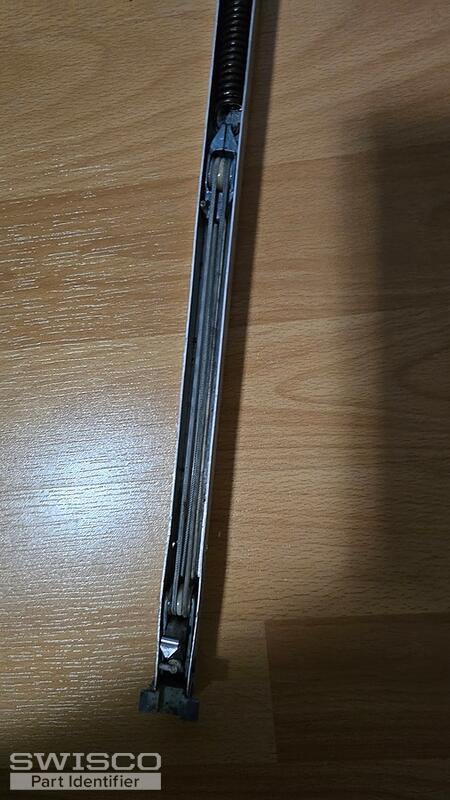

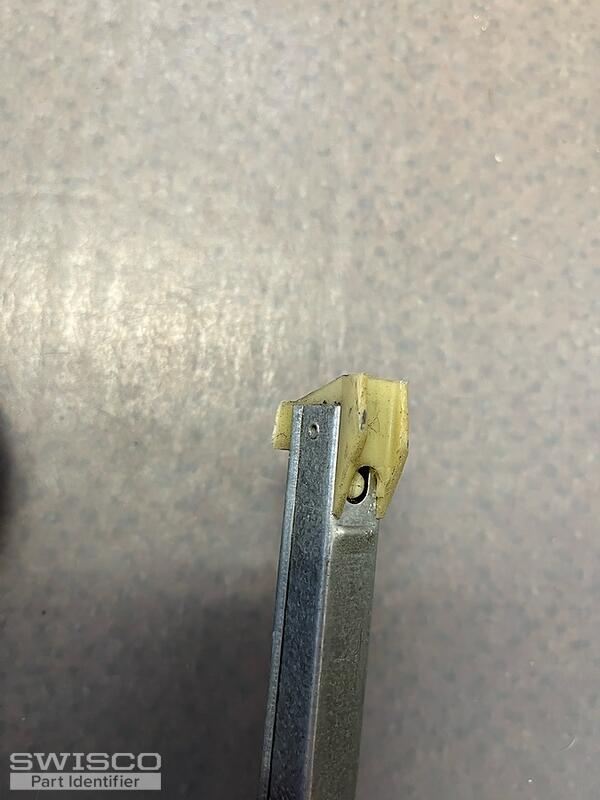

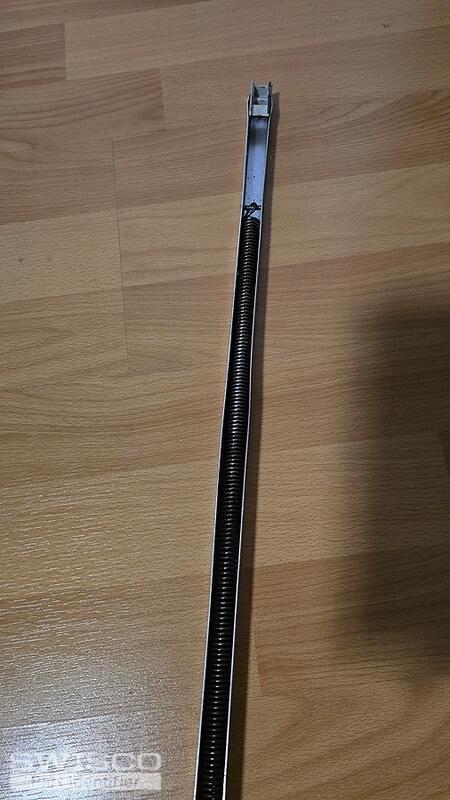

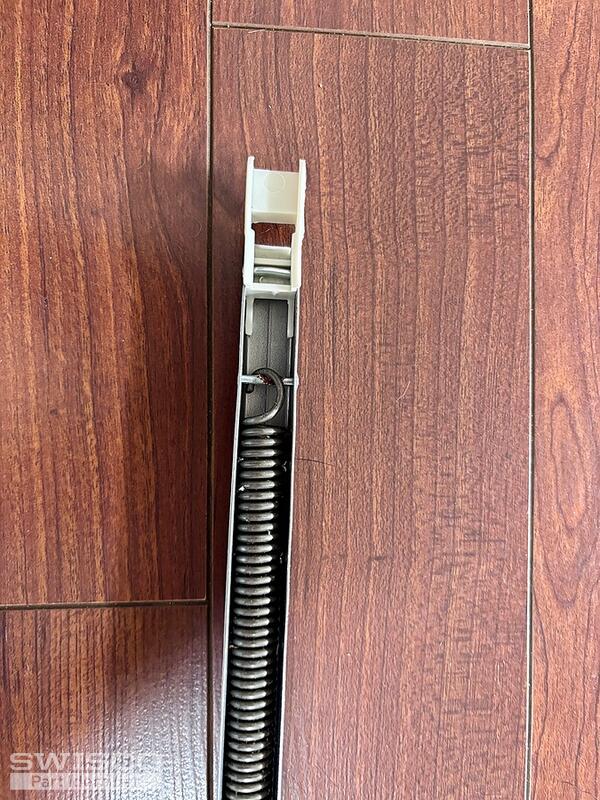

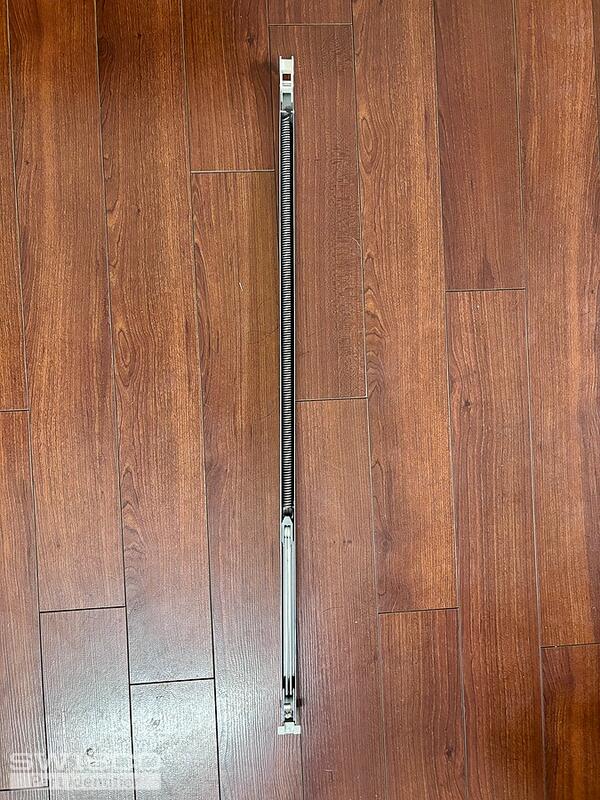

    Need to Identify a Window Balance
         		This discussion includes image(s). 4 Nov 21, 2023

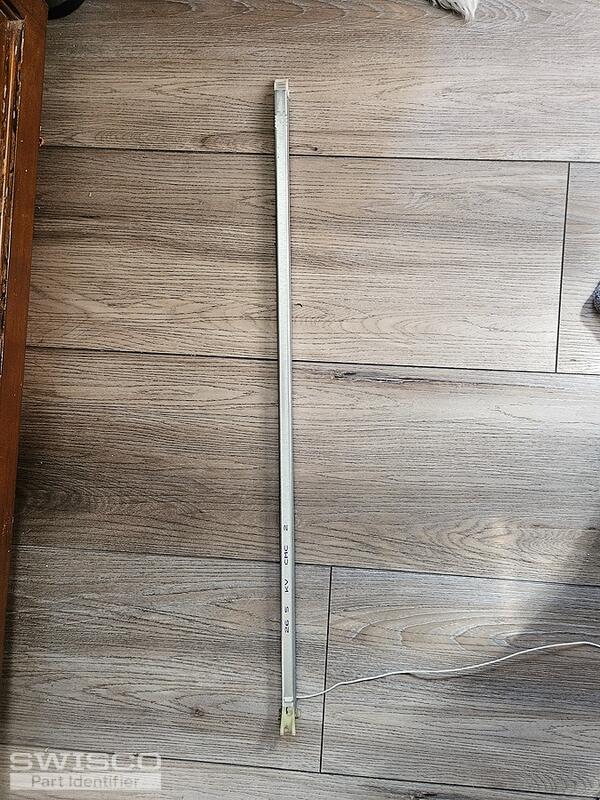

    window Block & tackle balance
         		This discussion includes image(s). 2 Apr 22, 2023

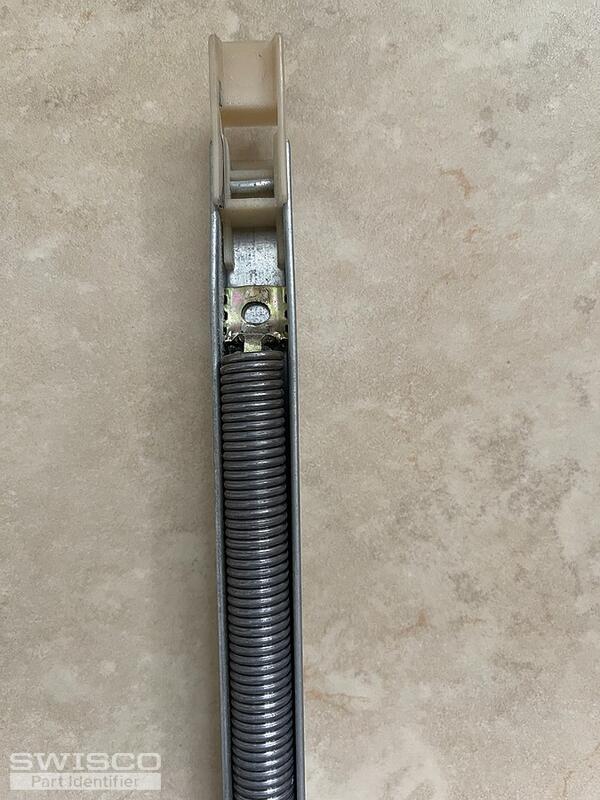

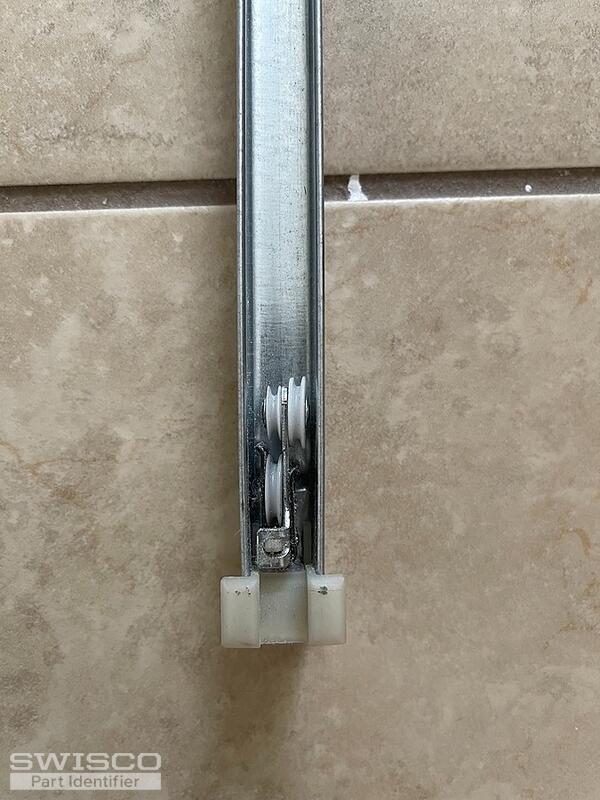

    Channel Balancer
         		This discussion includes image(s). 2 Sep 10, 2022

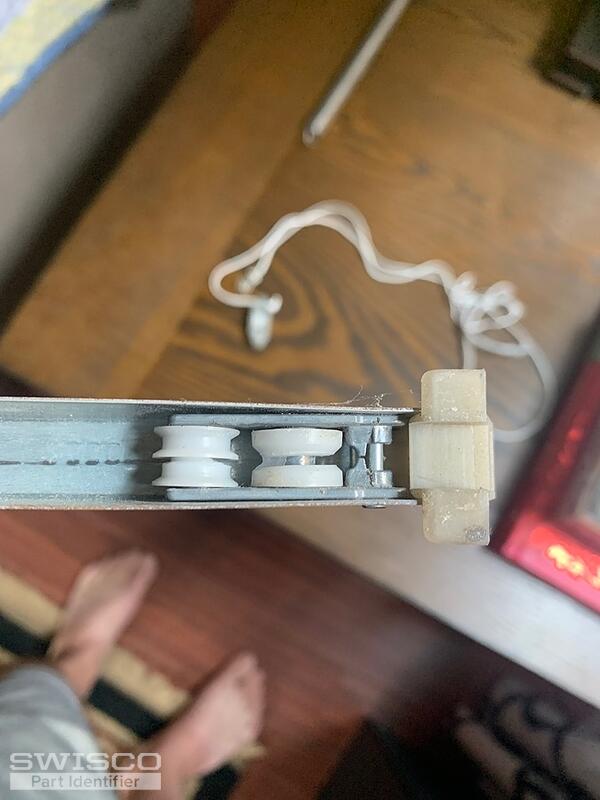

    26-3, 1/2" wide non tilt balance
         		This discussion includes image(s). 2 Aug 1, 2022

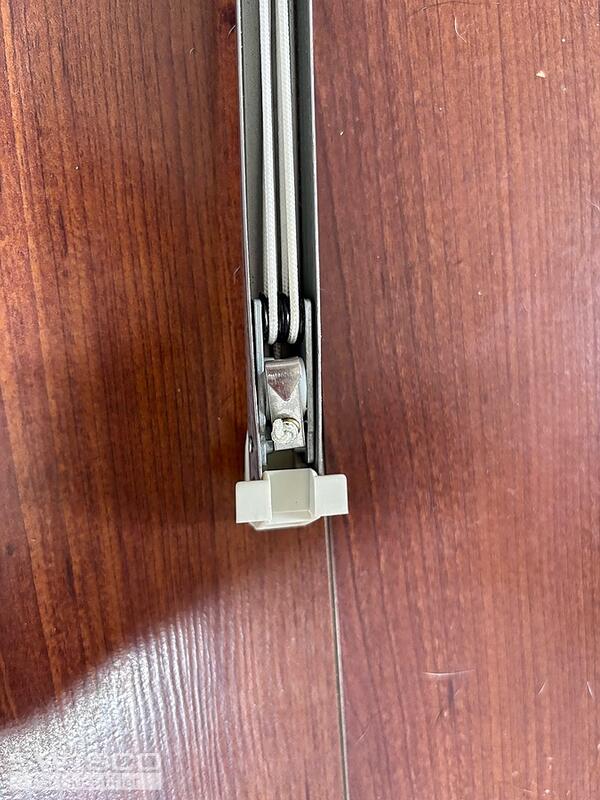

    Channel Balance replacement
