Milgard Window Balancer replacement

Handy Person from Peoria AZ
We have a milgard window and I need to replace the balancer.

I have a part number ... 20-5 JX CMC 7

Do you carry the replacement for this?
8 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello, thank you for writing in! We would be happy to help you find replacement channel balances. The stamp that you indicate tells us the necessary spring strength, but we will still need to determine what series you have. In order to do this we will need to see clear images of the plastic fittings at either end of the channel. I would preferably like to see them from above with the open side of the channel, where the spring is revealed, facing up. Thanks!

Handy Person from Peoria AZ

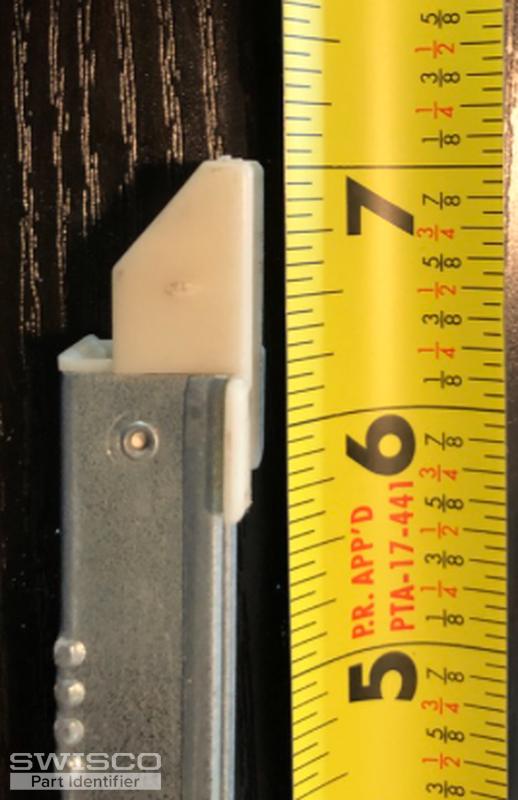

Here are some photos.

Does this help in determining if you have what I need to repair the window?

Thanks

Bill

4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

This is perfect, thank you! It looks like you could have either our S380-21 or S385-21 with the 2050 stamp option. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Handy Person from Peoria AZ

Hi.

It is the S385-21.

How much are they? and how quickly can I get one delivered?

Thanks!

Bill

Casey
Casey from SWISCO
SWISCO
Expert

Hi Bill. All the pricing information can be found on the product page. The delivery time will depend on your location and the shipping method you select. You can calculate this on the website, when you go to check out. You will just enter your zip code and it will provide you with your shipping options. If you need assistance navigating the site, you can reach our customer service at 856-317-6263.

Handy Person from Peoria AZ
one more question ...

my piece is stamped 20-5 JX CMC 7

Is that the same as the 2050 option on your website?
Casey
Casey from SWISCO
SWISCO
Expert

Yes, that would be the equivalent for the 2050 stamp.
