Milgard Window Replacement Parts Help Needed - Channel Balances

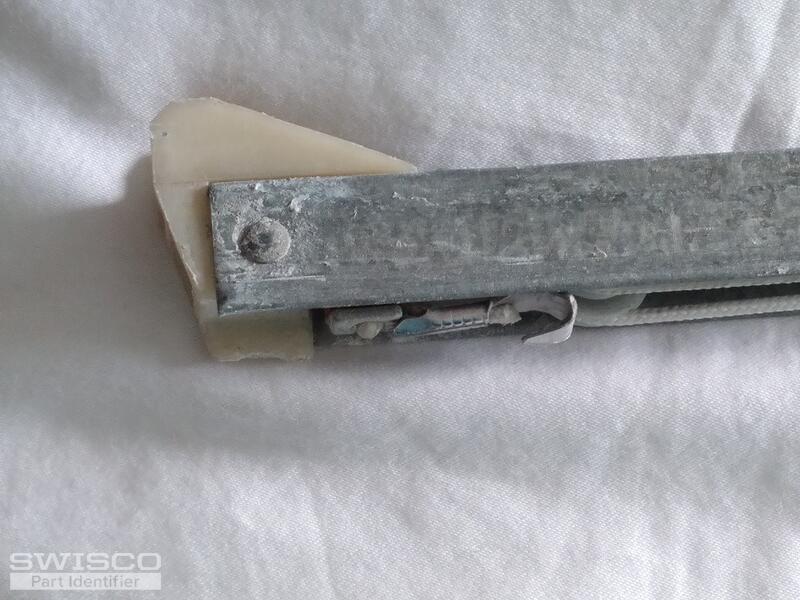

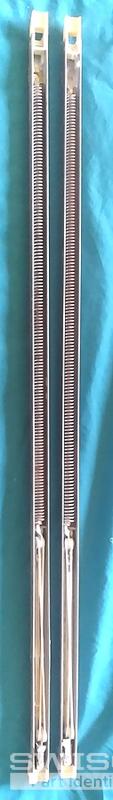

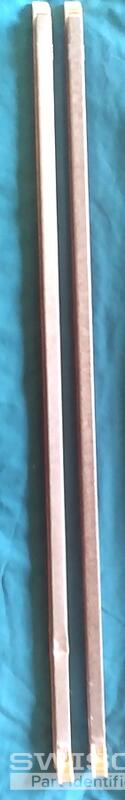

Thanks for writing in! Were the tabs broken off of the balance on the right? It is a bit difficult to determine the correct balances based on the photos of the balances. I'll need to see a closer photo of the bottom shoes to determine the correct series.

In regard to the notch and clip, are you referring to the metal take out clip? If so, I believe you may be searching for part 16-002.

Alternate image for 16-002

We do not carry an exact match for the type of top sash guide you are searching for as your isn't made anymore, however, our 18-009 might be worth considering as a replacement.

You will need to trim down the edges from the top of the guide to install them. So please be aware that any altered parts are non-returnable. Take a look at the measurements and see what you think.

Detail of 18-009

Side view of 18-009

You are correct. That is another versions of this top sash guide that we do recommend as a replacement for the one you have. Again, be sure to look over to measurements to confirm which of them might be a replacement.

Alternate view of 18-188

Alternate view of 18-188

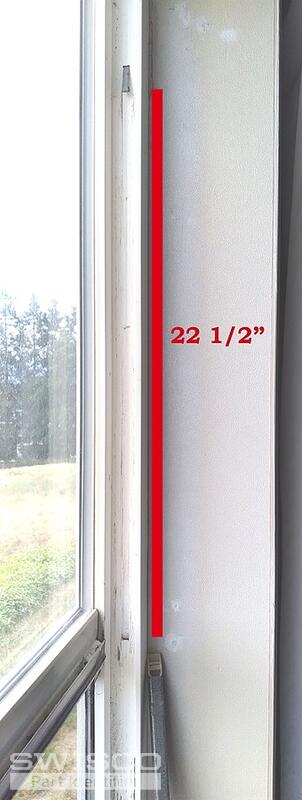

The length of the balance will depend on the metal channel of the balance, so you'll need to confirm the length. Since your balance is stamped with a 2760,it is likely you'll need a 28" channel balance. Although, there could be a chance that they are an older style balance so it could be 27". The only way to know for sure is to confirm the measurement.

I hope this helps!

If the length of the balance is 27", you'll need the 27" channel balance. You'll need the 2660 stamp for this balance. The 2760 stamp can support a sash weighing 30 to 33lbs, so the 2660 will work fine as a replacement since it supports the same.
