Milgard channel balance replacement

Question

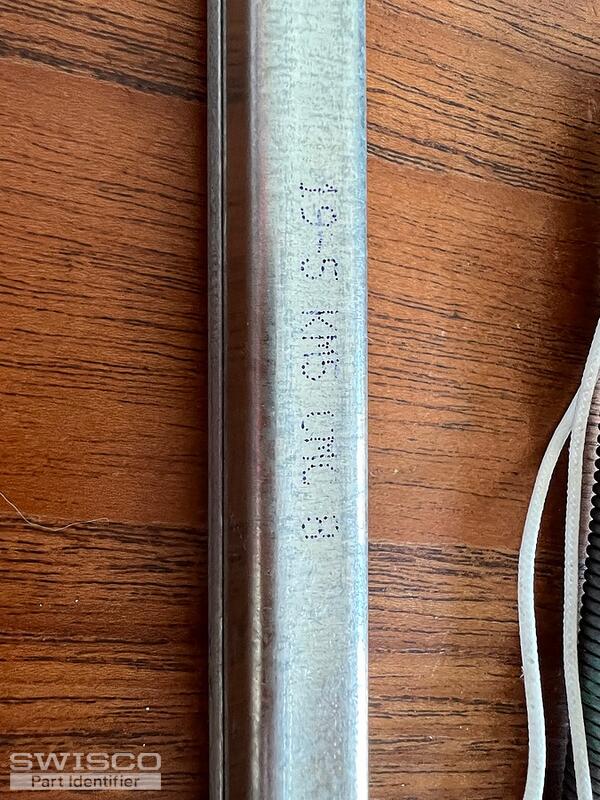

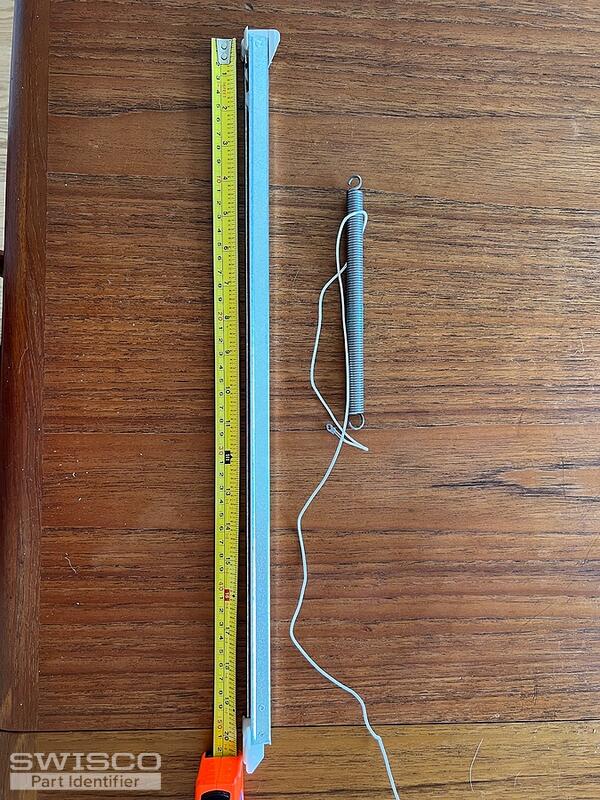

Hi, this is from a Milgard single-hung fiberglass window. I'm guessing it's a 20" S385-20, but i'd like a second opinion. Thanks!

Casey · Accepted Answer

Hello,

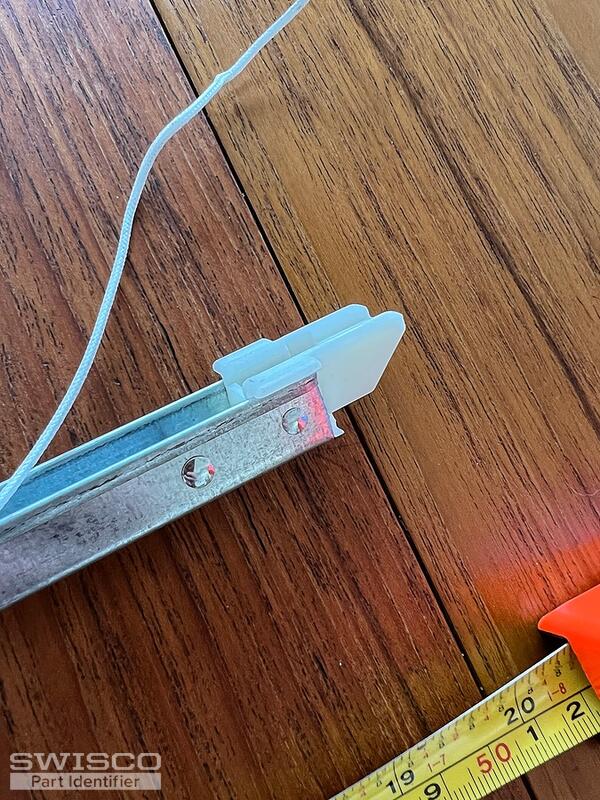

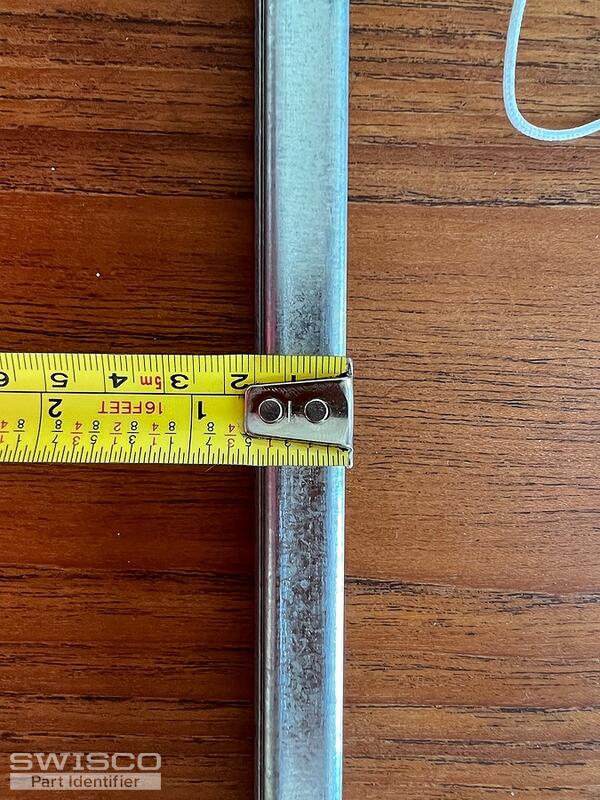

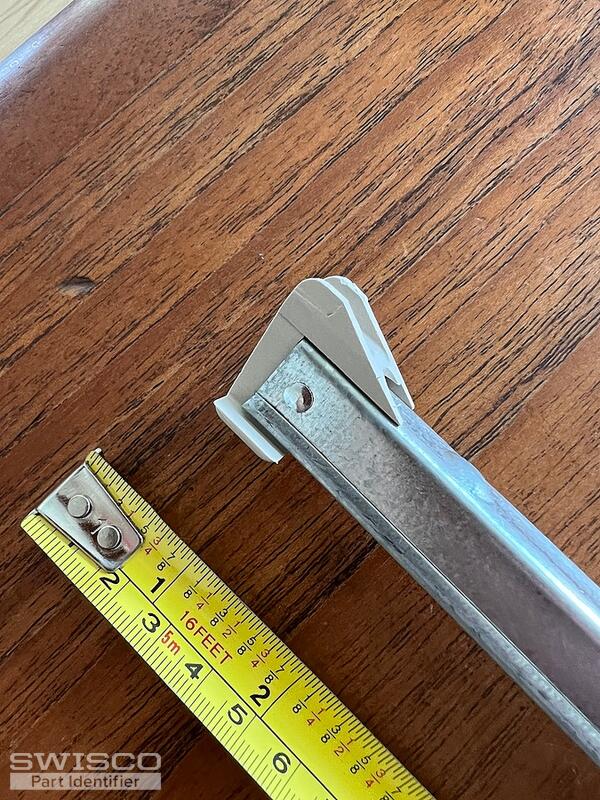

With this combination of attachments, you could have either an S380-20 or S385-20 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1950 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
