Milgard channel balancer replacement part

A quick learner from Bellevue, WA says:
August 2, 2022

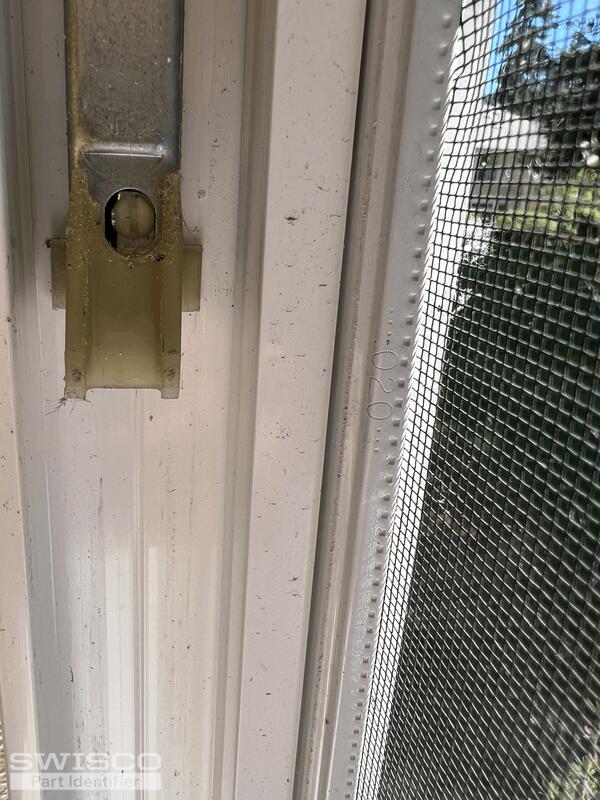

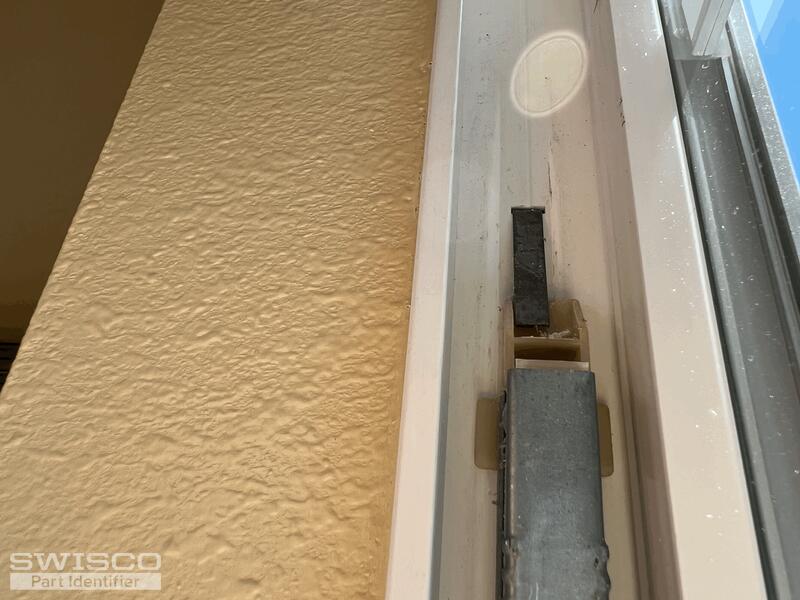

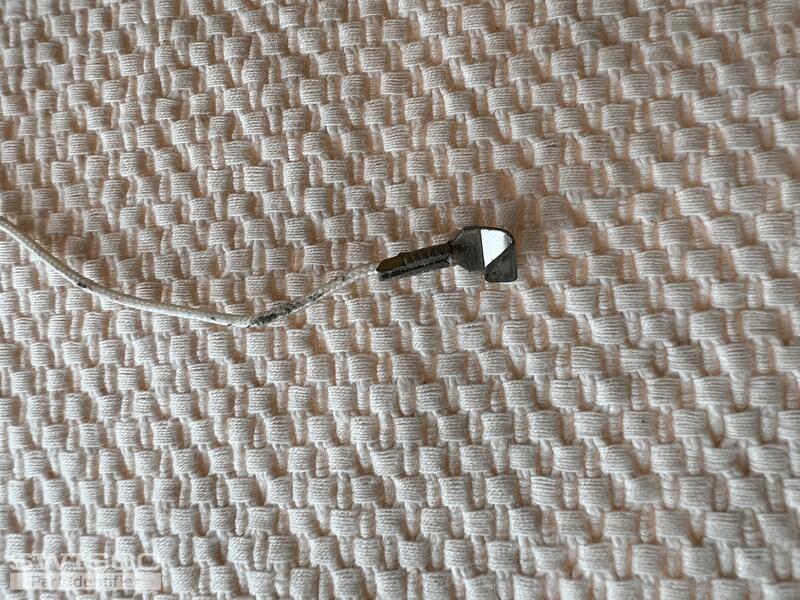

21" channel balance for Milguard non-tilt window. The string of one of the balancer broke. I would like to replace both of them.

I replaced one of the similar window channel balancers before.
Thumbnail of the uploaded file named tempImageb3DsG2.gif
Thumbnail of the uploaded file named tempImageoJFegc.gif
Thumbnail of the uploaded file named tempImagewLgf3O.gif
Thumbnail of the uploaded file named tempImagexyTqOy.gif
Thumbnail of the uploaded file named tempImagegqlrT0.gif
Profile picture of Emily
Emily from SWISCO responded:
August 8, 2022

Hello there!

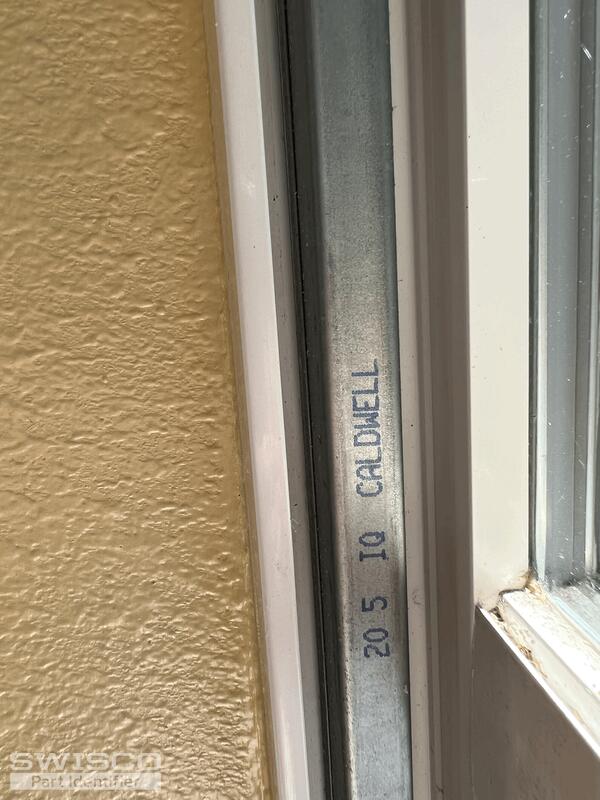

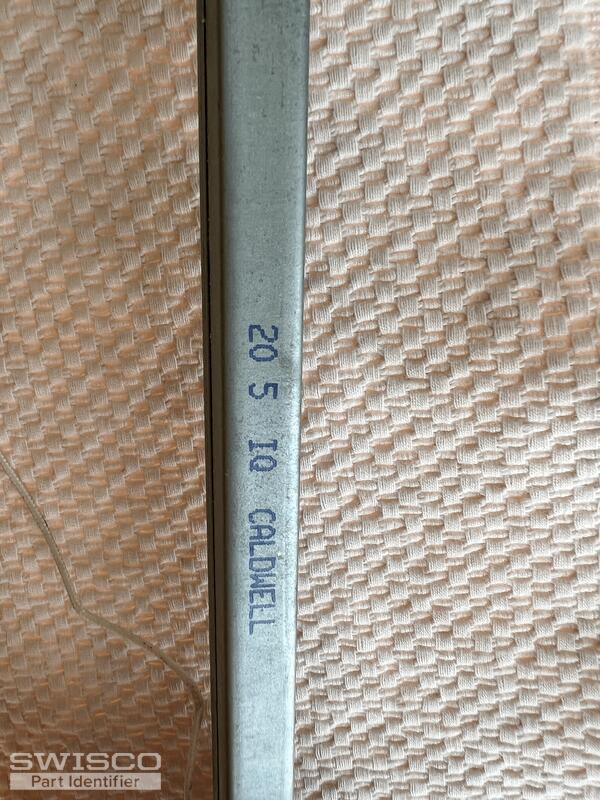

We appreciate your patience during this busy summer. I recommend our S380-21 or S385-21 channel balance, depending on the depth of the bottom shoe. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. Measure as shown in the image below to determine the best match. You will also need the 2050 strength option, based on your 20 5 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
21" Series 380 Channel Balance
21" Series 380 Channel Balance
S380-21
$9.38
21" Series 385 Channel Balance
21" Series 385 Channel Balance
S385-21
$9.38
