Milgard channel balances, sash guides and little black spacer/glides

Home Owner from San Clemente, Ca
I'm fixing 12 Milgard vertical sliders, 11 are 30"L x 34"W (18.2 lbs.) and 1 is 30"L x 22"W.
The smaller window has 2630V stamped on the channel balance. I did not see a number on the channel balance for the larger sliders but the style is the same. I will look tonight on the balances on another window.
I tried to upload pictures but wasn't able to. Maybe you can email me and I will email them to you.
I will need channel balance's for all 12 windows and sash glides (the ones I put in the shopping cart I think are wrong).

There are also some the little black u shaped pieces of plastic that are on the edge of the window frame, each window has 4 of them.

I just want to make sure I', ordering the correct hardware.
Brad
5 Replies
Paul
Paul from SWISCO
SWISCO
Expert

I am sorry to hear that you are having trouble uploading photos to us. You can email your photos to help@swisco.com. Just be sure to include your reference number in your email, D149811.

Home Owner from San Clemente, Ca

I'm pretty sure I have the right parts I just would like to have you review my pictures and confirm.

In my cart I have 2- S351 2630V, 22- S351-27 2640V, 24- 5/8" Top Sash guides & 125' of 58-021 Gray wool pile 3/16" x 3/16" with plastic fin.

The channel balances have 2630V & 2640V stamped on them.

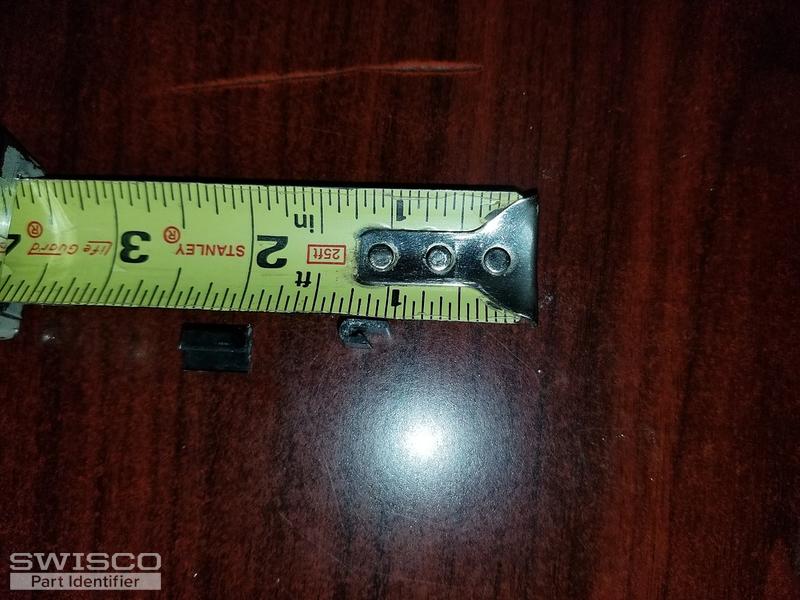

One part I cannot find on your website is a little black U shaped clip that is a spacer/glide that clips on the window (pictures attached).

Let me know if you can identify the little black part and if everything else looks right.

Thanks Brad

5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

I can't really tell the depth of your shoe from that photo, but as long as its 1" then the Series 351 should be a great option. If it's more than 1", though, then you want our Series 390.

I also don't know what your wool pile would be. You'll have to measure yours as carefully as you can to confirm that the 58-021 is a match.

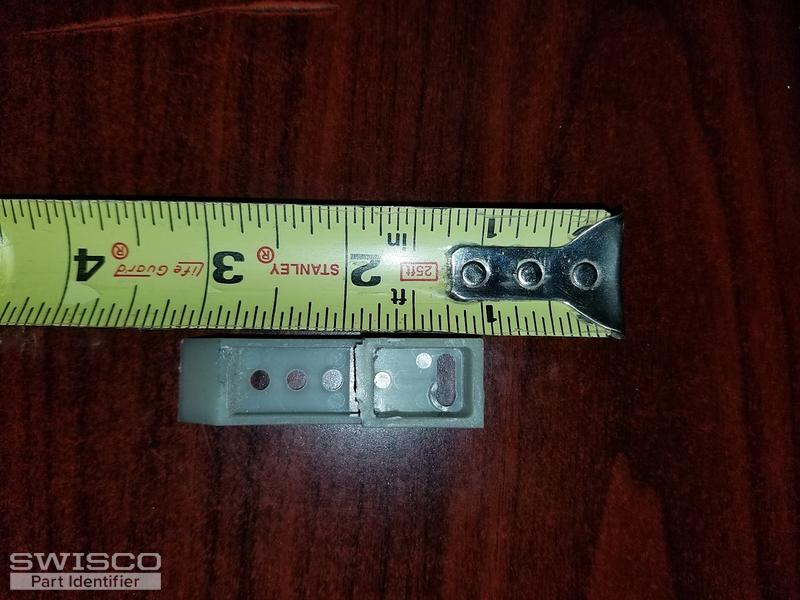

The top sash guide, at least, is definitely our 18-008H.

I've seen that little J clip a few times in the past. I've never been able to track down a good replacement for it, though. I'm afraid it's not something we can supply at this time.

Home Owner from San Clemente, Ca
Ok, thank you
