Milgard window operator replacement

Quick Learner from Hawaii

Jul 6, 2022 5:21 pm

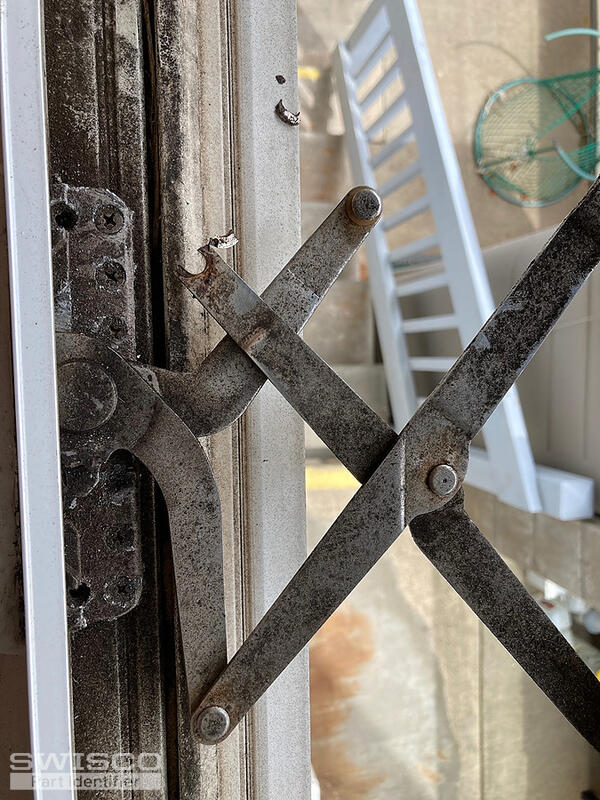

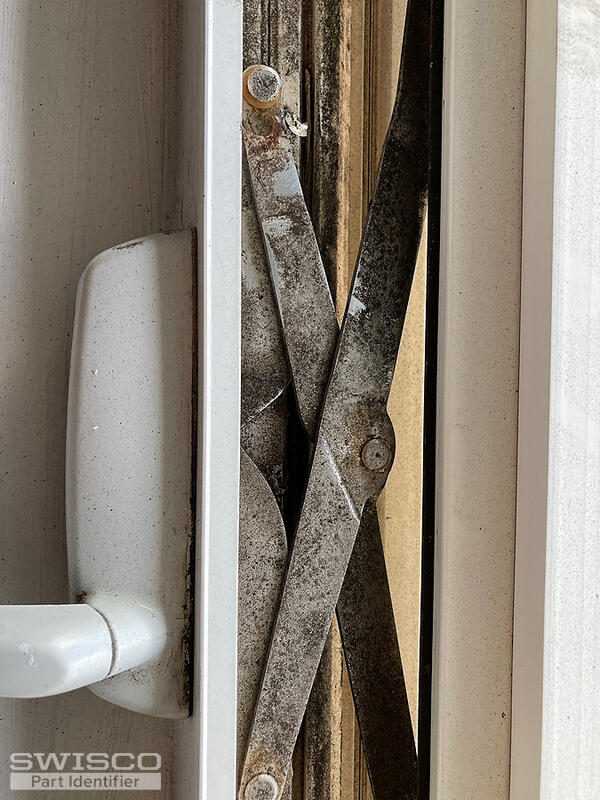

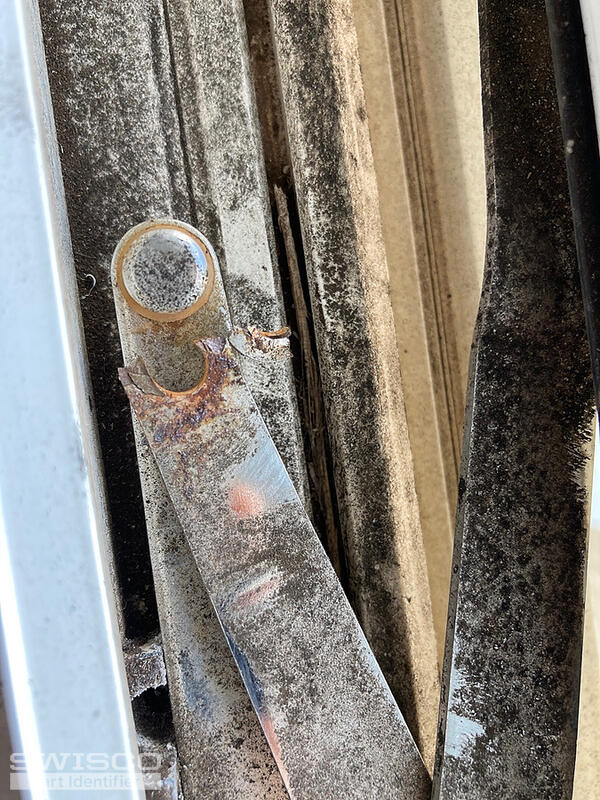

I need to replace my window operator but not sure of the correct part number needed. Please see pics. I was on the Swisco website and found possible replacement parts:
39-239B or 39-239C. These windows were installed in 2004

Please advise.

Mahalo.
Russ

3 user uploaded images

4 Replies

Tom from SWISCO

Jul 11, 2022 1:27 pm

Hello, Russ! I agree, you could use either our 39-239B or 39-239C, depending on whether you want stainless steel or not.

I also recommend the 39-451 cover/handle assembly if you cannot reuse your originals.

Quick Learner from Hawaii

Jul 18, 2022 7:53 pm

Thanks for the confirming the correct part number. I received the SS replacement window operator ( 39-239C) today. I removed the broken operator and replaced with the replacement with no problems. I was trying to remove the cover from the original operator, but looks like the cover is part of the operator thus unable to remove the original cover. How do you remove the operator cover from the operator? I could remove the handle with no problems.

Mahalo.

Tom from SWISCO

Jul 19, 2022 8:23 am

It's likely that your old cover cannot be removed, as you surmised. For some older operators, the cover is permanently affixed to the base and cannot be removed in any way. That's why I suggested the 39-451, just in case.
