Milguard Tuscany casement replacement parts

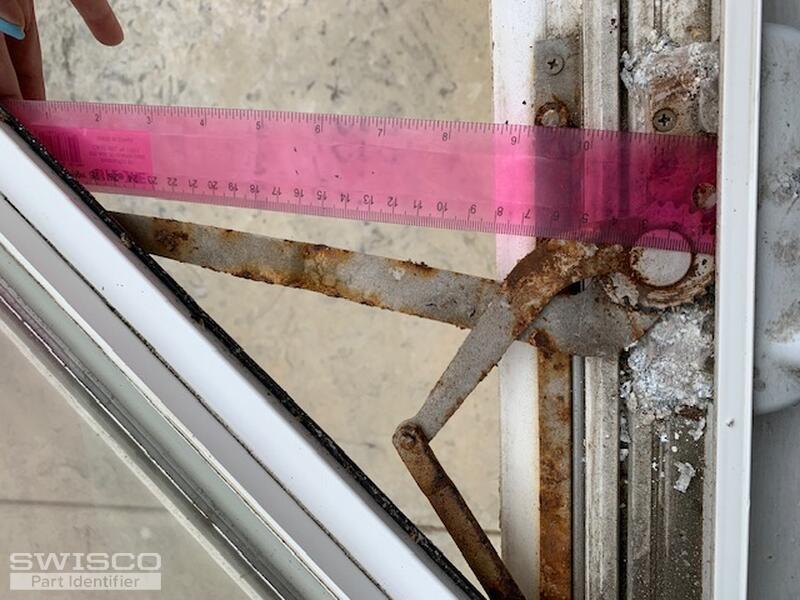

Thanks for posting! Your casement operator resembles two different operators in our inventory. So the good new is that we can provide you with the replacement you need. It looks like you have either the 39-253RB or the 39-439B.

To narrow down which operator you will need for your window, you will need to confirm some details about your operator. Take a look at the video below for instructions on the details you'll need to confirm to determine the correct replacement for your hardware.

These operators are compatible with the 39-376 folding and 39-452 non-folding handle and cover kits. I've also included links for the opposite handed version of each part.

Once you've confirmed the operator there are other specific items that are shown in the related items that you may need depending on the operator. If there is anything you are unsure about, please don't hesitate to reach out.

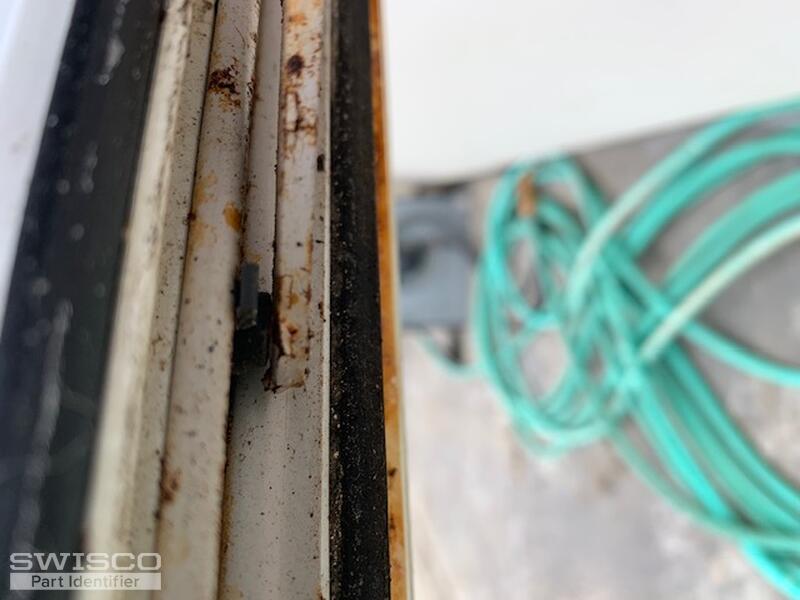

Its a bit difficult to see the part you have but it looks like it could be the 39-529, which is typically used with the 39-253LB and 39-253RB however it is hard tell if the part is broken, so I cannot confirm with absolute certainty. You'll need to remove the part and compare them to those shown on the video; it gives a very detailed explanation of how to determine which operator you need.

Dimensions for 39-253RB

Dimensions for 39-439B

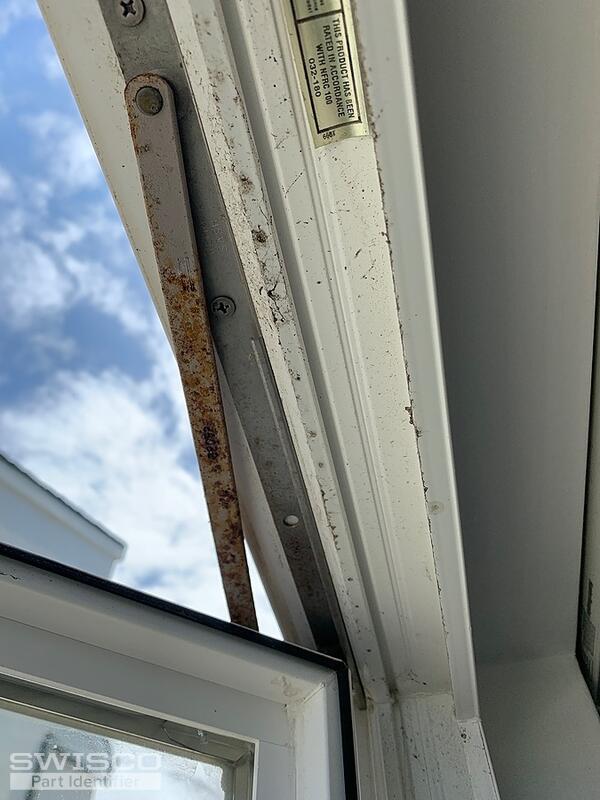

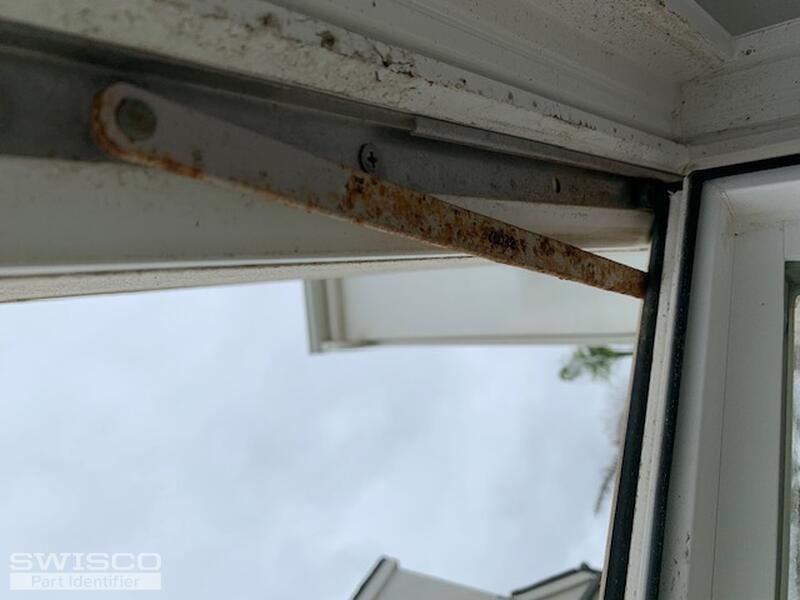

In regard to the hinges, I recommend starting with reviewing the 36-004-14. Since your base appears to be quite long, I recommend starting with comparing the dimensions from your hinge to those shown on the diagram below to determine if this might be the best fit.

Dimensions for 36-004-14
