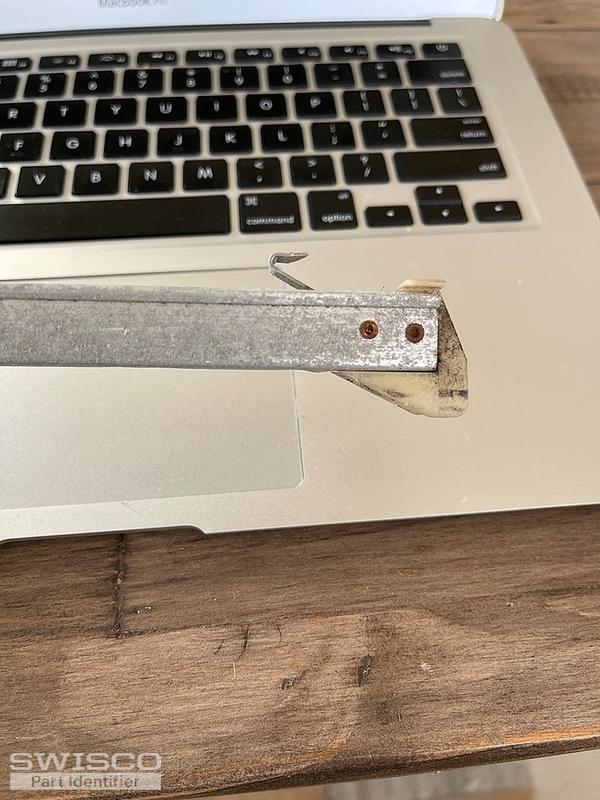

Hello, I am looking to replace the sash balance on one of my Milgard windows.. The metal portion is 21" long x 1/2" wide and marked 2040.
Kind Regards,
Mike
Millard 2040 Sash Balance Replacement
Quick Learner from Torrance, CA
Nov 28, 2020 5:47 pm
5 user uploaded images
5 Replies
Casey from SWISCO
Dec 2, 2020 10:18 am

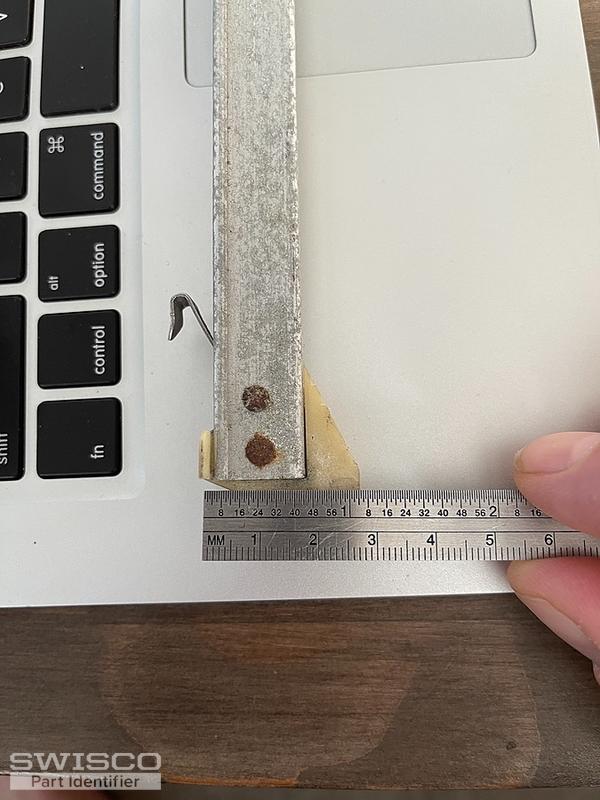

Hello, thanks for posting! It looks like you could have either our S380-21 or S385-21 with the 2040 stamp option. The difference between the Series 380 and the Series 385 lies in the depth of the shoe. Take a look at the picture below for more detail. Once you have determined this dimension you should be able to select the appropriate balance.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Torrance, CA
Dec 2, 2020 12:46 pm

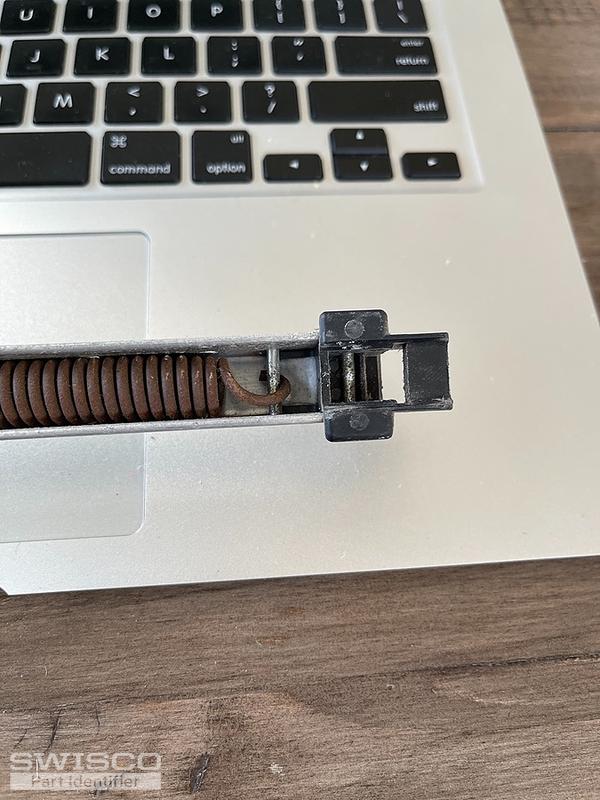

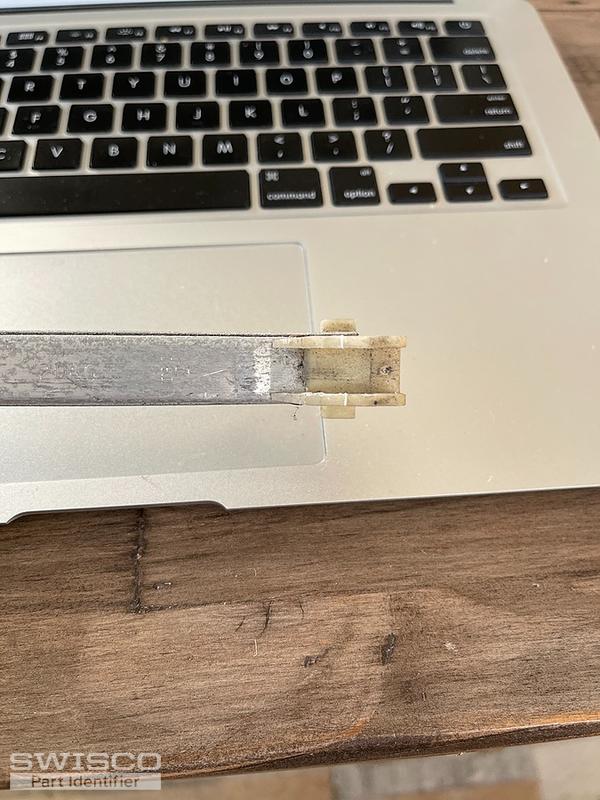

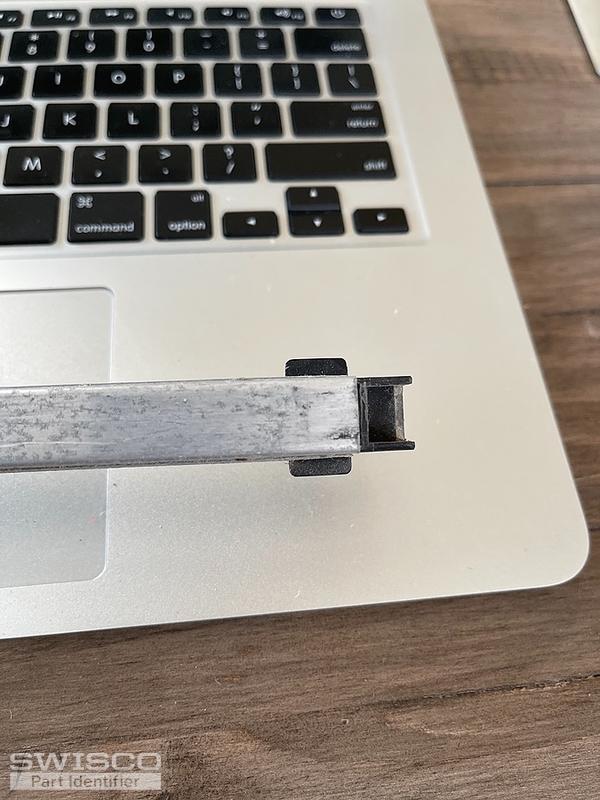

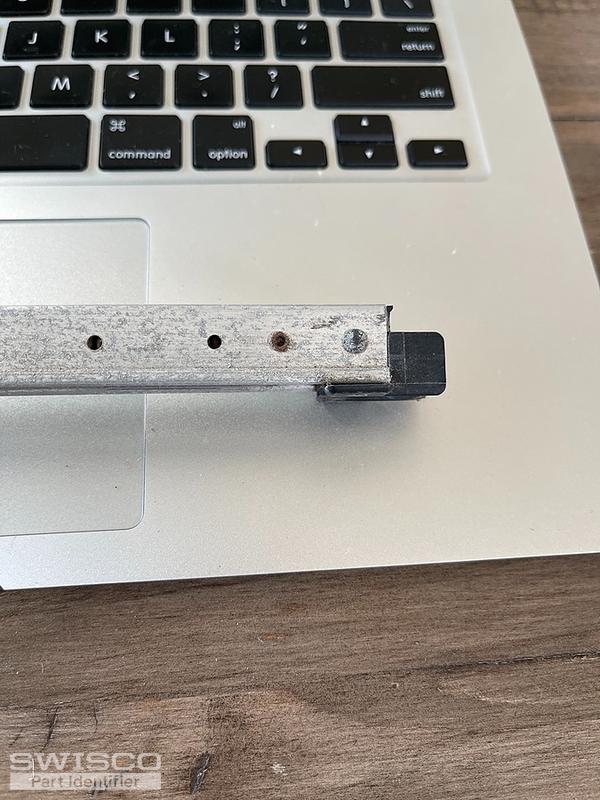

Thank you for the response. My concern is the end which has black plastic shoe on it. I don't see any options that look like the one I have.
3 user uploaded images
Casey from SWISCO
Dec 2, 2020 1:07 pm
You do have an older style top fitting, but the 19-005 top that comes with both the Series 380 and Series 385 works perfectly well to replace it!
Quick Learner from Torrance, CA
Dec 2, 2020 4:55 pm
I went with the Series 385.
1 user uploaded image
