Missing Sash Balances

Question

Hello,

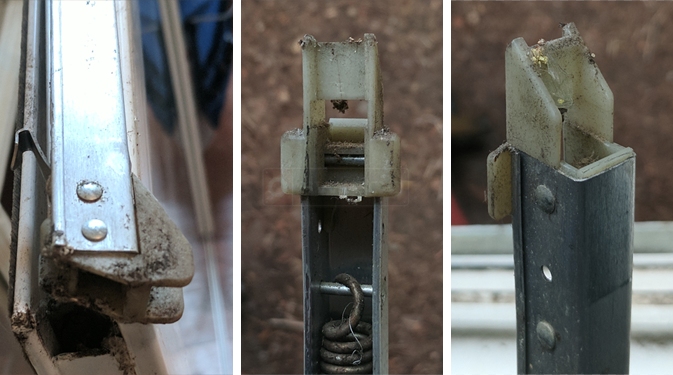

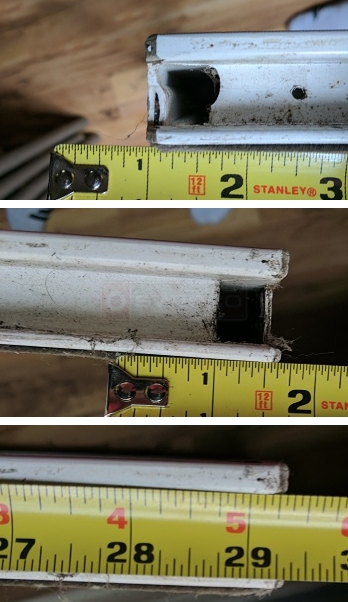

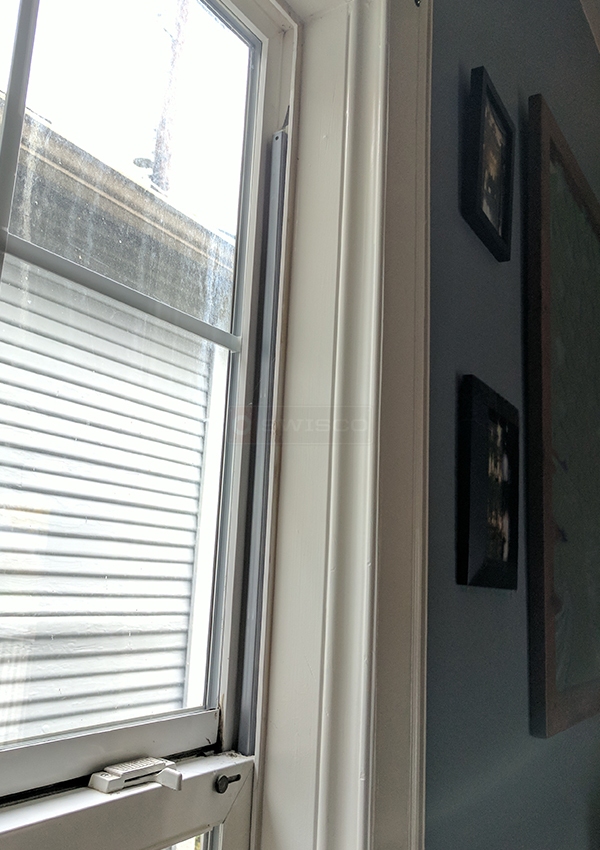

I'm at a loss here. I have a Viking window that is completely missing its sash balances, so I'm not sure what to replace them with. I have a similar viking window, but the sash balances in that one are too short for the window that's missing its balances. You can see the measurements in the pics. Any ideas for what replacement balances to use?

Thanks,
Mike

Tom · Accepted Answer

Viking windows have been known to use our Series 395 channel balance in the bast, but there is no guarantee that these will work for you. One of the most important factors is the nylon caps on either end of the channel. The Series 395 balance comes with a 19-005 top and 15-001 bottom. Look at the other, shorter balances you mentioned and see if they have the 19-005 and 15-001, as well. If they do then I think this is the way to go.

That's the Series taken care of, but what about the size and spring strength? Well, this will take a little homework. I will need the height of the visible glass of the sash being supported, as well as the weight of that same sash. With that information, I can calculate the proper length and spring strength.
