Morgan Sliding Door Handle Replacement
Home Owner from California
Jul 23, 2024 8:48 am

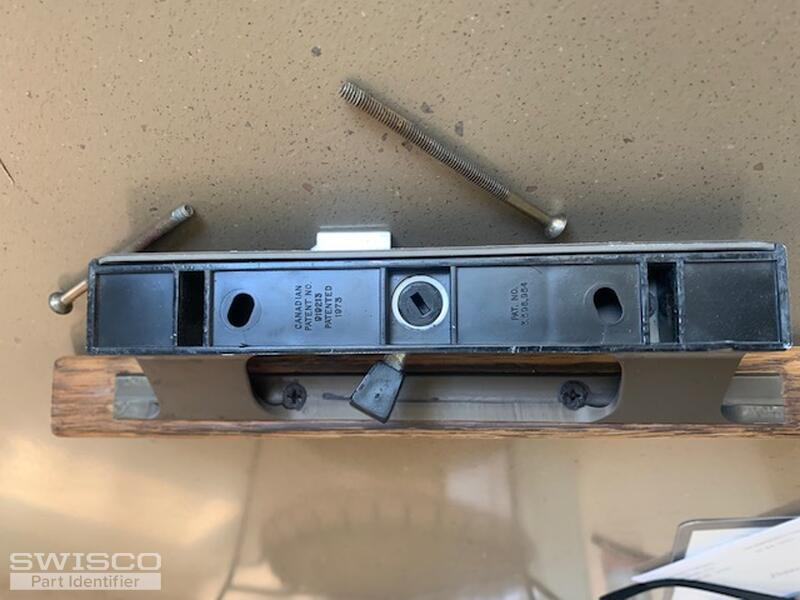

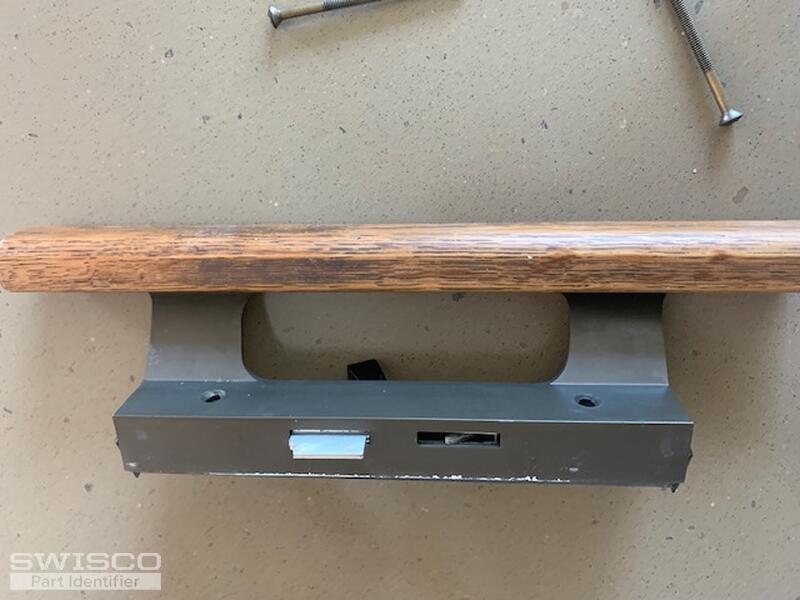

The exterior handle is broken. The door is a Morgan M-86-I 8 Foot Slider purchased in 1994. Is there a replacement handle set that will work on this door?
5 user uploaded images
4 Replies
Casey from SWISCO
Jul 24, 2024 2:31 pm
Hello,
If the exterior handle is the only broken part, take a look at the 82-042 or keyed 82-306 replacement options. We also offer the 82-005 surface-mounted handle set. Take a look and compare the specifications of these parts to yours as well as review the related videos to assist you. Thanks for posting!
Hole center dimensions for 82-306
Alternate view of 82-306
Home Owner from California
Jul 25, 2024 12:22 pm
Thanks for the suggestions.
The 82-306 seems close, but he 5 7/8 dimension needs to be 5 5/8.
Any suggestions?
Thank you.
The 82-306 seems close, but he 5 7/8 dimension needs to be 5 5/8.
Any suggestions?
Thank you.
Casey from SWISCO
Jul 25, 2024 1:28 pm
The 82-306 handle does accept 5-5/8" installation holes as shown below. Just let us know if you have any other questions or concerns.
Hole center dimensions for 82-306
