Multi Point mortise lock for PGT SGD

Quick Learner from USA

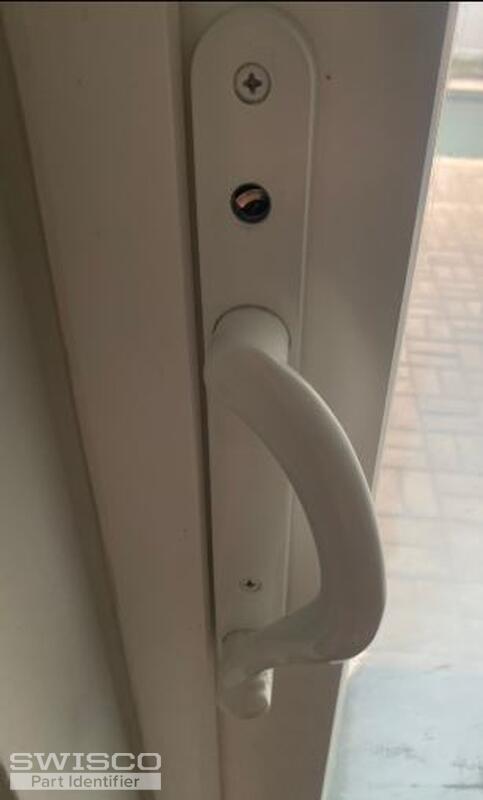

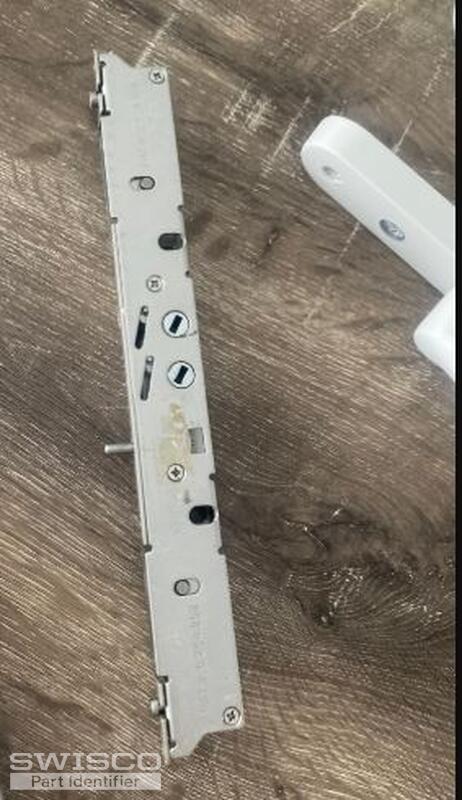

Good afternoon, I originally spoke with CS on the phone in regarding a locking assembly and handle for my pgt sgd. please attached photos of parts needed.   Thank you! Measurement seems to be 11 inches
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like your mortise lock is designed to use a faceplate for installation. If so, take a look and compare the specifications of the 82-265 to yours.

Alternate image for 82-265
Alternate image for 82-265

We also offer the 82-093 handle set that is a similar style to yours but the dimensions would be the determining factor. The 11-15/16" hole spacing is especially important. Take a look and see what you think.

Additional dimensions for 82-093
Additional dimensions for 82-093

Dimensions for 82-093
Dimensions for 82-093

Home Owner

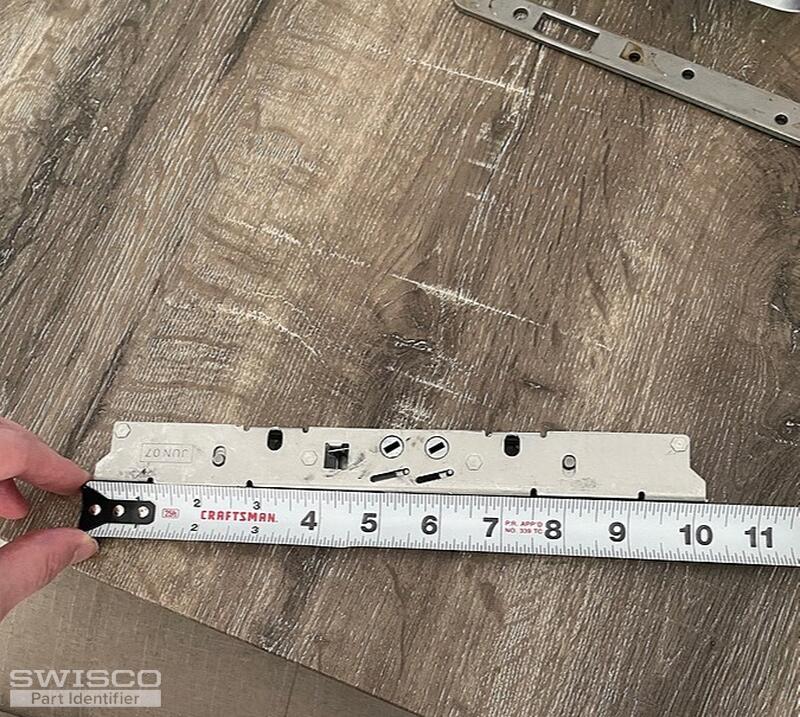

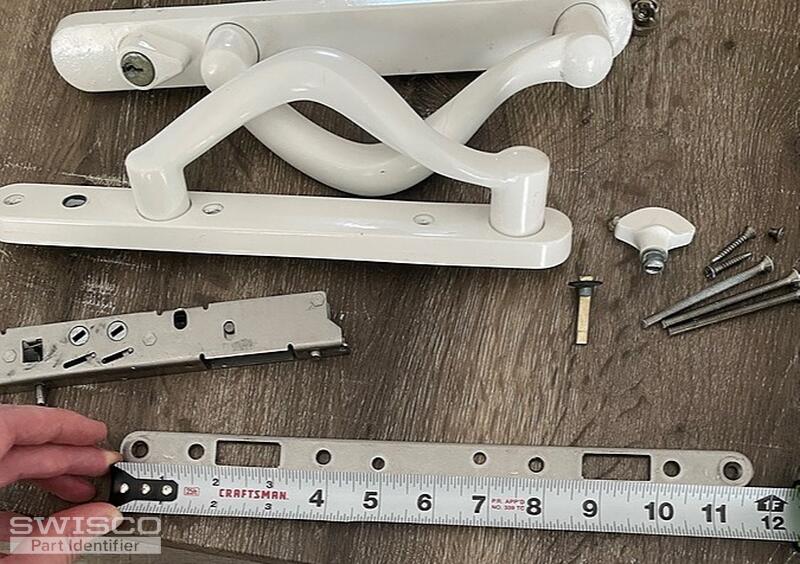

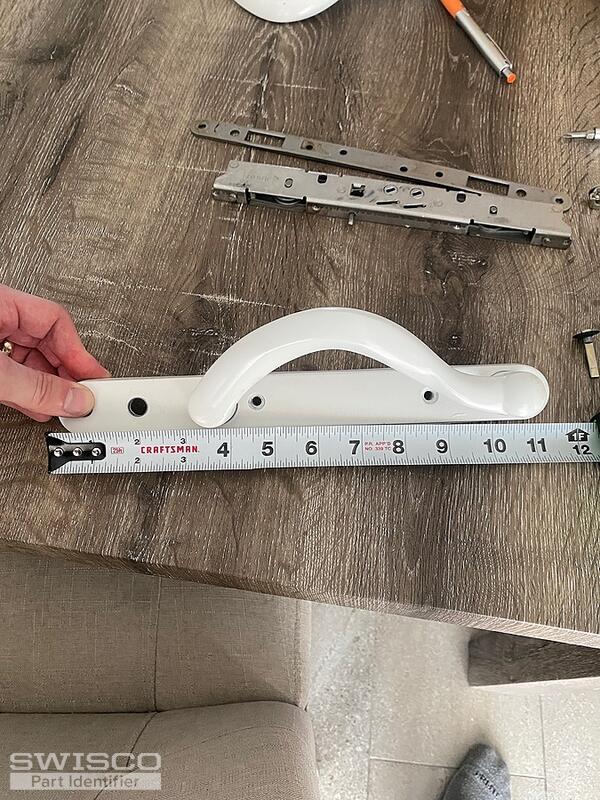

Here are the pictures of the measurements of the hardware
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Unforutnately, we can't make out accurate dimensions from photos but it looks like the mortise lock may match the 82-265. You'll just need to ensure that your dimensions match our product image.

As for the handle set, we do not carry anything in the size of your original assembly.  The only other options would could provide would be to see if you could make new installation holes in the door to install something like the 82-030, which has 3-15/16" hole spacing as shown below. If you decide to give it a try, make sure to take safety precautions and be very careful not to hit the glass inside the door.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030
