Multi point lock

Quick Learner
Aug 15, 2024 1:13 pm

Hi,

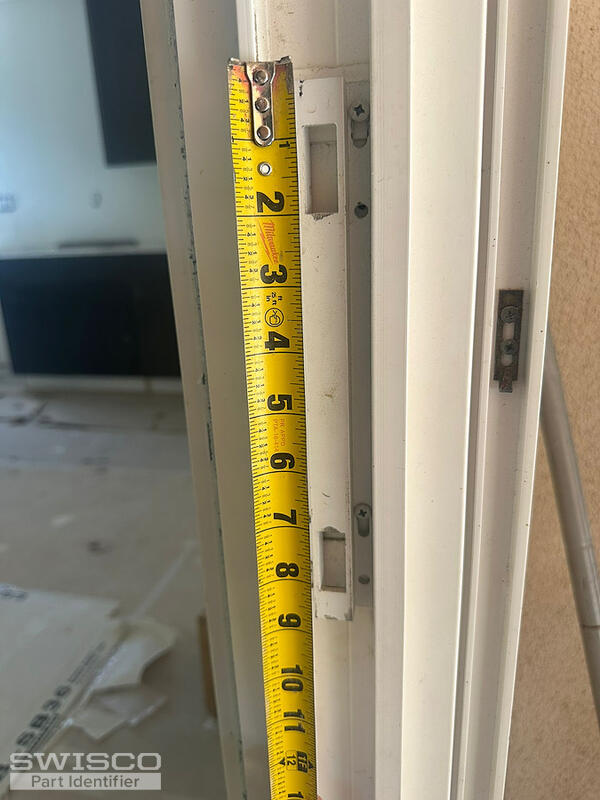

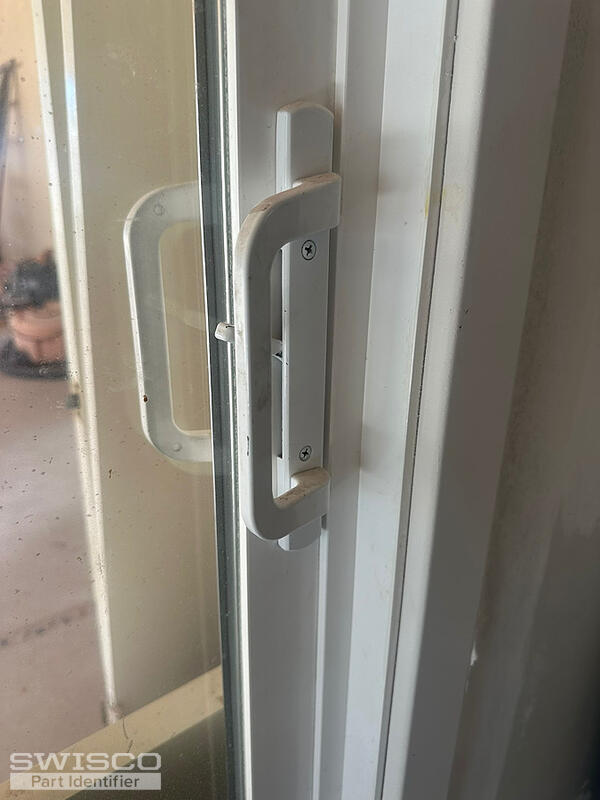

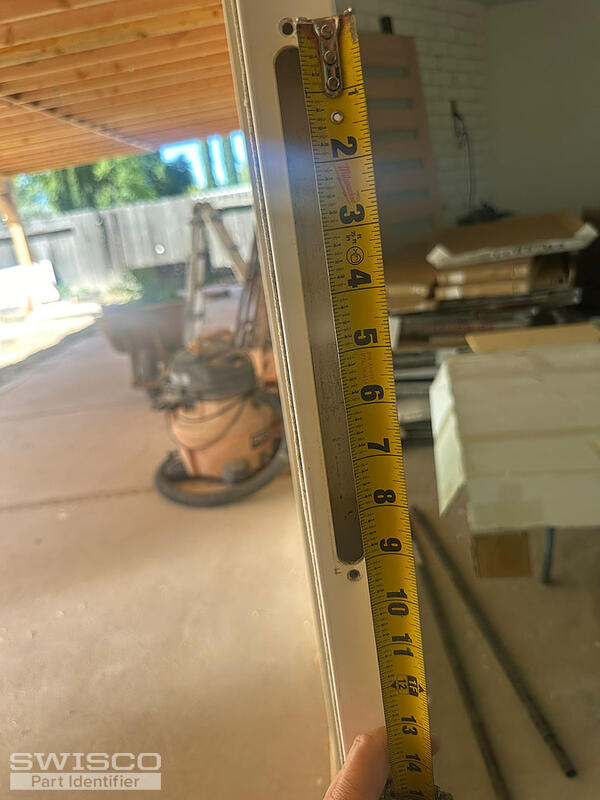

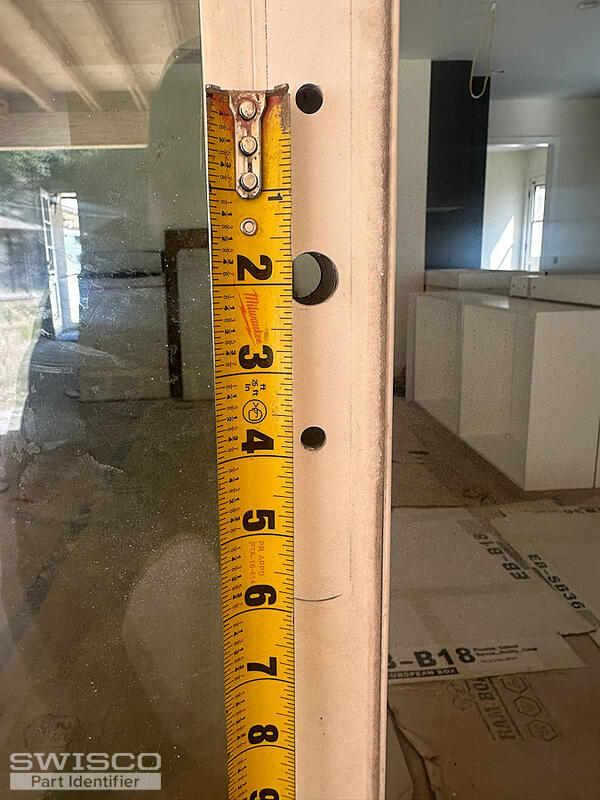

I am attaching pictures from the trim i like to change include the lock body with two hooks the coming down.

Please let me know what i need to order from your website.

Thank You

Sean

IMG-20240815-WA0016 IMG-20240815-WA0017 IMG-20240815-WA0018 IMG-20240815-WA0019 IMG-20240815-WA0020
5 user uploaded images
7 Replies
Casey
Casey from SWISCO
Aug 19, 2024 9:39 am
SWISCO
EXPERT

Hello,

We can't be sure without seeing the original hardware but your hole spacing and cutout remind me of the 82-239 mortise lock. Compare the specifications of both options to determine if this could work for your repair. Thank you!

Alternate image for 82-239
Alternate image for 82-239

Quick Learner from Tarzana
Aug 19, 2024 12:57 pm
Hi,

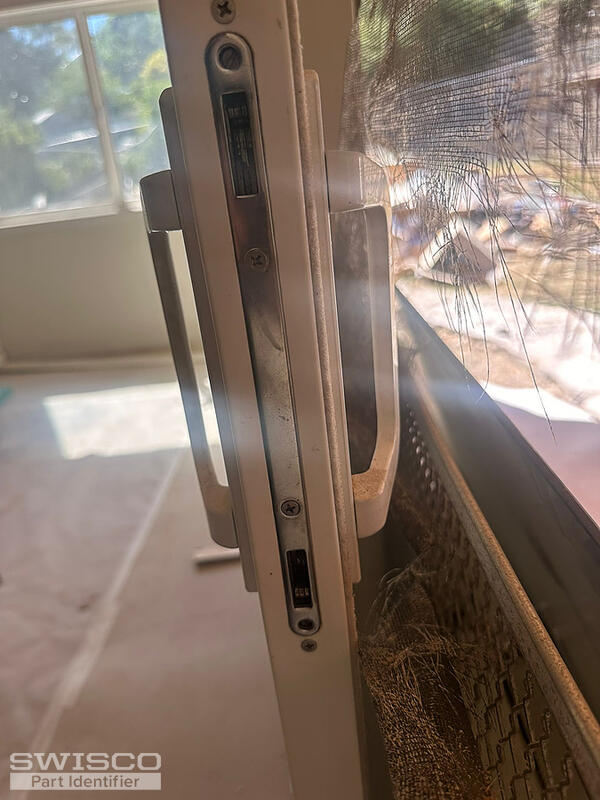

Per your request i attached the original hardware .
\Please let me know if the one you sent me is the one or different.
WhatsApp Image 2024-08-15 at 10.09.44_db51e764
1 user uploaded images
Casey
Casey from SWISCO
Aug 19, 2024 1:18 pm
SWISCO
EXPERT

Thanks for getting back to us. Your mortise lock does resemble the 82-239 but you'll need to confirm that the dimensions shown above match up to yours.

Quick Learner from Tarzana
Aug 19, 2024 4:06 pm
Thank for the update, can you help me with the trim as well, and send me the link to purchase.

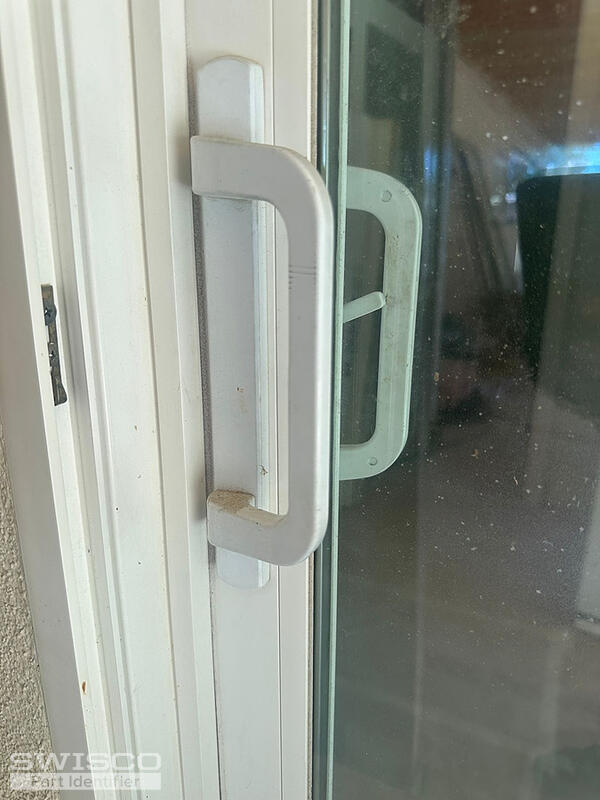

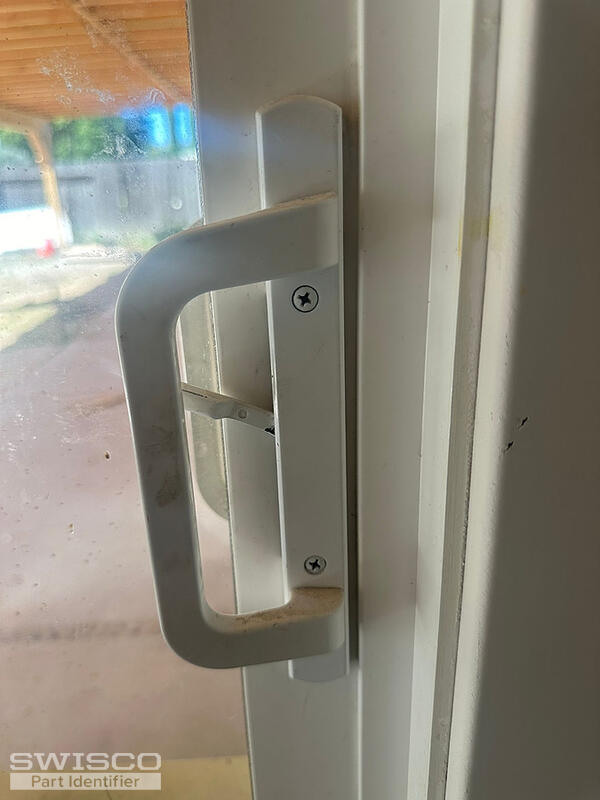

Attached pictures of the existing trim, as mention above i need new one.
Thank You,
Shahar
IMG-20240815-WA0019 IMG-20240815-WA0020 IMG-20240815-WA0021
3 user uploaded images
Casey
Casey from SWISCO
Aug 20, 2024 8:19 am
SWISCO
EXPERT

Unfortunately, we do not carry any kind of door trim, which would be specific to the manufacturer. If you need new handles, take a look at the 82-030 for your assembly. The 3-15/16" hole spacing is especially important.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030

Quick Learner from Tarzana
Aug 20, 2024 7:12 pm
Thank You Casey,

So this what i order 82-259 + 82-030, i was figure that 82-259 is same as 82-239 just the finish different.
Please correct me if i am wrong .
Thank You,
Shahar
Casey
Casey from SWISCO
Aug 21, 2024 8:16 am
SWISCO
EXPERT

You are correct that the 82-259 is the stainless steel version of the 82-239. As long as the specifications of the mortise and handle set match yours, you'll be good to go.
