Multiple Channel Balances, many differernt stamps

Quick Learner from Melrose, FL
Can you please help me identify my channel balances?

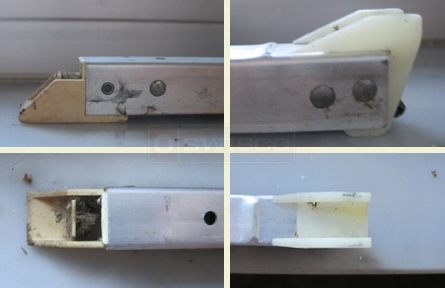

User submitted photo of their balance attachments.
All the ends are the same. Just different lengths like the pictures I sent yesterday.

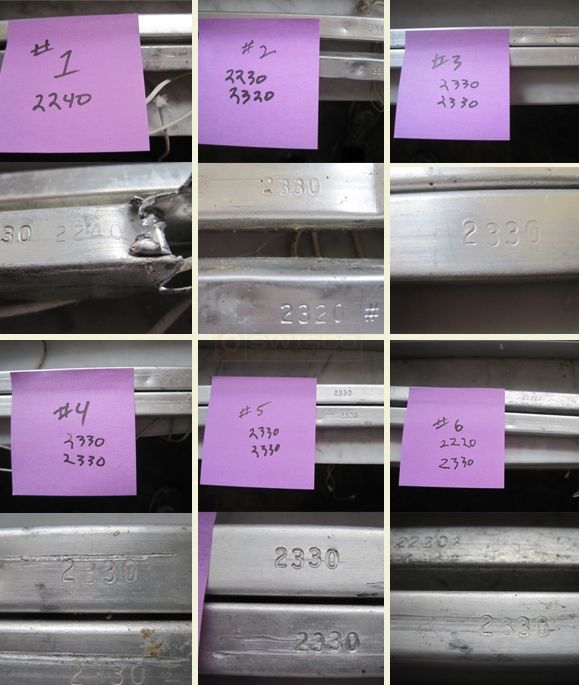

User submitted photo of channel balances.
User submitted photos of customer channel balances.
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thank you for sending us all of your images, Gordon; we were able to identity each of your balance replacements.

You've stated all of your balance attachments are the same. We have identified your Top Balance Shoe as the 19-002 and your Bottom Shoe as the 15-002. This combination is our Series 351 Channel Balance.

Here are the Swisco part numbers:

#1 S351-23 (2240)
#2-A S351-23 (2230)
#2-B S351-24 (2320) Note 1" taller
#3 S351-24 (2330)
#4 S351-24 (2330)
#5 S351-24 (2330)
#6-A S351-23 (2220)
#6-B S351-24 (2330) Note 1" taller
#7-A S351-18 (1720) Note 1" taller
#7-B S351-17 (1640)
#8 S351-17 (1640)
#9-A S351-18 (1740)
#9-B S351-18 (1720)
#10 S351-12 (1120)
#11 S351-17 (1640) Look at #7-B and #8
#12-A S351-18 (1720)
#12-B S351-18 (1740)
Quick Learner from Melrose, FL
Two Questions
1. Why are some balance attachments of different lengths?

2. What is the cost going to be?

Thanks

Gordon
Tom
Tom from SWISCO
SWISCO
Expert
Gordon,

It's not the balance attachments that are different lengths, it is the channel portion of the balance that is different lengths.

Once you go to the product pages you can see the price of each balance.

Your order total (including shipping) can be calculated before you checkout.
Quick Learner from Melrose, FL
Here are the lengths you asked for.
Window Lengths (metal portion)
#1- 23
#2- 24
#3-24
#4-24
#5-24
#6-23 & 24
#7-17 & 18
#8-17
#9-18
#10-12
#11-17
#12-18

I am not sure why #6 and #7 have different lengths. It may have been replace earlier with the wrong length. Should I go with the long side or the short side of those with different lengths?

Thanks for your help
Gordon
Tom
Tom from SWISCO
SWISCO
Expert
You should have the same size length balances in your window; the two balances should not be different lengths.

We believe someone may have cut your balances at one point.

Here are the corrected balance lengths:

#1 S351-23 (2240)
#2 S351-24 (2330)
#3 S351-24 (2330)
#4 S351-24 (2330)
#5 S351-24 (2330)
#6 S351-24 (2330)
#7 S351-18 (1720)
#8 S351-17 (1640)
#9-A S351-18 (1740)
#9-B S351-18 (1720)
#10 S351-12 (1120)
#11 S351-17 (1640)
#12-A S351-18 (1720)
#12-B S351-18 (1740)
Quick Learner from Melrose, FL
Thank you so much. If I were a teacher I would give you an A on this assignment.

I will make my order in a few days.

Thanks

Gordon
