23" Series 351 Channel Balance

Product Code: S351-23

23" Series 351 Channel Balance
$9.91/each
Quantity Price
1-11 $9.91
12-49 $8.92
50-99 $8.42
100-249 $7.93
250+ $7.43
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description

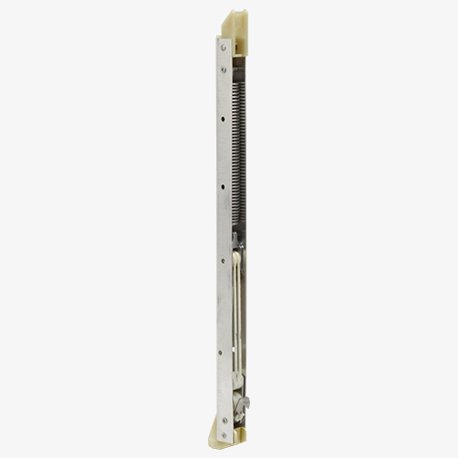

This is a Series 351 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 23" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-002 top and 15-002 (1" deep) bottom fittings and will be ready to install out of the box.

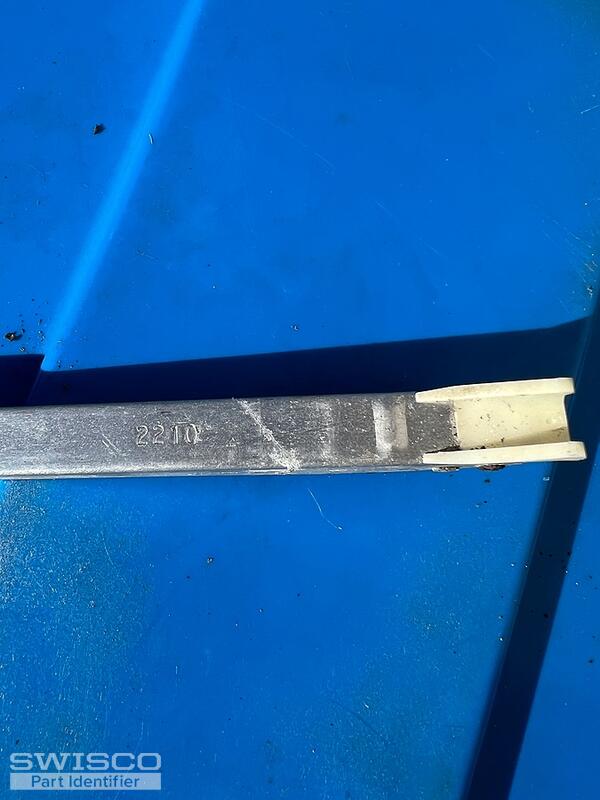

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.

    • Stamp Option Sash Weight Range
    2210 5 to 8 lbs
    2220 8 to 12 lbs
    2230 12 to 19 lbs
    2240 19 to 23 lbs
    2250 23 to 27 lbs
    2260 27 to 30 lbs
    2265 30 to 34 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Guides
  • How to replace a non-tilt channel balance
  • Choosing a Non-tilt Channel Balance: What Will We Need?
    • Related Videos
    Related Item(s)
    15-002
    $0.74
    Channel Balance Shoe, 1" Depth
    16-002
    $0.41
    Take Out Clip
    19-002
    $0.74
    Channel Balance Top Guide
    Customer Questions & Answers
    Discussion Posts Last Post Date

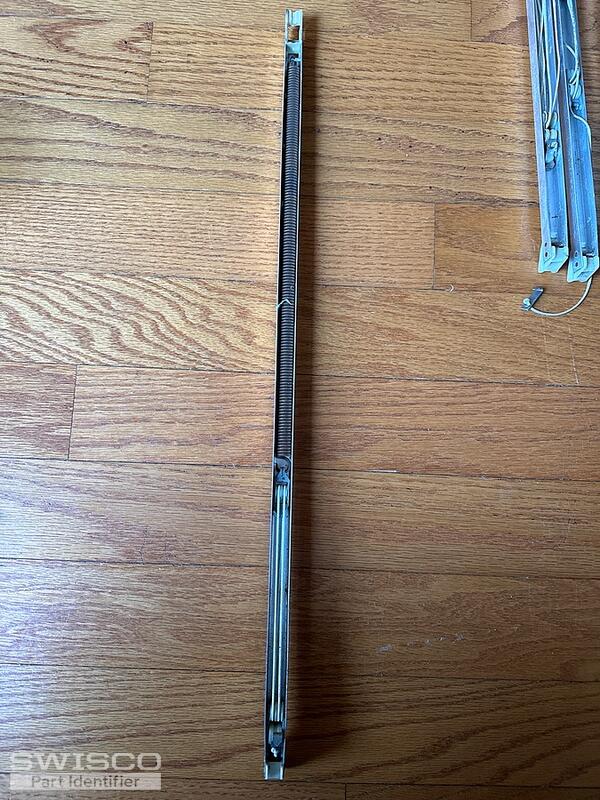

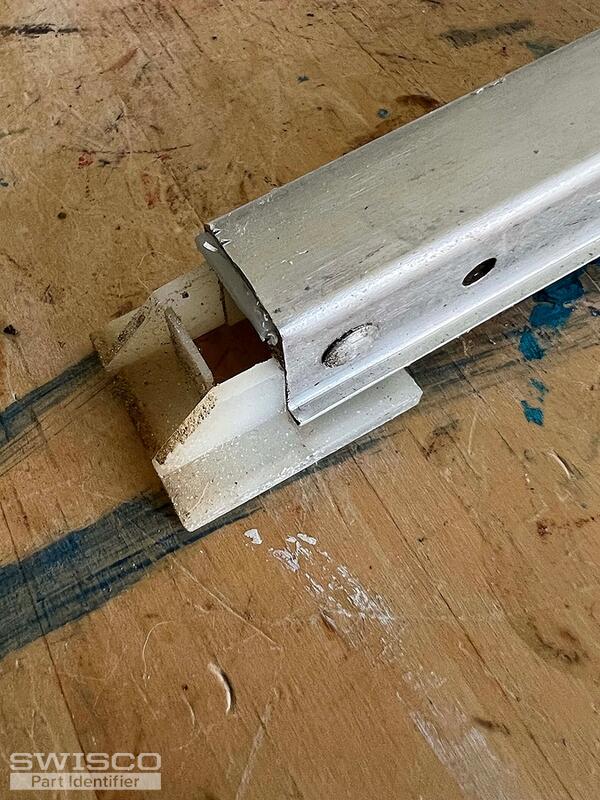

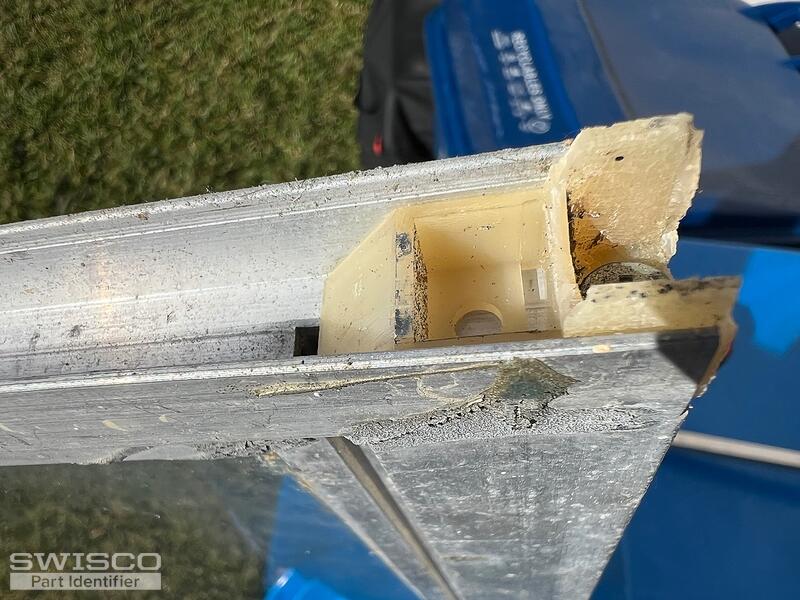

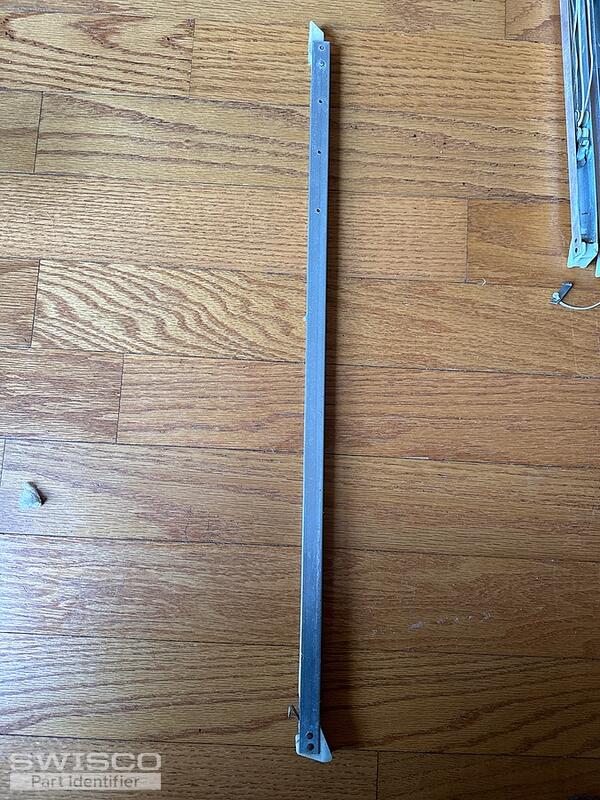

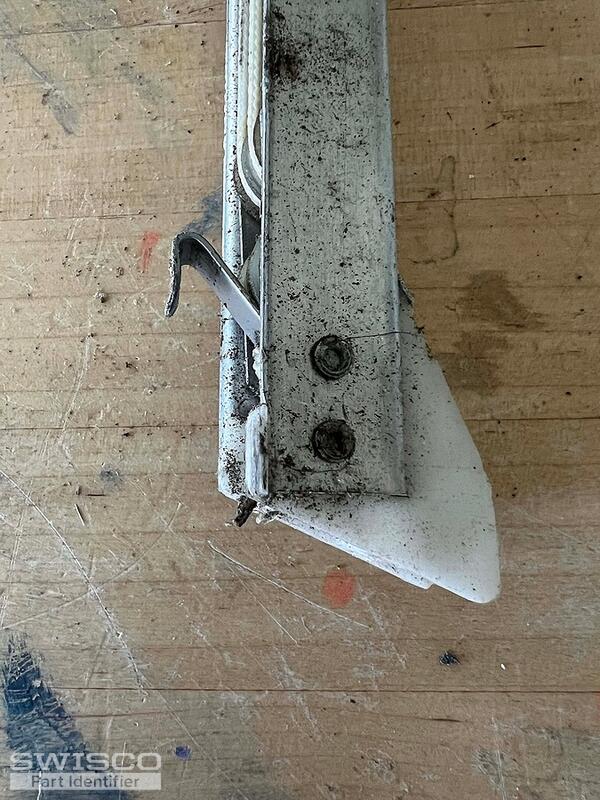

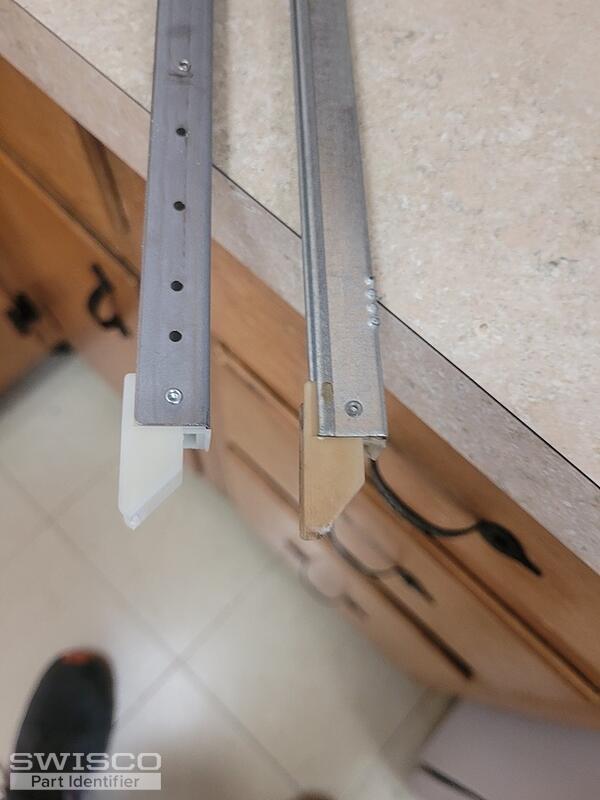

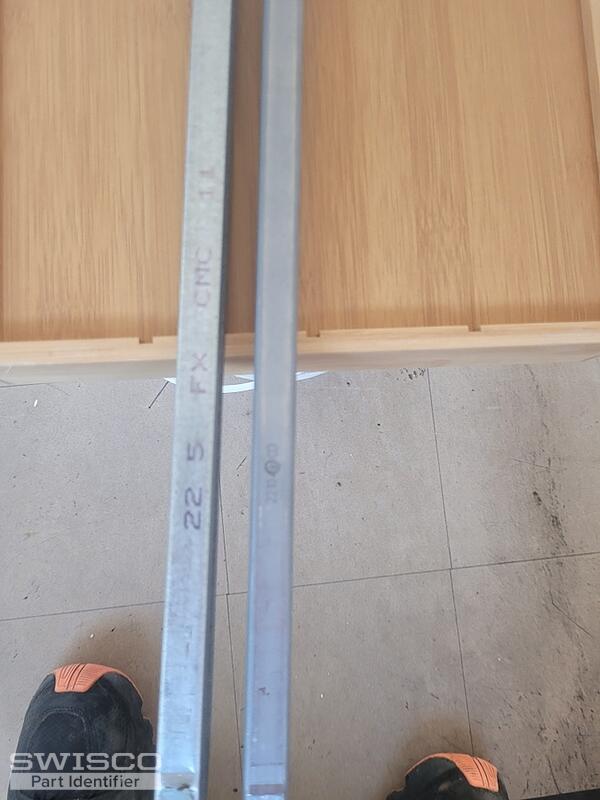

    Part stamp 2230Y (B.S.I.)
         		This discussion includes image(s). 2 Aug 26, 2024

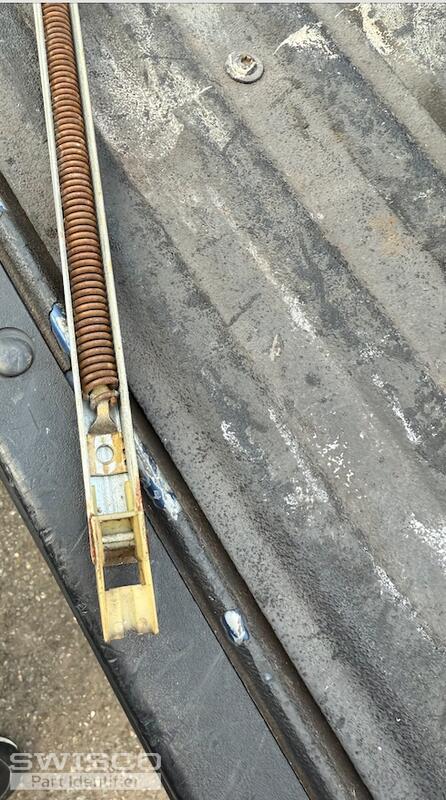

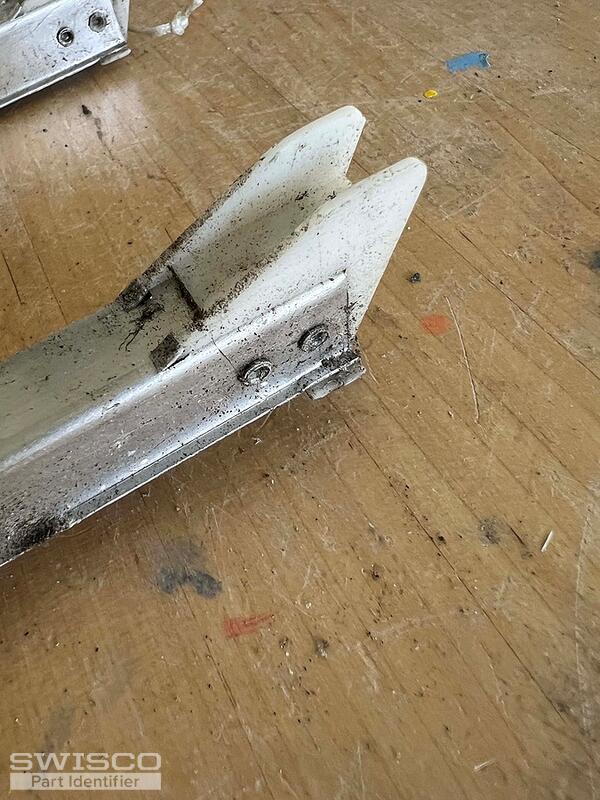

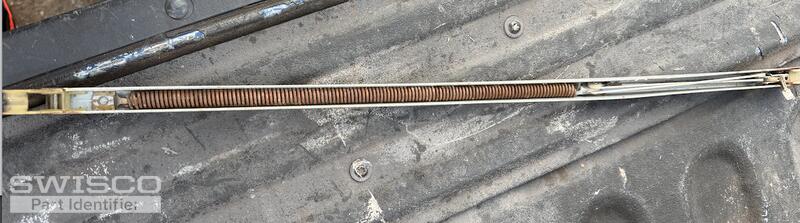

    channel balance spring part?
         		This discussion includes image(s). 6 Aug 5, 2024

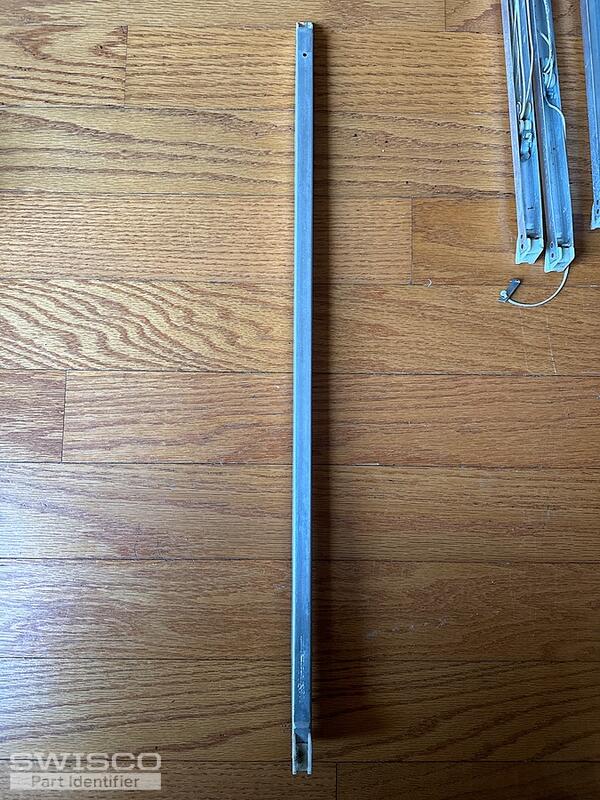

    Non tilt window parts
         		This discussion includes image(s). 4 Aug 5, 2024
    422c
         		This discussion includes image(s). 2 Jun 24, 2024

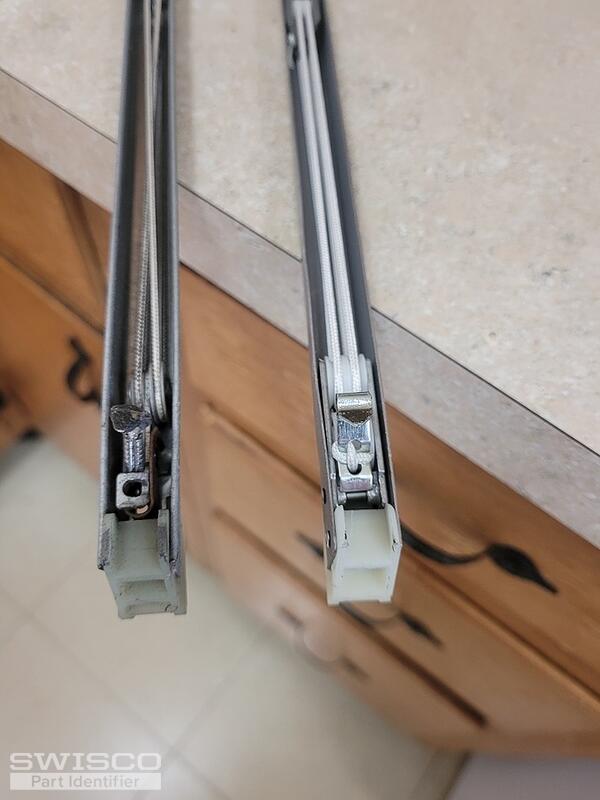

    Channel balance
         		This discussion includes image(s). 2 Jun 13, 2024

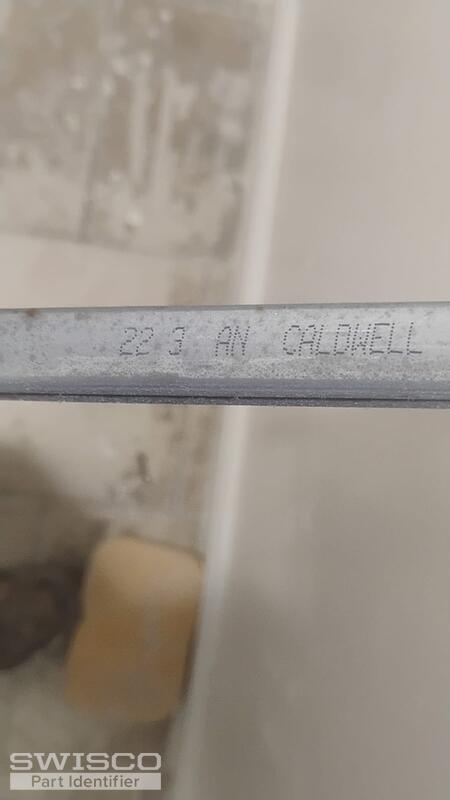

    Channel window balance
         		This discussion includes image(s). 2 Jun 11, 2024

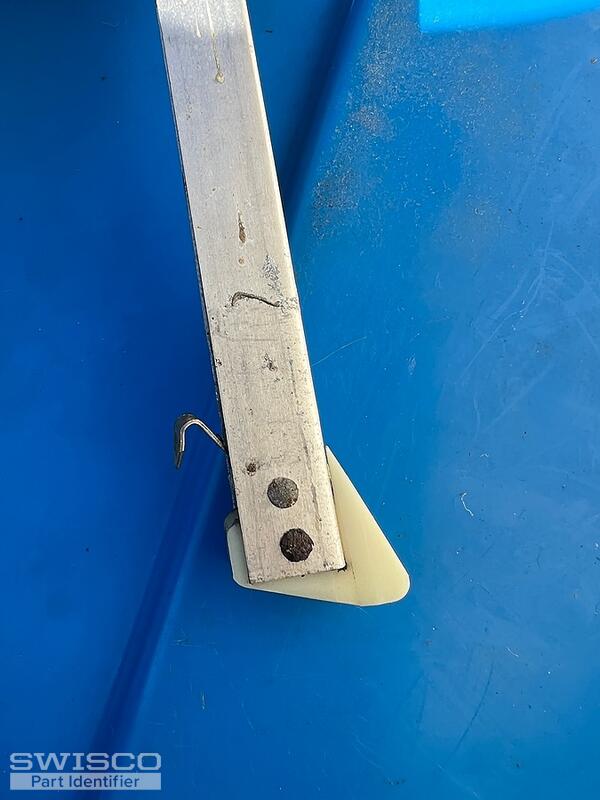

    Hello Im looking for this balance
