NAMI Boreal Series Sliding Glass Door Handle and Locking Parts

A home owner from Arvada Colorado says:

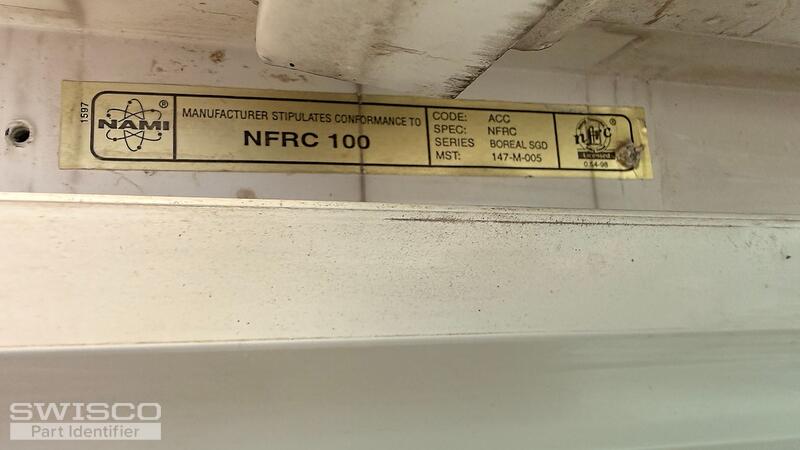

Label on side of sliding glass door says:
"NAMI Boreal Series Sliding Glass Door" "MST 147-M-005"
The sliding glass door is ~1.5" wide. Two 1/4" holes for handle posts are ~4" apart. Oval center hole for locking mechanism is 5/8" x 3/4". Side hole for mortice locking mechanism is 11 1/4" long and 7/8" wide.
The mortice locking mechanism is 11 1/4" long, 1 11/16" deep, 9/16" wide at bottom (7/8" at door edge). The top and bottom screw holes to attach the mechanism to the door are 12" apart.
It has a dual locking mechanism with the top and bottom latches closing to 5 5/8" apart on the base plate.
Thumbnail of the uploaded file named Handle parts.jpg
Thumbnail of the uploaded file named Dual Latching Door Mortice Part - side view.jpg
Thumbnail of the uploaded file named Dual Latching Door Mortice Part.jpg

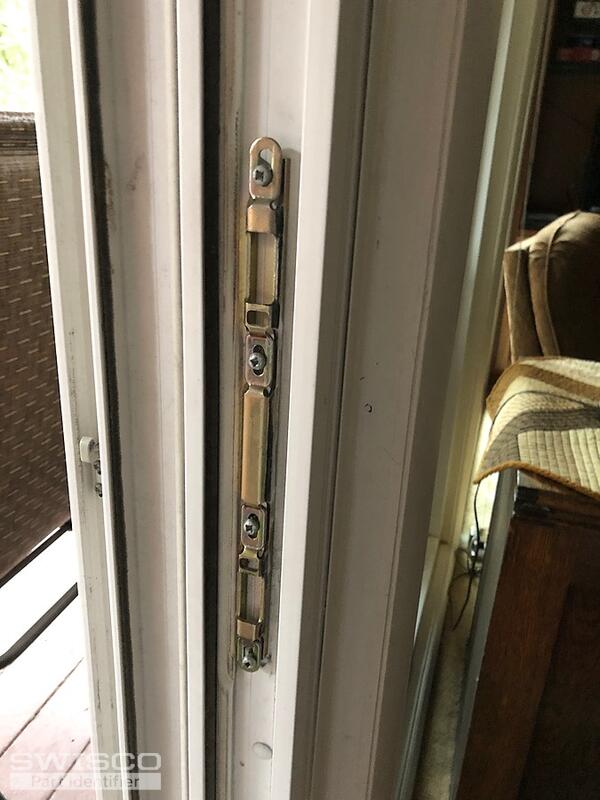

Thumbnail of the uploaded file named Dual Latching Base Mount.jpg

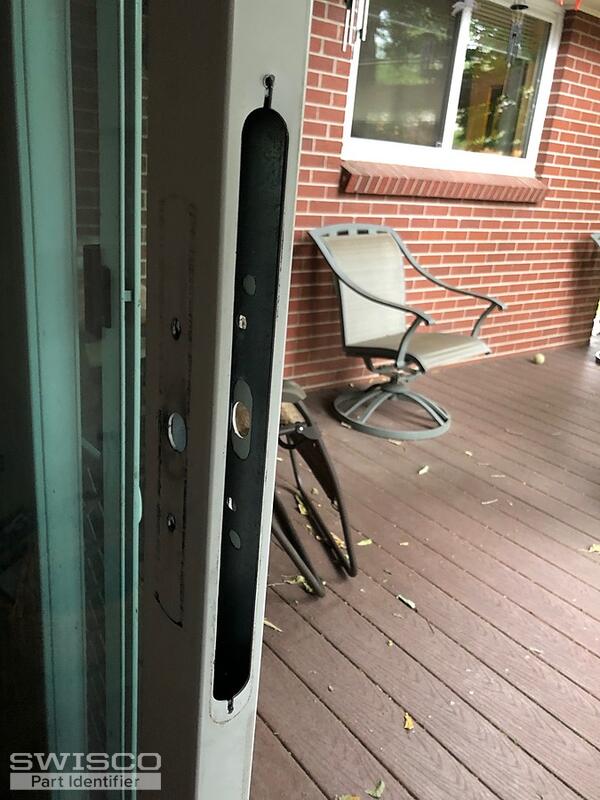

Thumbnail of the uploaded file named Mortice Opening on Door.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

We don't have this exact handle set but take a look at our 82-030 with 3-15/16" hole center spacing, along with the 82-249 keeper and 82-260 lock. Look over the specifications for these parts and compare them with yours to see what you think.

A home owner from Arvada Colorado says:
The Multi-Point Mortise Lock with Pocket Plate, 12", Product Code: 82-260 looks like an exact match !!
Would the Sliding Patio Door Handle Set, 3-15/16", Product Code: 82-030 work with this lock set ??
Profile picture of Emily
Emily from SWISCO responded:

Yes! These two parts are fully compatible together.

A home owner from Arvada Colorado says:
The replacement parts were received and successfully installed !!
I had to use a rat-tail file to enlarge and slightly move the holes in the sliding glass door frame in order to match the holes in the lock mechanism and the larger size of the door handle screw ports.
But it all works fine now. Thanks much.
Profile picture of Emily
Emily from SWISCO responded:

That's great to hear! Thank you for the update and for your business, of course. If you have any future hardware questions, you know where to find us!
