NC2000/NC2400 windows

Question

I have a few questions about replacing damaged or deteriorating parts.

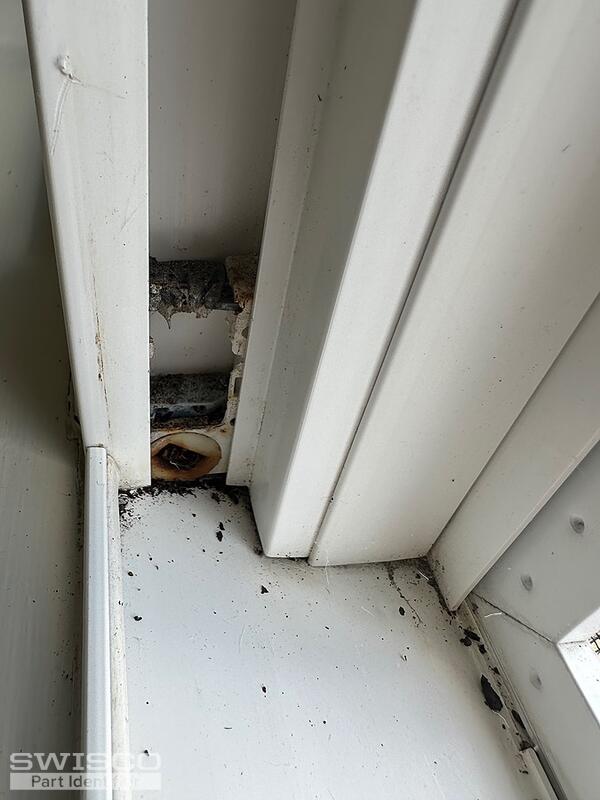

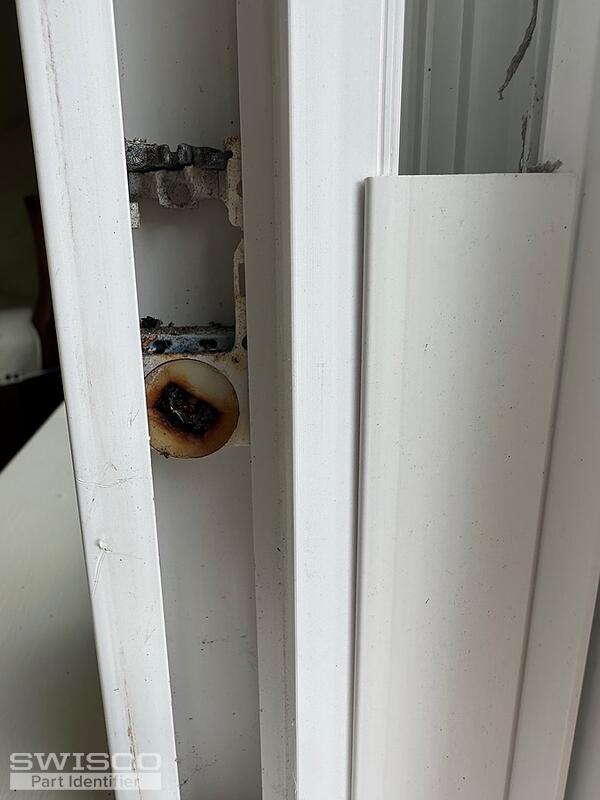

The spring release catches on the top of the window and the pivot pins that allow the window to pivot down for cleaning.

The mechanism in the window to control the window to move up and down , not falling down on its own.

Details:
Series: NC/2000 and NC/2400
MST: 4060
Code: PAT-086
SPEC: NFRC
PAT-086-U1.05-97

Emily · Accepted Answer

Thanks for reaching out to us! The 26-243 and 26-244 tilt latches come to mind. I'm unsure about the pivot shoe without dimensions though. The 15-046 may be an option but this is just an educated guess. I recommend you remove undamaged versions of your hardware and compare the specifications to see if they align with what you're searching for.

Alternate view of 26-243

Profile view of 26-243

Alternate view of 26-244

Profile view of 26-244

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.
