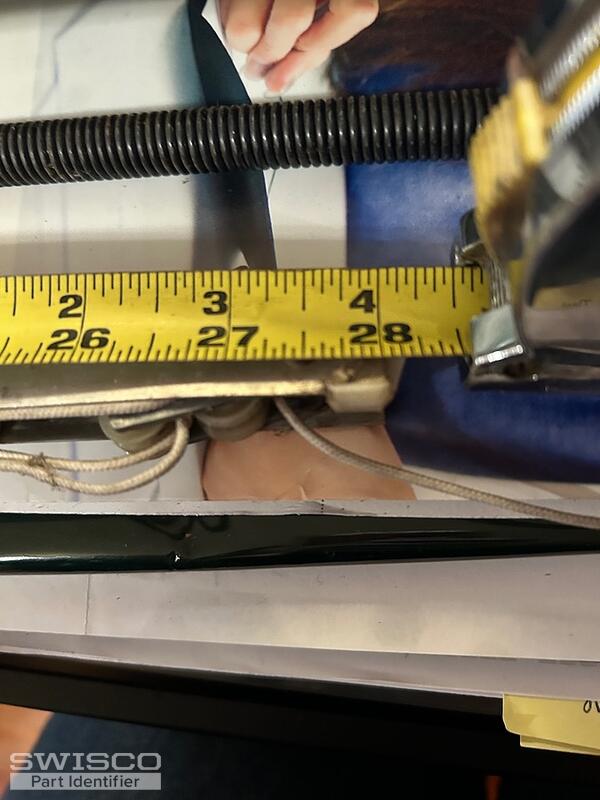

Metal to metal length 28 in
1/2 in channel width
Plan channel

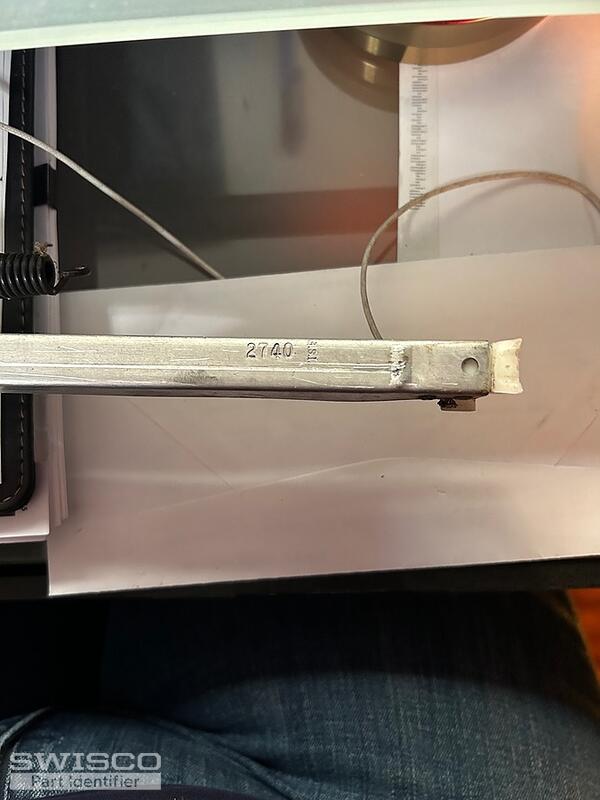

Stamp on balance channel 2740
Spring lenght 12 in not included hook in measurement
Thank you
I need 8 4 windows do not hold up when opened
NON TILT ALUMINUM WINDOW
Handy Person from Lodi CA
May 19, 2024 10:47 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
May 20, 2024 11:42 am
Hello,
Your balances look a like they could be either the S380-28 with a 1" shoe or our S385-28 with a 1-3/32" shoe. To determine the correct series for your replacements, you'll need to confirm the measurement for the depth of your bottom shoe. It would be best to find a balance with an undamaged bottom shoe. Take a look at the diagram below for reference.
You'll need to select the 2740 option.
Comparison of the S378, S380 and S385 balance shoes.
Handy Person from Lodi CA
May 22, 2024 12:20 am

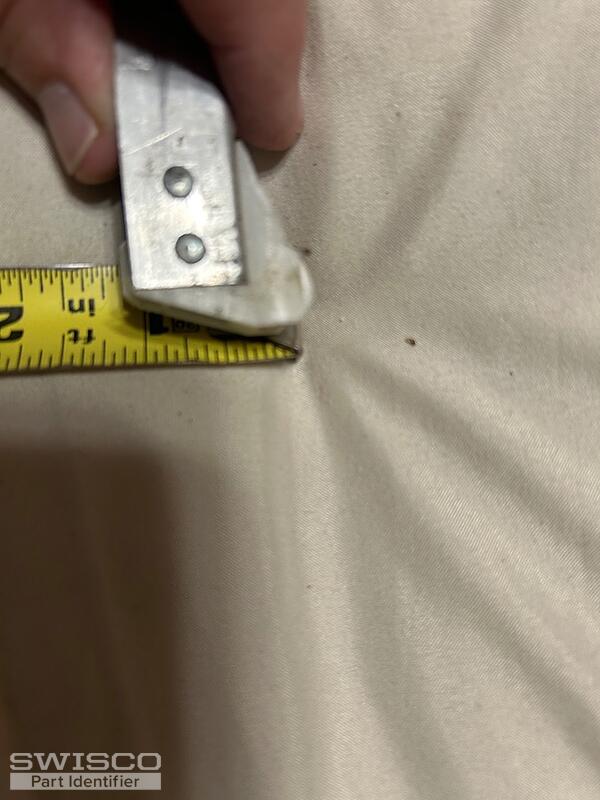

Removed another chanell bracket same number 2740 and remeasured bottom of i do not 3/32 tape measure so I added another picture
1 user uploaded image
Jasmine from SWISCO
May 22, 2024 10:36 am
Since the shoe appears to be well over 1”, you’ll need the S385-28. You’ll need to be sure to double check this before making your purchase.
I hope this helps!
