National Bi-Fold Doors - replacement parts

A quick learner from vancouver says:

January 3, 2021

I'm looking for replacement parts for my 1970s National Bi-Fold Doors.

Specifically a top and bottom guide pin for one door (the other pieces are fine).

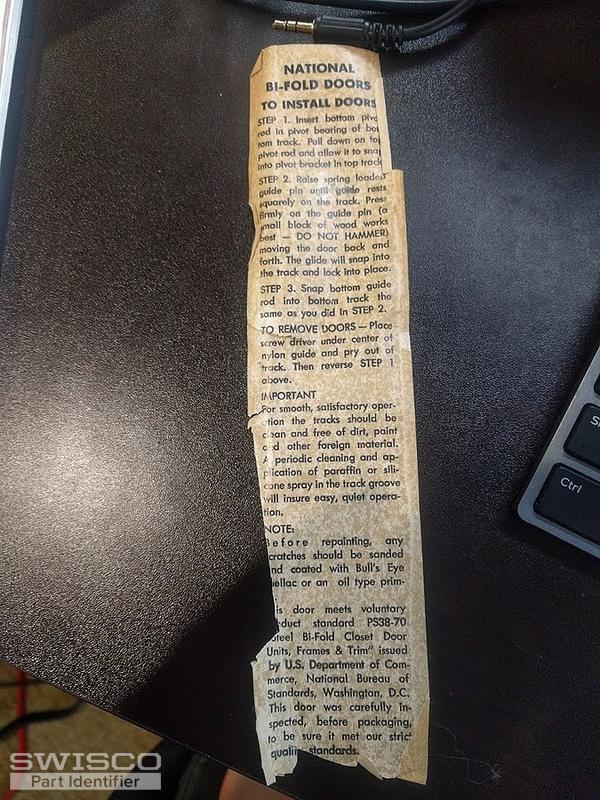

Picture 1) Original installation instructions.

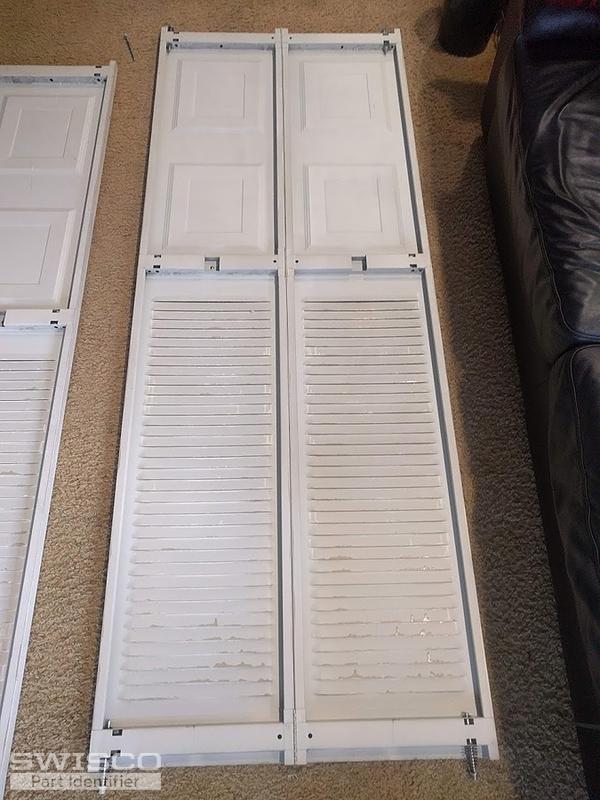

Picture 2) Full picture of door.

Dimensions: 78.5 inches high, 29.25 inches wide.

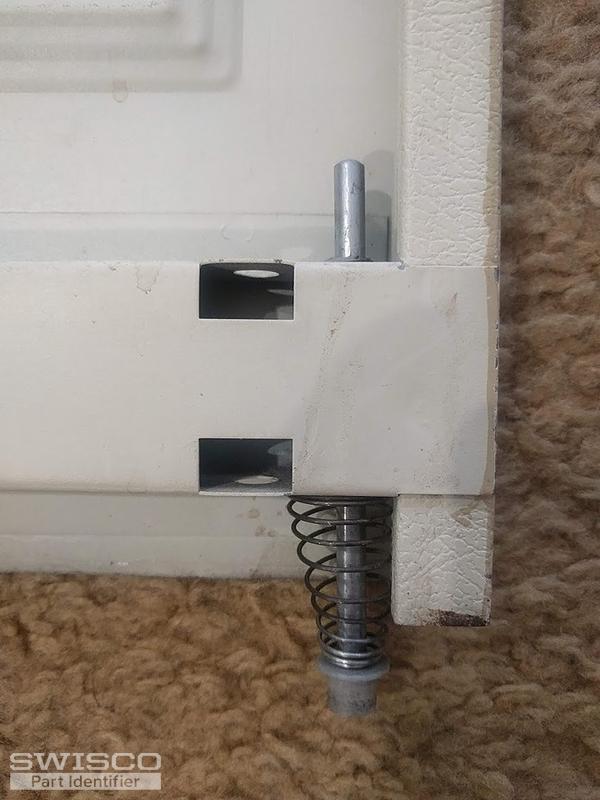

Picture 3-5) Picture of functional bottom guide pin in a working door. The plastic cap is a single piece.

dimensions (roughly): length 4.5", width of metal 1/4", width of plastic 3/8".

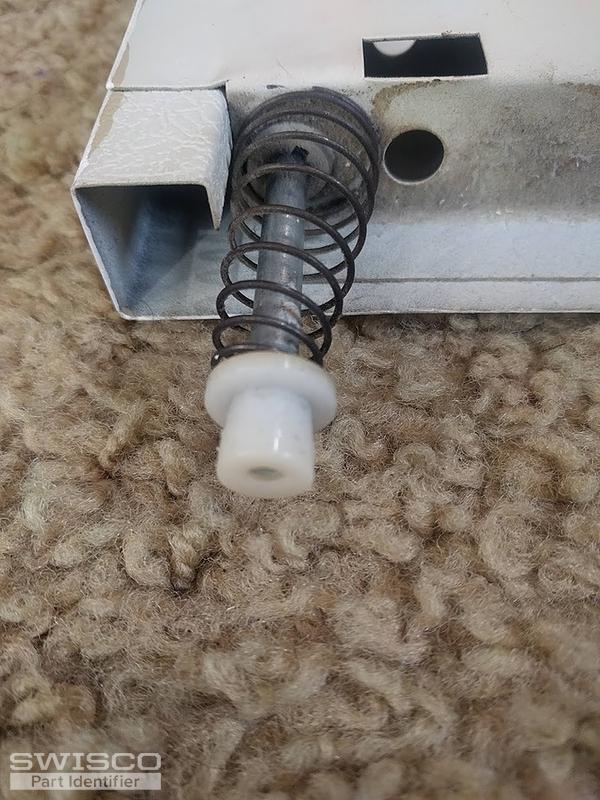

Picture 6-8 [ran out of pictures]) Picture of functional top guide pin in a working door. The plastic cap is composed of two pieces, a plastic washer and a plastic end piece.

Same dimensions.

Even though the brand is National, the closest bottom piece looks to be this one by Fenestra. I didn't find anything with a two-piece cap like the top piece. I'm not sure whether or not this difference matters.

https://www.swisco.com/door-pin-fenestra/pd/Bifold-Door-Pin-Assemblies/21-095

Please reply with your suggestions.

Thank you for your help.

Sincerely.

Marc

Casey from SWISCO responded:

January 5, 2021

Hello,

We'd be happy to help but, unfortunately, your photos didn't come through. This can sometimes happen if the file size is too large. If you could resend them, we can start researching your replacement options. In the meantime, take a look at our guide here that explains the information we'll need to identify the correct parts for your door. Thank you!

A quick learner from vancouver says:

January 23, 2021

First photo

Thumbnail of the uploaded file named IMG_20210103_134400.jpg

Thumbnail of the uploaded file named IMG_20210103_134256.jpg

Thumbnail of the uploaded file named IMG_20210103_133730.jpg

Thumbnail of the uploaded file named IMG_20210103_140755.jpg

A quick learner from vancouver says:

January 23, 2021

My apologies for the delay.

Paul from SWISCO responded:

January 25, 2021

Yes, we agree that 21-095 guide pin looks like a good match. Please let us know if you have any other questions and thanks for posting!

A quick learner from vancouver says:

January 26, 2021

Awesome, I'll get my order sorted soon.
