Need 2 new channel balances for old Milgard window.

Handy Person from Hawaii

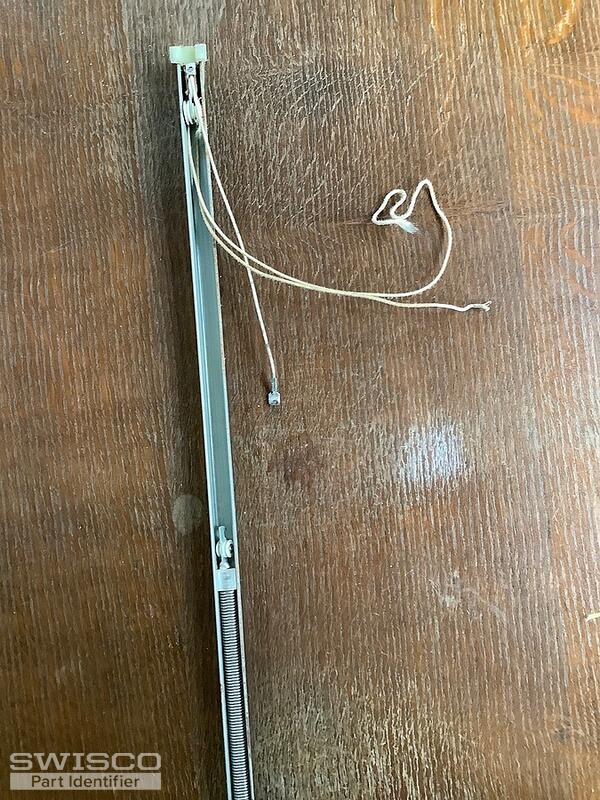

1. Side with #
2: Inside with clip
3: Side view
4: Bottom end
5: Top end

From a Milgard window, 28" wide x 53" high.

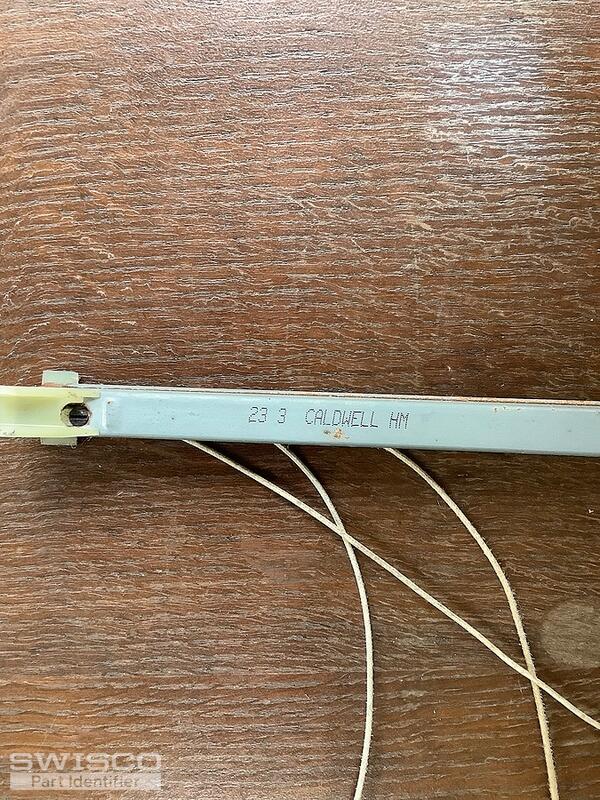

Number stamped on side of part is "23 3 CALDWELL HM"
Part dimensions (metal channel only) are 1/2" wide, 24" long
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S380-28 or S385-28, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
