Need Complete door handle and lock

Handy Person from NC

Nov 9, 2017 12:04 pm

Trying to find the correct door handle and lock for this sliding glass patio door. I do not have pictures of the previous door handle. This is a rental house and the tenants trashed it.

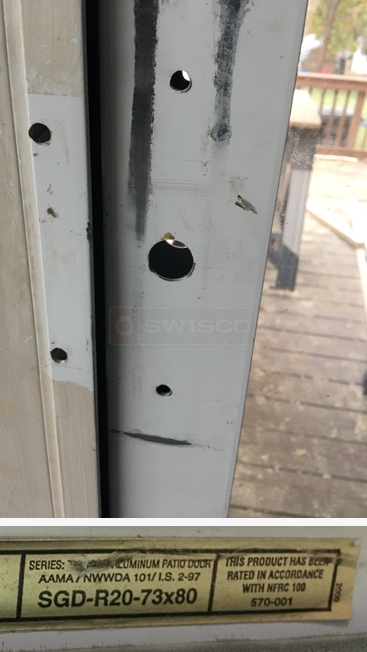

I have attached a picture of the only information I can find on the door SGD-R20-73x80

6 Replies

Tom from SWISCO

Nov 15, 2017 9:32 am

We will do our best to replace this for you. Based on what I see in your picture, I think your original handle may have been a surface-mount type. That definitely makes things easier. Before I recommend anything, can you confirm the distance between the two installation holes, center-to-center?

Handy Person from NC

Nov 19, 2017 11:11 am

Top hole to center and bottom hole to center are both 2.5"

Tom from SWISCO

Nov 22, 2017 10:41 am

You don't need to count the center hole in this measurement. I only asked for the distance between the two installation holes. I'm assuming that it comes out to somewhere around 5", based on your measurement. Could it be 4-15/16"? If so, see our 82-005 surface mount lock set. This may work on your door. For the keeper, see our 89-012. This has a hole spacing of 3-1/2", so you'll want to confirm that as well.

Quick Learner from NC

Nov 28, 2017 12:57 pm

I'm wanting a keyed door handle. 82-005 does not look lie it is compatible for any of the keyed locks. i.e.: 82-306. I need the inside piece, the outside piece with keyed and the door keeper.

Tom from SWISCO

Nov 29, 2017 11:59 am

If you want a keyed exterior pull, see our 82-306. This is compatible with the 82-005.
