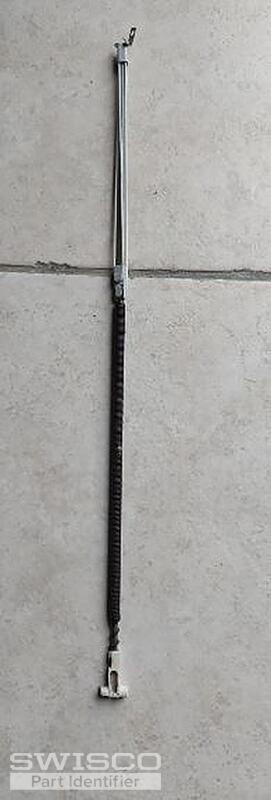

I would like to replace four 22.5' crossbow balances for tilted push up windows
This crossbow balance comes with a 1" t shaped shoe.
Do you have the series 795 26-200 for a 10 to 16 lbs window
The length is 22.5 inches Exactly what I measured. So I, need a 22"
The shoe is 1"
The spring diameter is 3/8 inches
Need Custom Balance from CrossBow
Quick Learner from USA
Jun 21, 2024 3:46 pm
4 user uploaded images
4 Replies
Emily from SWISCO
Jun 25, 2024 11:20 am
Hi there!
Our Series 795 can't replace what you have here since the spring is 3/8" in diameter. However, we can still help with this via custom order. Our replacements will have a 3/8" wide channel and the 15-230 t-lock shoe. In order to get this moving for you, we must know the exact sash weight. I'm afraid weight ranges or approximations won't suffice.
Thank you!
Quick Learner from USA
Jun 26, 2024 3:54 pm
The weight of the sash is 10.4 lbs
Emily from SWISCO
Jun 28, 2024 9:59 am
Thank you for waiting while we looked further into this. I'll go and email you a purchase link for (2) 22" long and 3/8" wide ribbed balances with the 22A stamp and 15-230 shoe. A pair of these balances will support a sash weighing 5 to 11 pounds. Please note that you will also need the 26-448 pivot bar since the old one won't be compatible with our shoe. This is sold separately so don't forget to add your needed quantity to your cart.
Let me know if you have any questions!
