Need Keeper

Quick Learner from USA

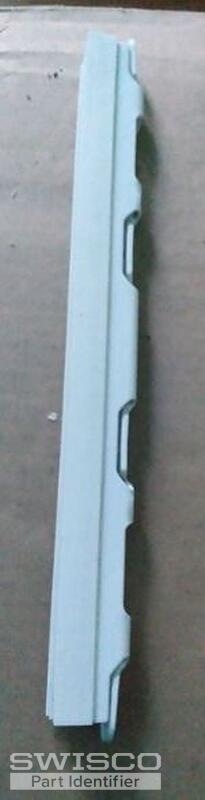

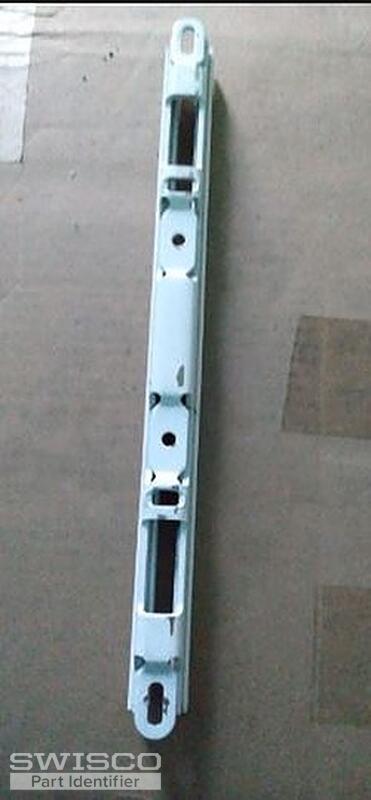

I need the white item about 1/2" shorter than the one in the picture that latches into the hooks on Multi -Point Mortise Lock item 82-239.

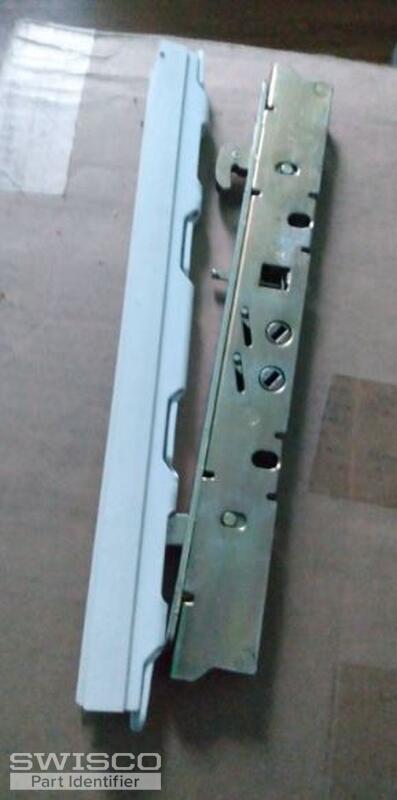

The Mortise Lock item 82-239 in the picture is a Double hook lock.
3 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We unfortunately don't sell a keeper that matches this exactly. The 82-239 does come with its own keeper, though obviously its completely flat so it's not going to be an ideal replacement as-is. What you could do is pack it out with washers so that it meets the same depth as the original.

If that doesn't work for you, the only other option we sell is the 82-249. This is deeper than the keeper that comes with our 82-239, but it's still flatter than your original. You would still have to pack it out with washers regardless, just not quite as many in this case.

I am sorry that we can't offer you a better replacement option, but I do think increasing the depth of our keepers will fix the issue for you.

Quick Learner from USA
Tom,

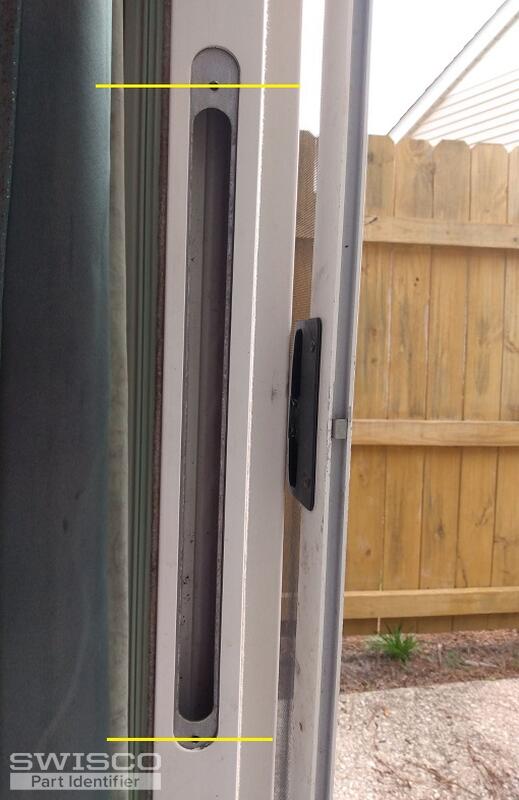

Thank you for your ideas so far. a Swisco agent encouraged me to measure the holes between the yellow lines. It's 11".
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Hello again. I'm a little confused. Are you looking for a mortise now, in addition to the keeper you wanted before?

Our 82-265 mortise lock has an 11" hole spacing, but only due to its faceplate. I don't see a faceplate on your original, so that's something you might want to check before you buy anything.

You can review this part's dimensions below.

Alternate image for 82-265
Alternate image for 82-265
