Need New Coil Balance

A quick learner from Trenton, MO says:
One of the coil balances on my window had its coil bend and lock up. The Balance has three coils in it and two are in bad shape. I would like to replace the whole balance on both sides. This unit has one screw hole to attach to the sash. Can you show me what I need to replace these with.

Also, I have another similar window that the metal pins that come off the window and into the balance have broken. Can you direct me to what part I may use to replace these pins with.

Thank you

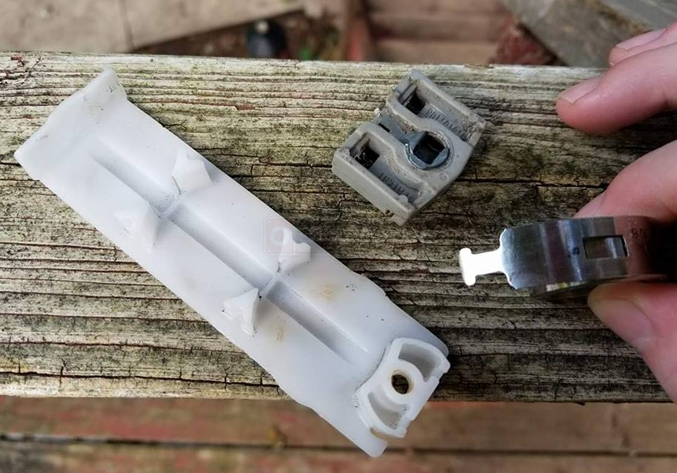

Coil assembly
Profile picture of Paul
Paul from SWISCO responded:
Thanks so much for your question. The pivot shoe is 15-191 and the triple coil balance spring cover is 15-150T. I couldn't read the spring weight number, so look at our 1/2" wide Series 160 coil springs and choose the number on your balance when ordering.
