Need New Lock , Current one has broken

Start a new Discussion

Quick Learner

Jun 15, 2023 8:25 am

Need new lock for sliding door. Please send part numbers and price.

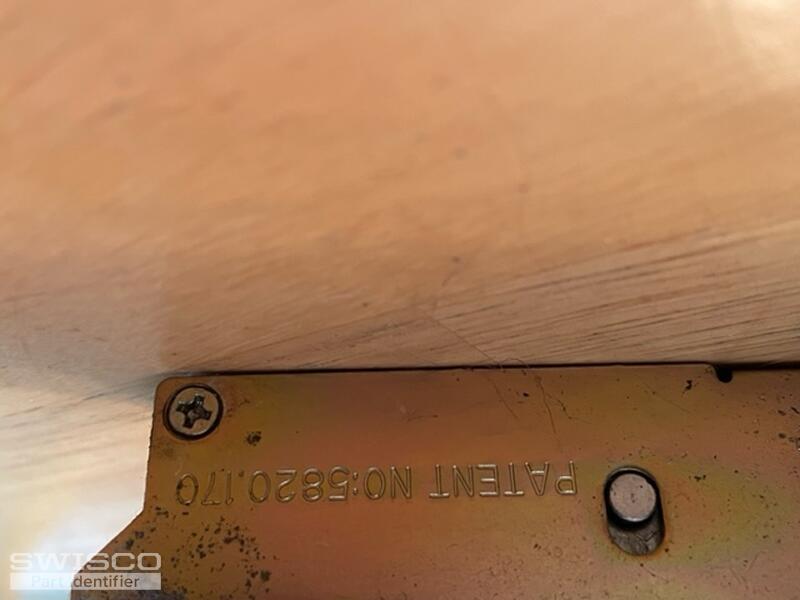

Inside latch

L 12.5"
W 1"
Inside L 11"
Inside W 3/4"
Top screw hole 1/4"
Top inside screw 1 1/4"
Top inside second screw 3.5"
Top bottom inside screw 7.5"
Bottom inside screw 10"
Bottom latch screw 12"

Door handle holes

Top 2.5"
Middle door handle hole 5" for locking
Bottom 6.5"

Hope this helps.

Chris

4 user uploaded images

4 Replies

Tom from SWISCO

Jun 15, 2023 11:13 am

Hello, Chris. Looks like you need a new patio glass door handle set and mortise. Based on your photos, my top recommendations are the 82-086 and 82-260, respectively. Look them over and let me know if you had any questions!

Home Owner

Jun 15, 2023 12:23 pm

Right now the system does not have a key for outside entry do you have one like that? Also you are showing different parts separately do I have to order everything separately or is there a full kit? Do I place order with your company or is there a vendor we order from?

Casey from SWISCO

Jun 15, 2023 1:39 pm

We do offer the 82-089 non-keyed version of the 82-086. Please note that these parts are sold separately since different manufacturers use various combinations of mortise locks and handle sets, so there is no kit that we can supply to replace all of your patio door hardware. We do not have any storefront locations but you are welcome to order the parts that you need directly on our website.
