Need Replacement Channel Balance

A quick learner from FL says:
Hi there,

Please confirm which channel balance to order.
The length 29"
There is a marking on the stem "28C"

Regards,
Dru

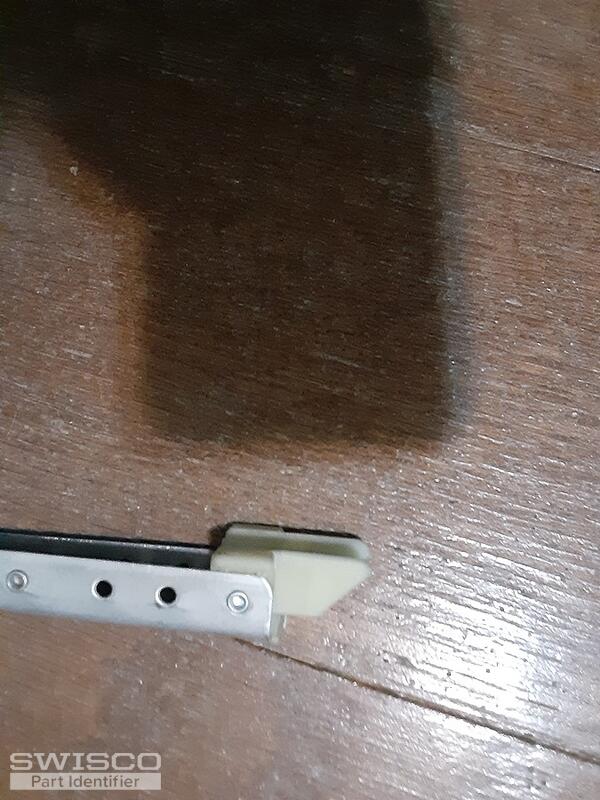

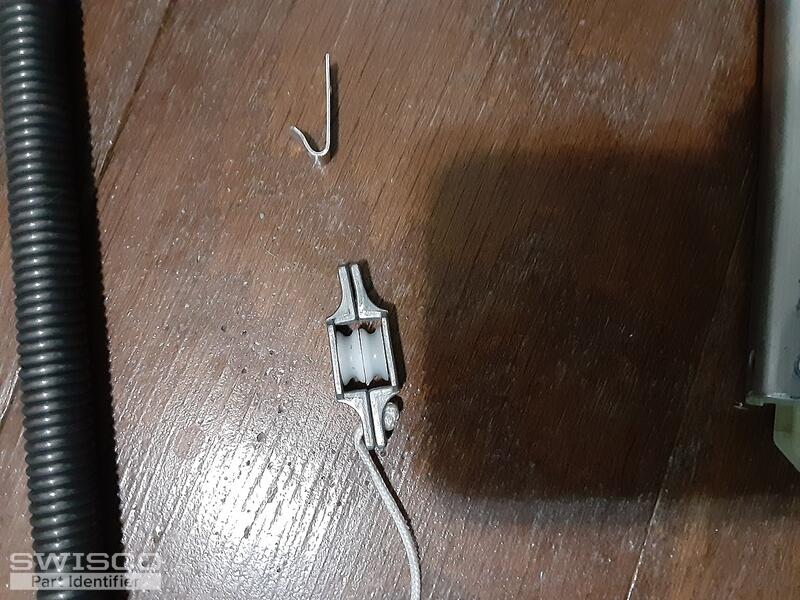

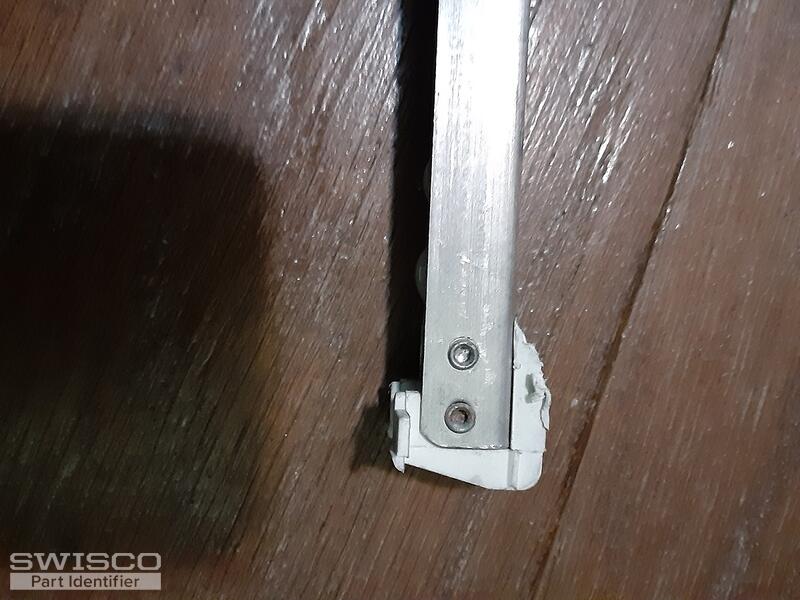

Thumbnail of the uploaded file named 20230518_133414.jpg
Thumbnail of the uploaded file named 20230518_133506.jpg
Thumbnail of the uploaded file named 20230518_133601.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S380-29 or S385-29, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

A quick learner from FL says:
Hail Tom,

The Channel Balance I have doesn't exactly match either of the ones you showed.
I have attached a pic of the "bottom shoe" for a closer look. Please review and advise which item may be able to work.

Thanks for your help.
Dru

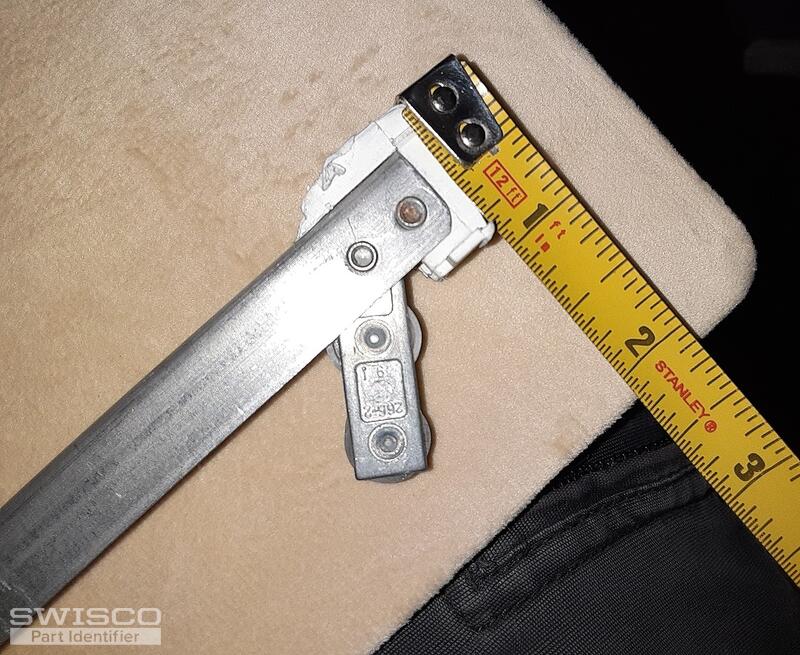

Thumbnail of the uploaded file named Channel Balance.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks, Dru, this helps clear things up. It looks like your shoe is a match for our 15-029, which has a 7/8" depth. We can supply a balance with this part as the bottom fitting, but it will have to be a custom order since it's not a stock configuration.

I'm more than happy to set that up for you, if you'd like. I just need you to tell me how many you wanted to buy. You should also note that our balance would use the 2830 stamp option; this is the same as your old 28C, just a more modern iteration.

Once I know quantity, I can email you a purchase link and price quote that you can use to place an order on our site.

Alternatively, you can buy an S380-29 right now. This has a 1" deep shoe but you can shave off that extra 1/8" with a utility knife. It's not elegant but I've done it myself in a pinch and it works fine. Just note that products altered in this way cannot be returned for a refund. On the other hand, custom balances are non-refundable, as well.

The choice is yours! Just let me know how you want to proceed.

A quick learner from FL says:
Hi Tom,

I would need 2 channel balances. Provided the price is comparable to the regular item, I would rather the custom option suggested.

Your customer service is on point! Appreciate your assistance.

Regards,
Dru
Profile picture of Tom
Tom from SWISCO responded:

Sounds good! What I'll do now is email you a custom purchase link and price quote. That will let you add 2 of these to your cart, after which you may checkout as normal.

Please let me know if you had any other questions and I would be happy to advise.

A quick learner from FL says:
Order placed.

Thank you.
Profile picture of Tom
Tom from SWISCO responded:

You're welcome! And thank you for the business, it means a lot.

Please feel free to reach out if you had questions about this or any other project.
