Need Replacement Window Balance

A handy person from Window Balance says:
February 3, 2012
1/2" x 29"

Stamped: 28F

Top and Bottom Attachments per attached photos

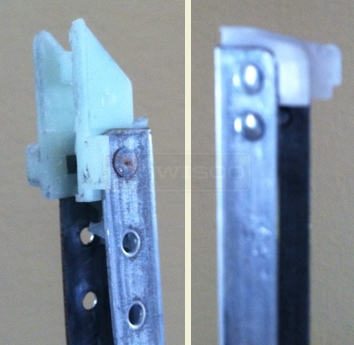

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
February 3, 2012
Thank you for posting, and for the pictures. Unfortunately, your bottom shoe in the picture on the right appears to be broken, and I won't be able to identify your balance Series without knowing what it is. If at all possible, can you upload a picture of the bottom attachment in your other balance?

Also, can you please take a picture of the number stamped on your balance?
A handy person from Winter Garden, FL says:
February 3, 2012

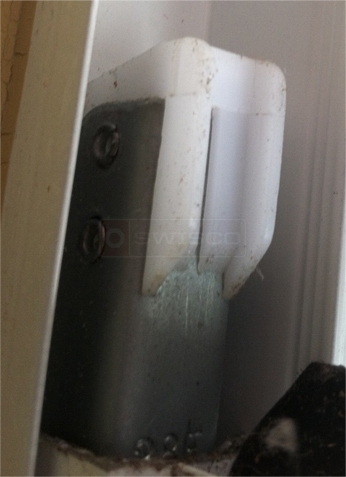

Attached photo from other side. SORRY...
A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
February 6, 2012
Thank you for the picture. We just need to know a bit more information. Please refer to the following chart and compare the width of your bottom shoe to the width of the shoes shown in the examples. Does it have wings? Is it 1", or over?
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
Diagram on how to choose between the 15-001, 15-002, 15-004, and 15-005 channel balance shoes.
A quick learner says:
February 6, 2012
The bottom guide has wings and is 1" wide ( 15-005 )
Profile picture of Paul
Paul from SWISCO responded:
February 8, 2012
Thank you. Please take a look at our S380-29 channel balance with a 2860 stamp option. I believe that this will work for you.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$10.45
