Need Simonton coils or balancers

Contractor from Salem Indiana

Apr 24, 2024 8:12 am

Please see the pics of the labels on the top and bottom sash of a Simonton window from the 90s. The coils are broken but I believe the balancer cartridges are OK. Do you have replacement balancers or coils for these? If labels aren't enough info I can get you visible glass measurements or overall sash measurements if needed. Thanks. Jeremy

2 user uploaded images

8 Replies

Emily from SWISCO

Apr 25, 2024 3:41 pm

Hi there Jeremy.

Thank you for reaching out to us. We ought to be able to help with this. Can you show us a photo of the pivot shoe? That should allow us to determine a match.

Contractor from Salem Indiana

Apr 26, 2024 8:26 am

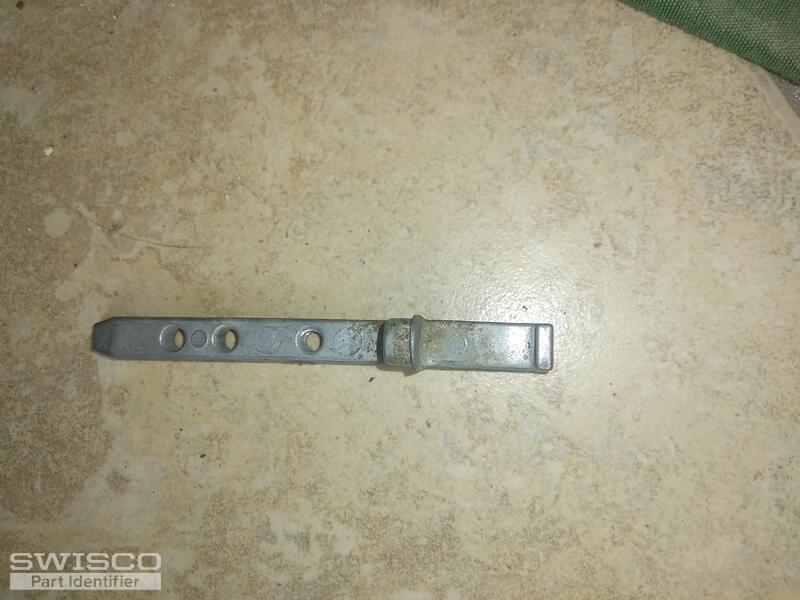

And here is the existing pivot bar.

2 user uploaded images

Emily from SWISCO

Apr 29, 2024 8:34 am

I'm afraid the pivot bar doesn't help us identify the coil balances. Would we be able to see a photo of the pivot shoe this pivot bar engages with?

Contractor from Salem Indiana

Apr 29, 2024 9:36 am

Ok I tried prior to sending the pivot bar pics, obviously it didn't make it! thanks

1 user uploaded image

Emily from SWISCO

Apr 29, 2024 10:34 am

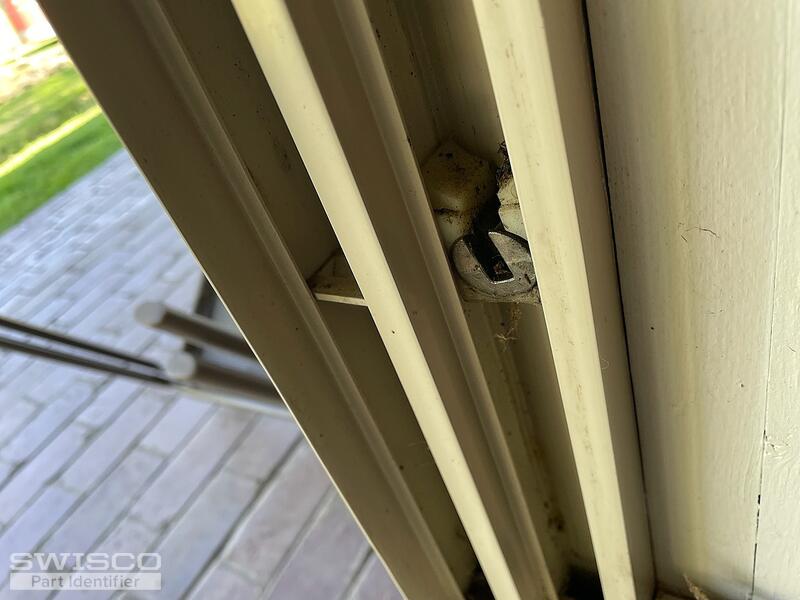

Thank you very much! I'm familiar with the pivot shoe shown here. We don't sell an exact match but you can use the 15-259 pivot shoe, Series 159 coil springs, and the 26-083 pivot bar for this repair. The video below will go over the process in detail.

Contractor from Salem Indiana

Apr 29, 2024 11:09 am

Thank you!

Emily from SWISCO

Apr 29, 2024 12:04 pm

No problem. I'll be here if you need anything else!
