Need a 28? replacement balance

Home Owner from San Jose CA
Hi
I need to replace this. (Image)

What is the corresponding part number on your website?

Regards
Deepesh
1 user uploaded image
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Deepesh. I am confident that we can find a match for this balance, but I cannot identify what you have from this photo. Stamps aren't actually a part number, it just tells us how strong the spring is.

In order to determine the Series, I'll need to see a clear picture of the top nylon fitting. As for the bottom fitting, which is already in your photo, I'd like to know its depth.

We will be able to recommend a match after I have those two pieces of information.

Home Owner from San Jose CA

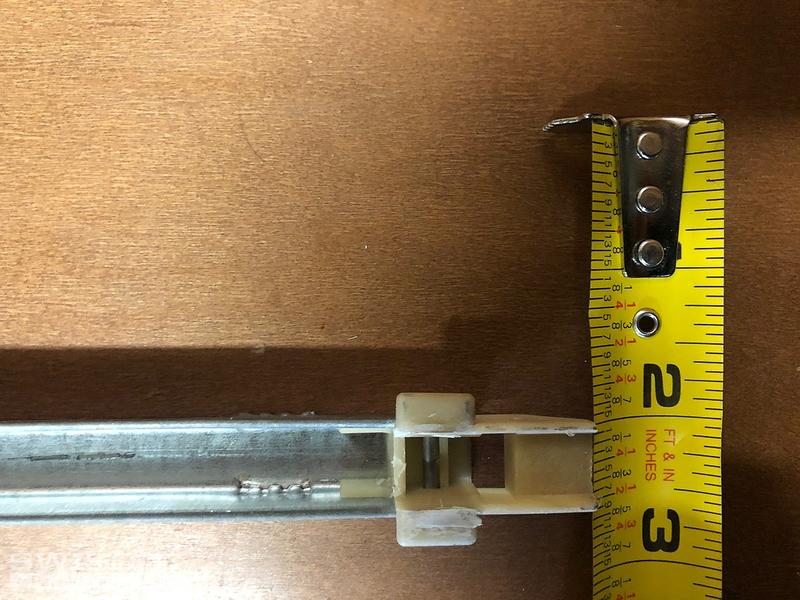

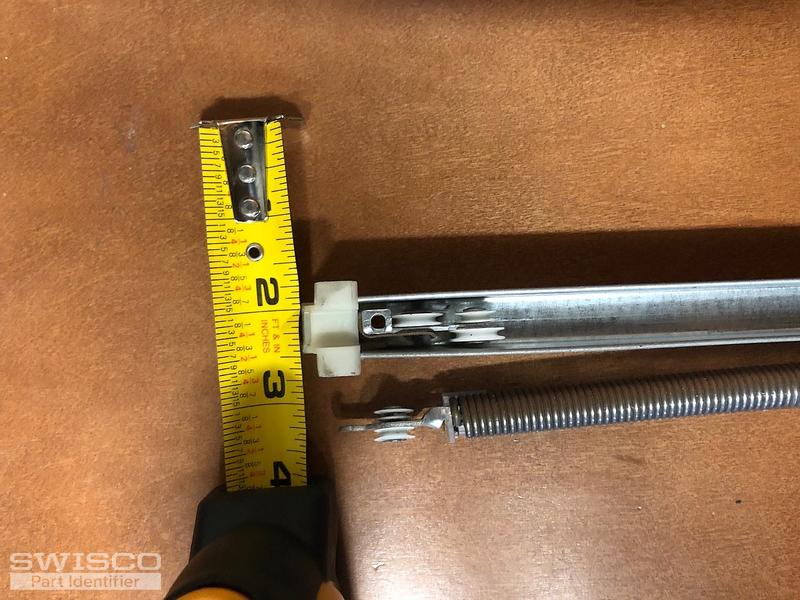

Here are all the pictures

Deepesh

3 user uploaded images
Home Owner from San Jose CA
One more Picture
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thank you for the photos. Your balance closely resembles both out S385-29 and S380-29. The only difference between these two balances is the depth measurement of the bottom balance shoe. The depth measurement of the Series 380 is 1" and for the Series 385 is 1-3/32". Measure the depth of your bottom shoe, like in the diagram below, to determine which balance is the best match. Whichever one chosen will go with the 2840 option.

Alternate view of 15-004
Alternate view of 15-004
Home Owner from San Jose CA
Hi

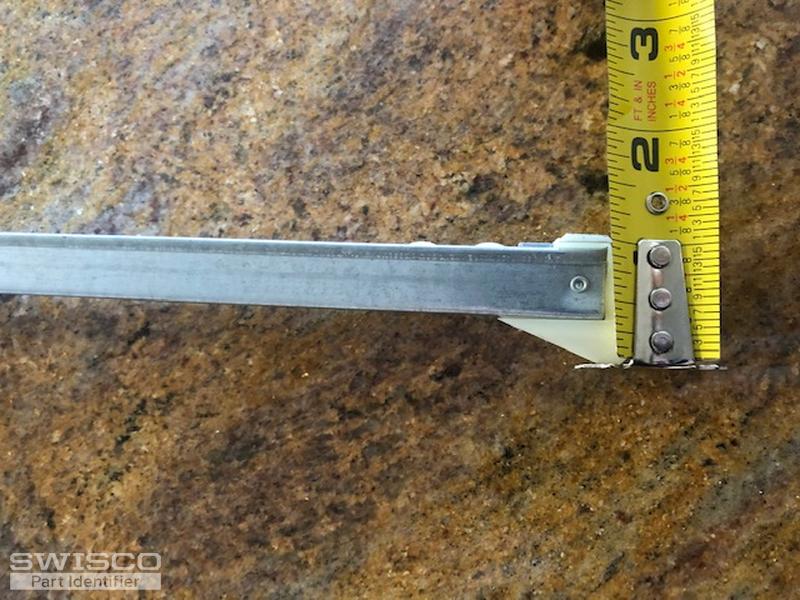

Looks like its 1* - Please see attached picture.
Can you please check as well

Please let me know what part number should I order.

Regards
Deepesh

1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

In your photo, it does look like it could be 1" but we can not always get the best look with a measuring tape next to the part. If you feel the depth of the bottom shoe is 1", then you can go with the Series 380
