Need a Channel Balance for a non-tilt window

Handy Person from Happy Valley Oregon

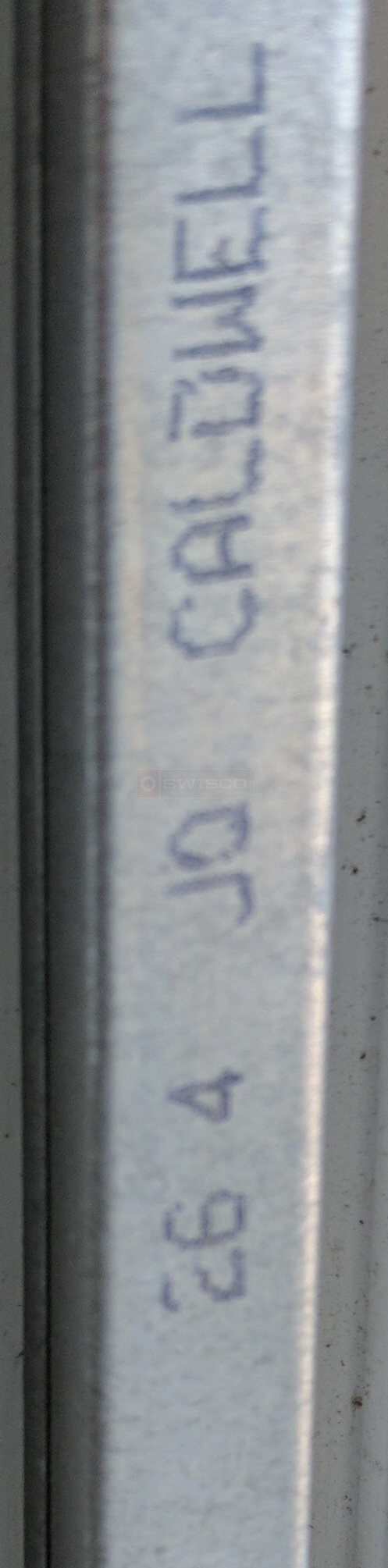

Hello I need a channel balance for a non-tilt window. A picture attached shows the model number. Can you help me find the correct on on your site.

thanks
channel balance
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert
If only it were so easy as the model number being printed on the balance...

That stamp is mostly only relevant to the manufacturing process. We can glean some important information from it, but it doesn't tell us what Series balance you need. If you're having trouble using our channel balance guide to identify your balance, I'd recommend sending photos of both plastic ends, so that we can match it up for you.

In the meantime, you may want to measure the metal channel from end to end, as well as remove and weigh your window sash, then come back to us with both those measurements, along with the photos.
Reply to Thread
Current Photos:
