Quick Learner from Oregon

Jul 7, 2021 2:43 pm

I need to order a new channel for my window not sure whate kind and what option I need.

3 user uploaded images

4 Replies

Emily from SWISCO

Jul 12, 2021 1:19 pm

Hi there!

We'd be happy to help but we'll need to see your top nylon fitting. I can only see the bottom fitting in the above pictures. Take a look at the video below, it'll explain exactly what we'll need to see.

Quick Learner from Oregon

Jul 13, 2021 5:22 pm

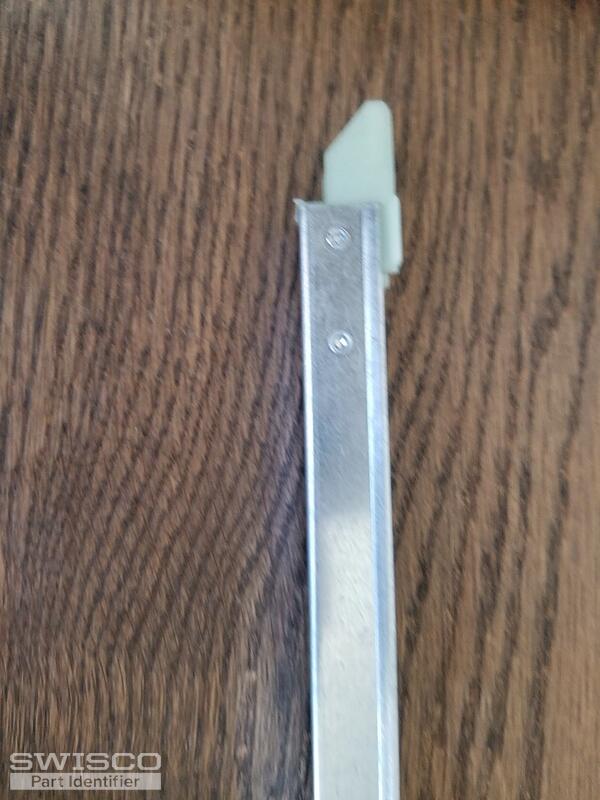

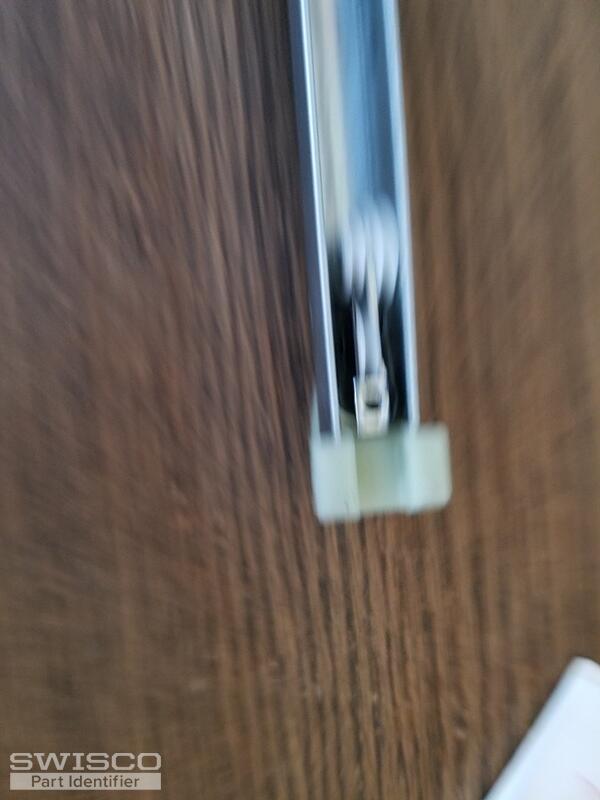

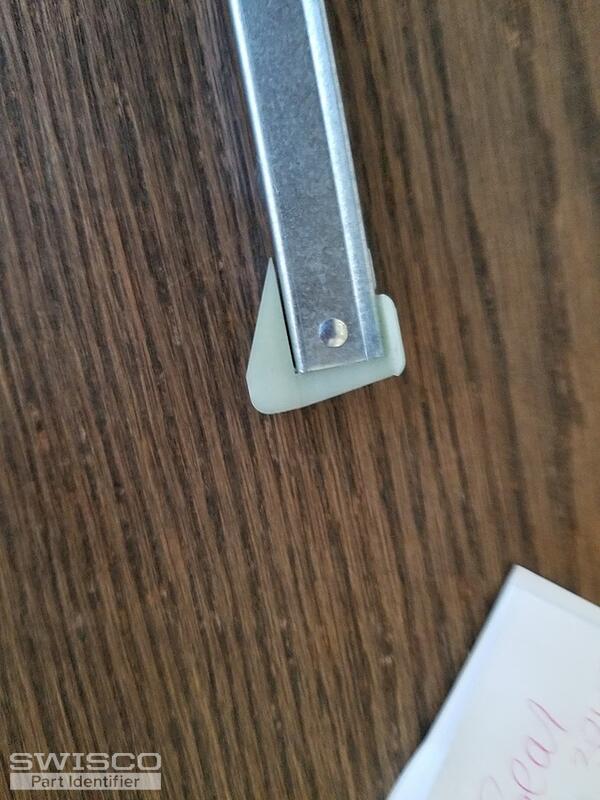

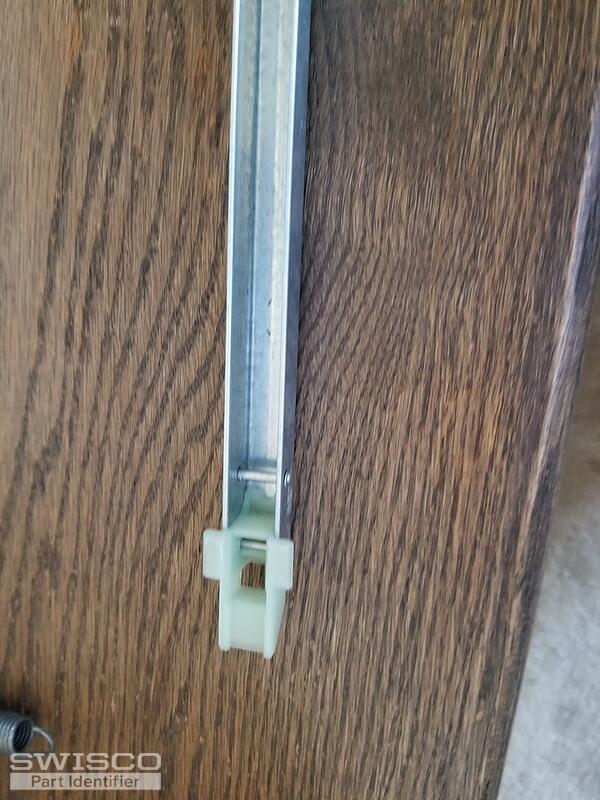

These are the new pictures

4 user uploaded images

Emily from SWISCO

Jul 14, 2021 8:53 am

Perfect!

With this combination of attachments, you could have either an S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2020.

If you have any further questions just let us know.

Comparison of the S378, S380 and S385 balance shoes.
