Need a replacement part for a tilted window

A home owner from Lewes de says:

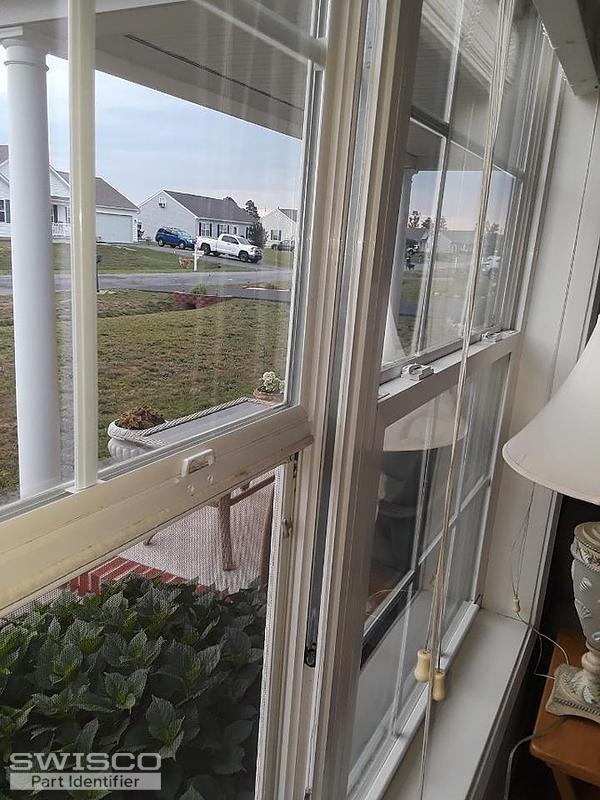

Need help Tilted window replacement part. The tag on the window says. MST 3856 Took the part out of the window and it reads 26D

Thank you

Thumbnail of the uploaded file named Resized_20200629_121149_777.jpeg
Thumbnail of the uploaded file named Resized_20200629_121133_1350.jpeg
Thumbnail of the uploaded file named Resized_20200629_121105_1925.jpeg
Thumbnail of the uploaded file named Resized_20200627_070631_2812.jpeg
Thumbnail of the uploaded file named Resized_20200627_070621_3846.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We should be able to help with this balance, but it might have to be a custom order. Before I recommend anything, can you show me a picture of the metal clip at the end of the cord? I can't see it in your photos and it will be an important determining factor as to whether or not this has to be a custom made part.

A home owner from Lewes de says:
Replacement

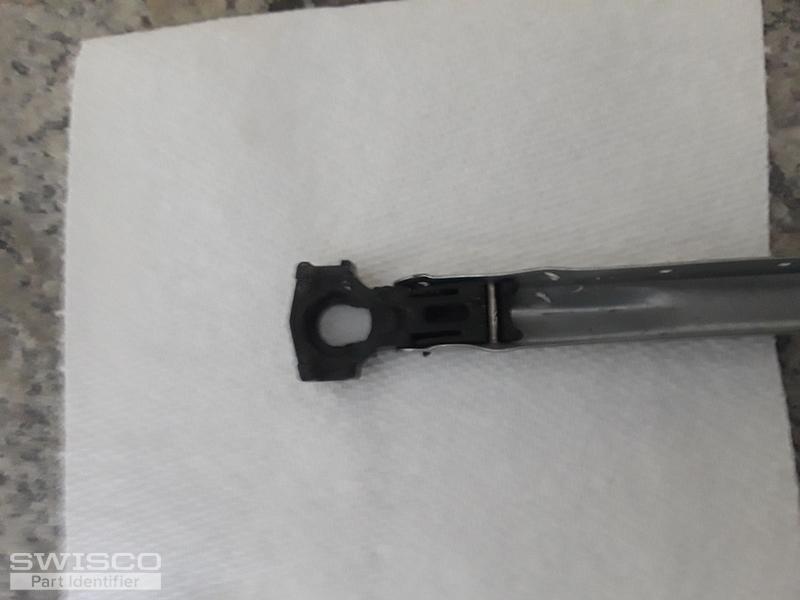

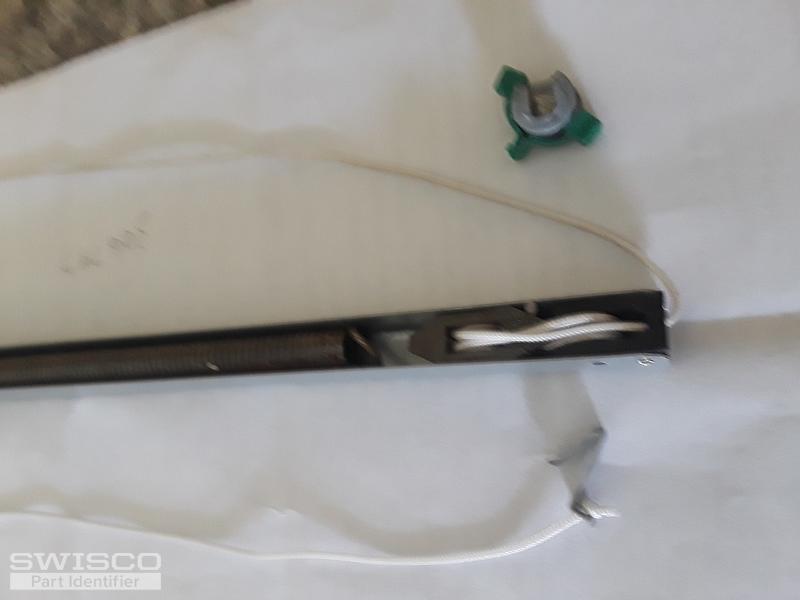

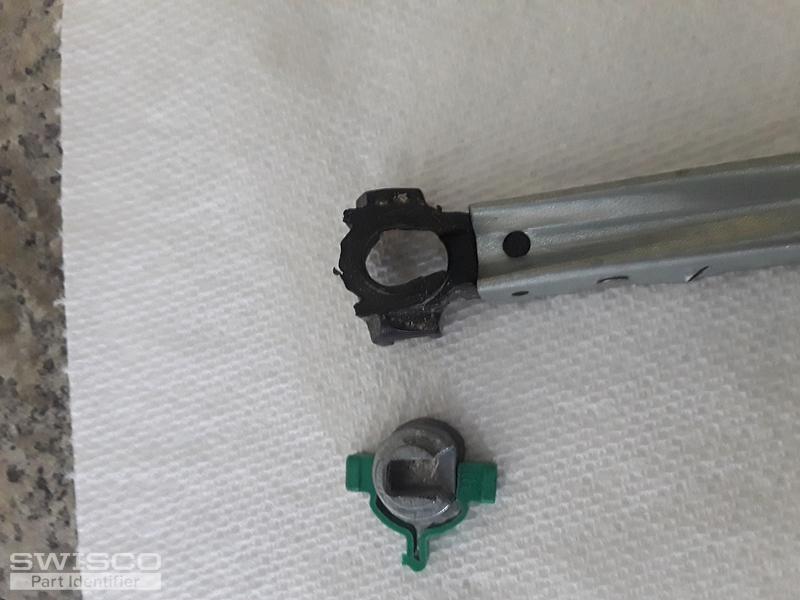

Thumbnail of the uploaded file named 1593714168788174790425381384219.jpg
Thumbnail of the uploaded file named 15937142295907221830338388231642.jpg
Thumbnail of the uploaded file named 15937142617981842669241339045041.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! As suspected, this will have to be a custom order. Specifically, you have our S795-26, but with the bottom shoe swapped out for the smaller 15-194 and the top clip swapped out for the 15-198 hook.

I'll email you an order link and price quote now for two, which is our minimum. If you'd like to change that quantity, please tell me here and I'd be happy to do so.
