Need all new hardware, locks,trim

Handy Person from Ilwaco wa

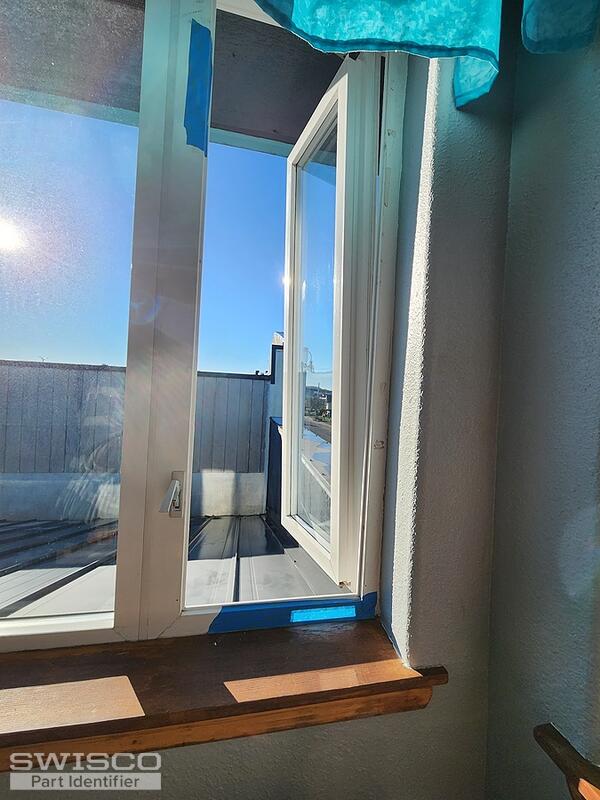

48x48 window with a

16 x 45 " crankout window

Opener - Entrygard 31539

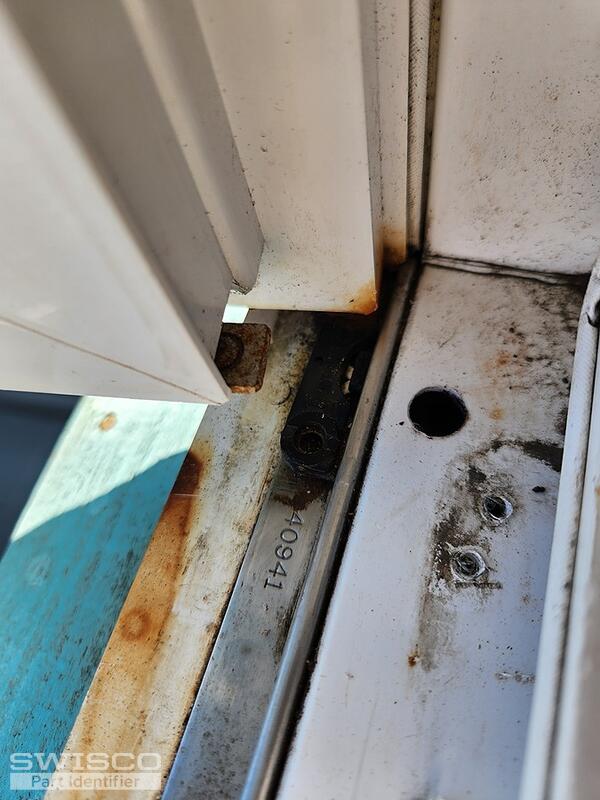

Bottom track 40941

Latch 21088

Lock no numbers

Need all new hardware

5 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your casement operator is similar to the 39-334 depending on how the specifications below compare to yours. We also offer the 39-333 opposite-handed version and the 39-107FK handle with cover used with both operators.

DImensions for 39-334
DImensions for 39-334

As for the lock, the 38-036 is a similar design. Review the measurements below to confirm if it would work for your repair. Please note that, unfortunately, we do not carry any kind of window trim, which would be specific to the manufacturer. Thanks for posting.

Alternate view of 38-036
Alternate view of 38-036

Handy Person from Ilwaco wa
How about the tracks and pivots?
Casey
Casey from SWISCO
SWISCO
Expert

Take a look and compare the 39-505 operator track to yours.

Alternate view of 39-505
Alternate view of 39-505

I'm not sure which part you're referring to as the pivot. Could you show us a photo of that specific part?

Handy Person from Ilwaco wa

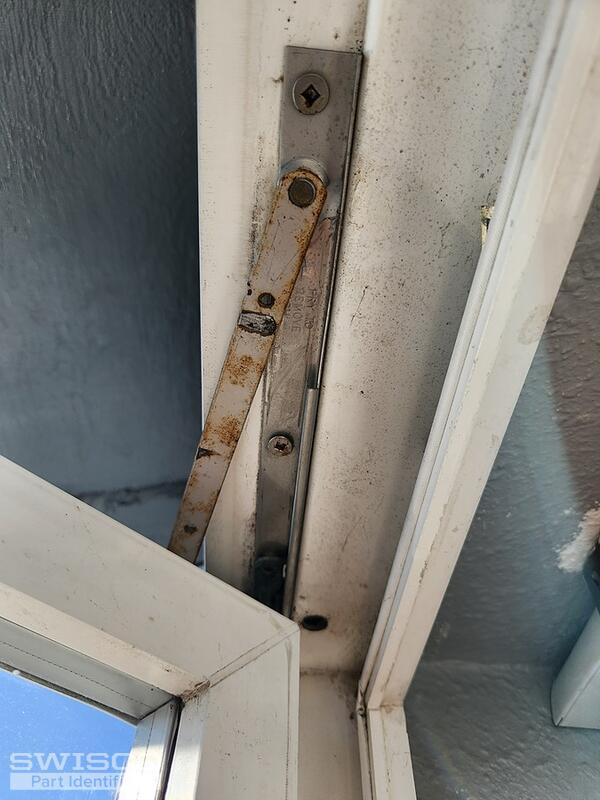

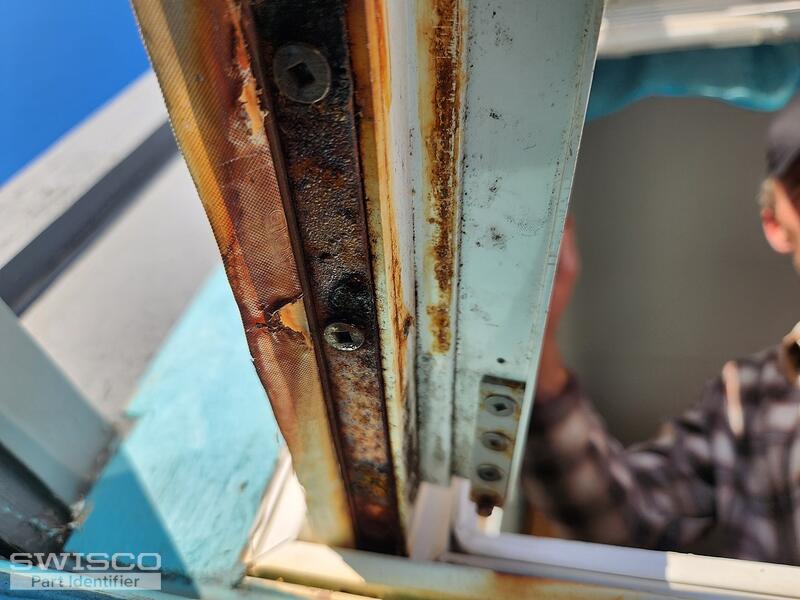

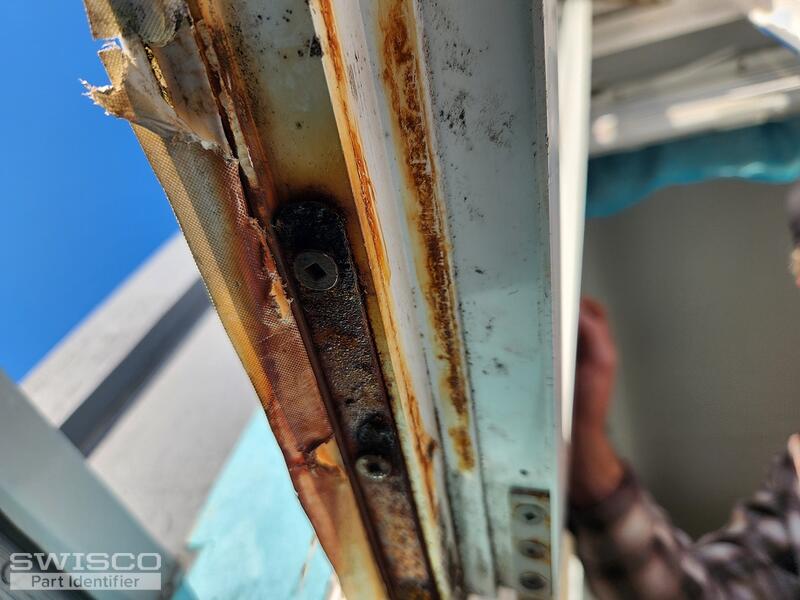

Here are the other parts

4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

It looks like you need new casement hinges. Take a look at the 36-048 set and confirm the 10" long base that attaches to the window sill matches yours.
