Need an Operator

Question

Hello,

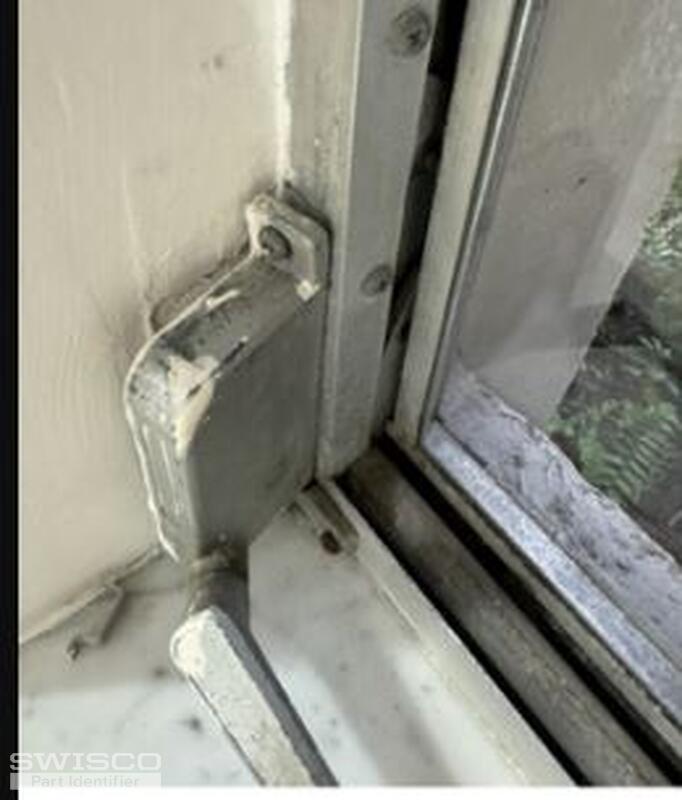

I have old metal windows that are in desperate need of parts. I've checked the windows for names or markings but can't see anything at all.

I am enclosing photos of them. Please let me know if you need any additional photos or information to help me place the order for the cranks and also for seals. They need the rubber track seals to help keep the heat out here in Florida.

Also, maybe you have a tip for which lubricant to use to make them move more easily.

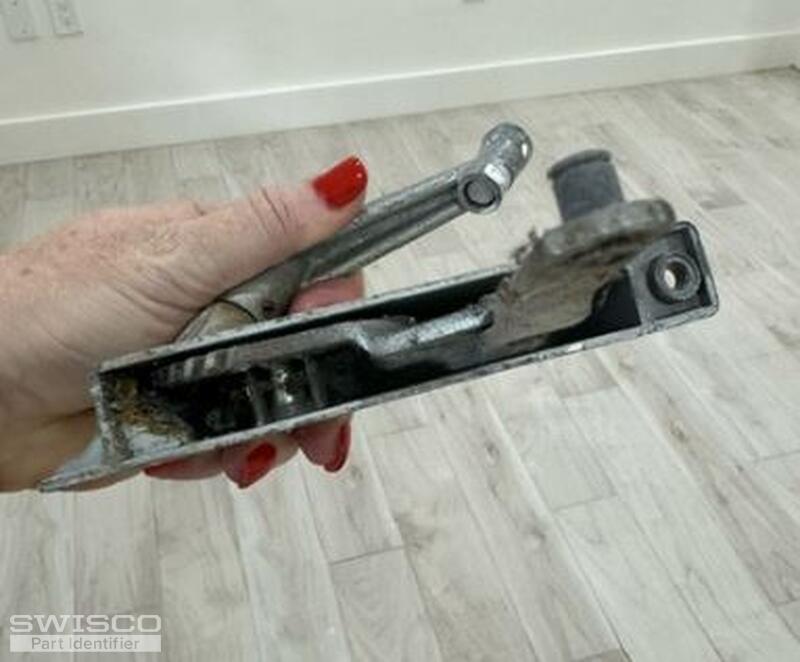

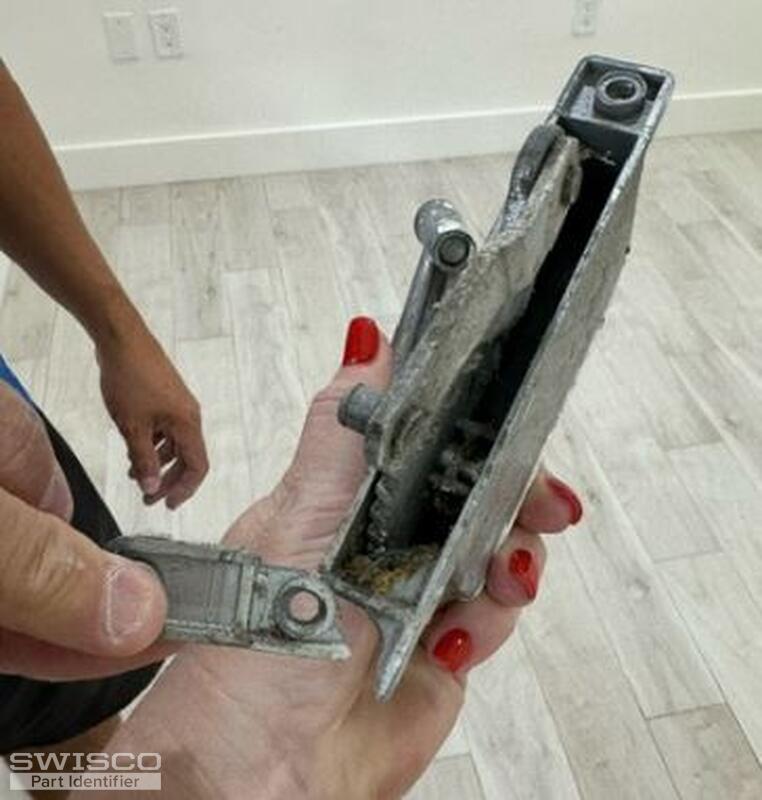

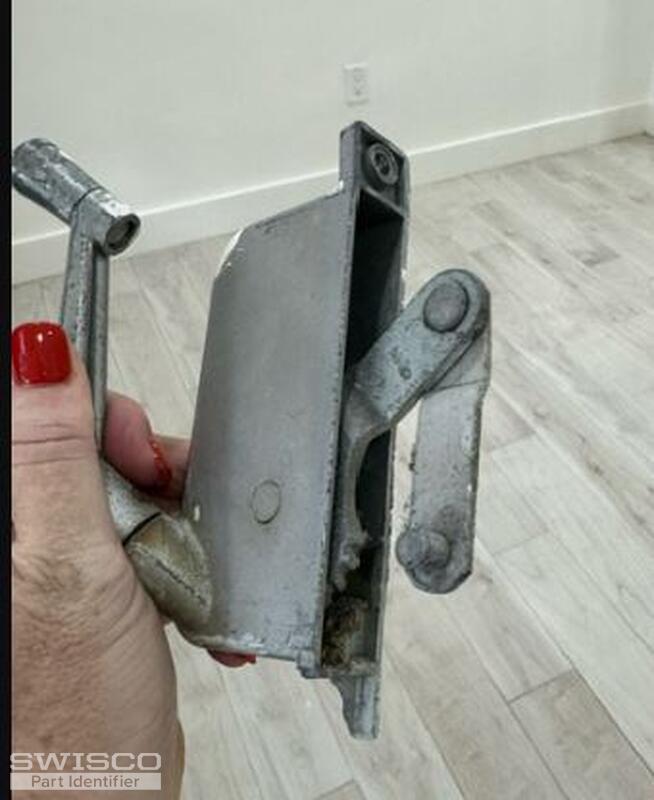

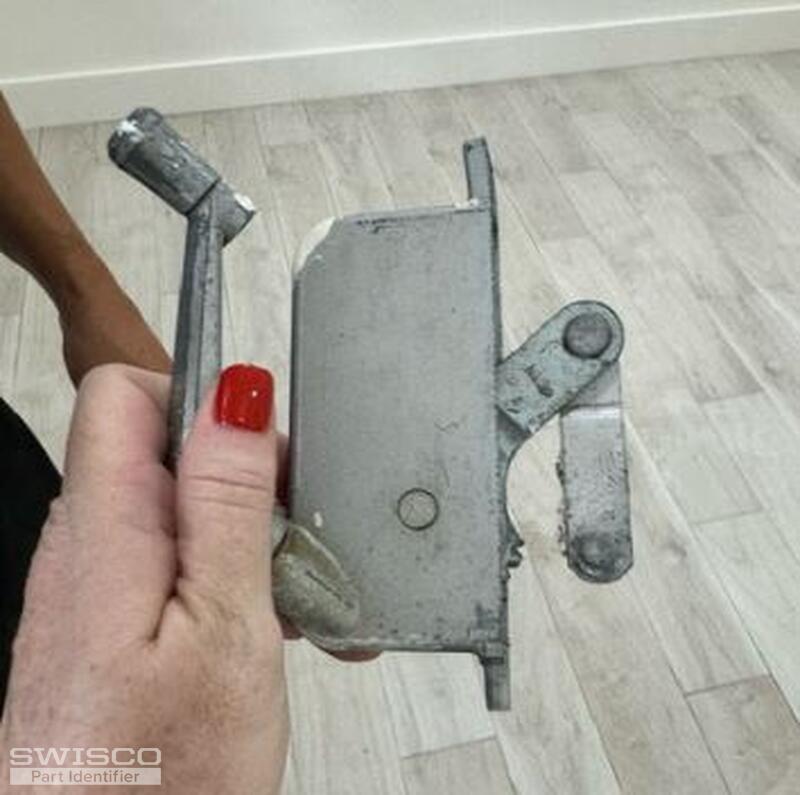

Please find attached photos of the part. Please let me know if you need additional photos. Also, please let me know if you can supply this part and the cost.

Thank you.

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out! Your awning window operator looks a lot like the 39-193 LH Window Crank Operator; the right handed version is the 39-194. Carefully look over the dimensions below and compare them to determine if this might be the right fit.

These operators use the 33-206 Shoulder Bolt Washer and the 33-081 screw for the installation.

Dimensions for 39-193
