Need balance replacements

Home Owner from Alabama
Looking for new balance replacements
For 3400 BSI LF and LG
2 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! I am confident we'll have a replacement balance we can recommend to you, however, I'll need to see a photo of your balances removed from your window.

I am specifically looking to see a any attachments that might be on the top and bottom of the balance or that may have been left behind in the window channel.

Let me know if you have any questions.

Home Owner from Alabama
There were broken and lost. I may look at another window as all of them are having issues
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Okay, I understand. Please look to see if any of the other windows have balances with attachments on them.

They are important for identifying the balances needed for your window.

Home Owner from Alabama

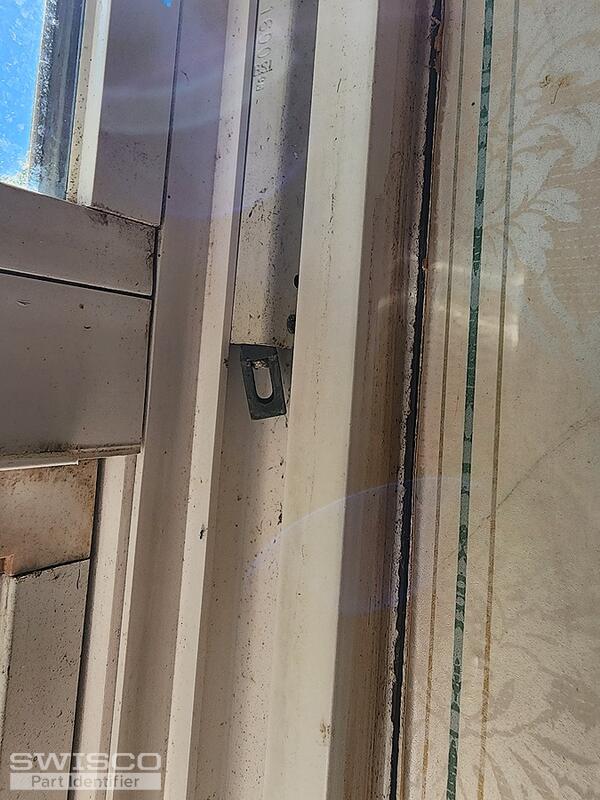

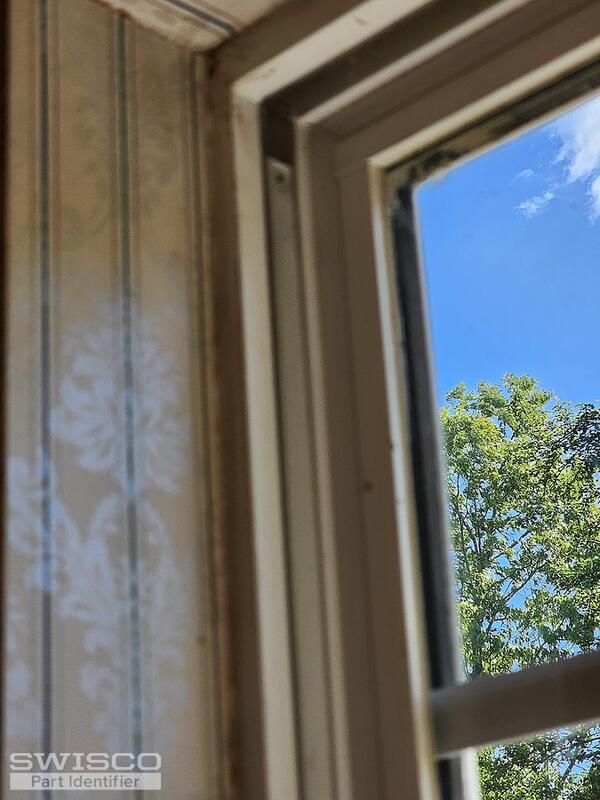

Here is what the shoe looks like. I have several that the springs seem busted. Also how do ypu replace the shoes?
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hello! Jasmine isn't here today, but I will do my best to assist you.

With these new photos in hand, I would say that our best option for you is going to be our Series 770. This is a 1/2" channel that screws in at the top of the track and has a terminal clip at the end of the cord, same as your original.

I feel fairly confident that this will work for your original, but that stamp is a little strange. I recommend weighing your sash on a scale to get the weight, then referring to the chart we show on each Series 770 length page in our catalog. That will tell you which one of our stamps, if any, will best support that weight. If your sash weigh exceeds any of the available options, just let us know and we can pursue other solutions.

As for replacing the shoes, I'll share with you a couple videos that you may find helpful. You can find them linked below. Your shoe in particular looks like a match for our 15-129, though it can be reused as long as it's still in good condition.
