Need coil style balancer replacement for damaged could

A handy person from Mason, Ohio says:

March 23, 2022

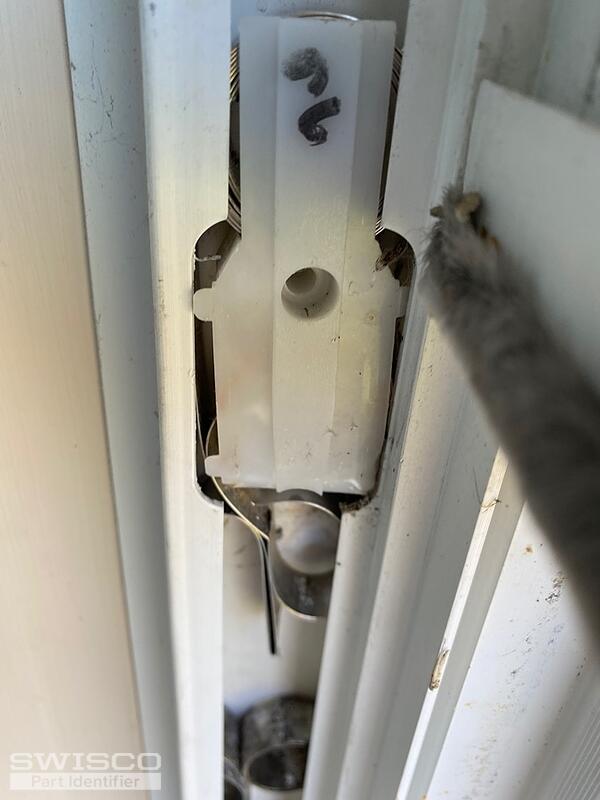

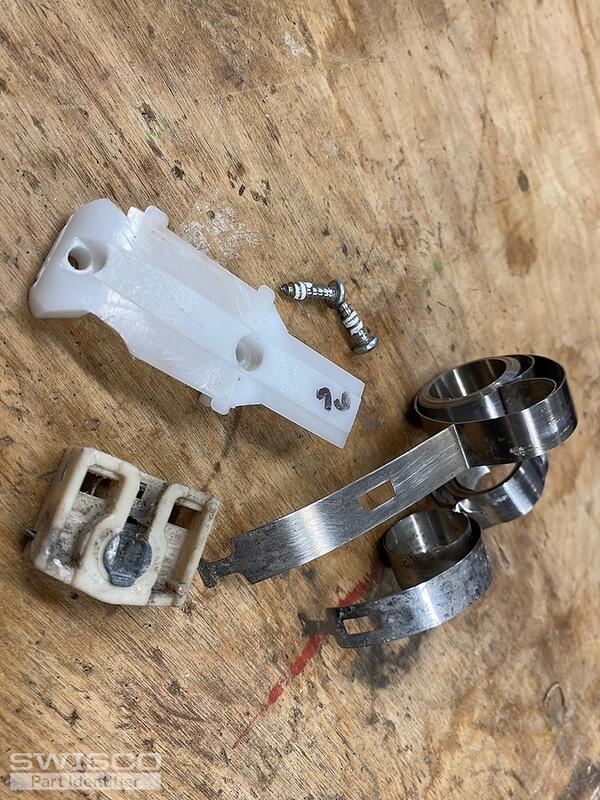

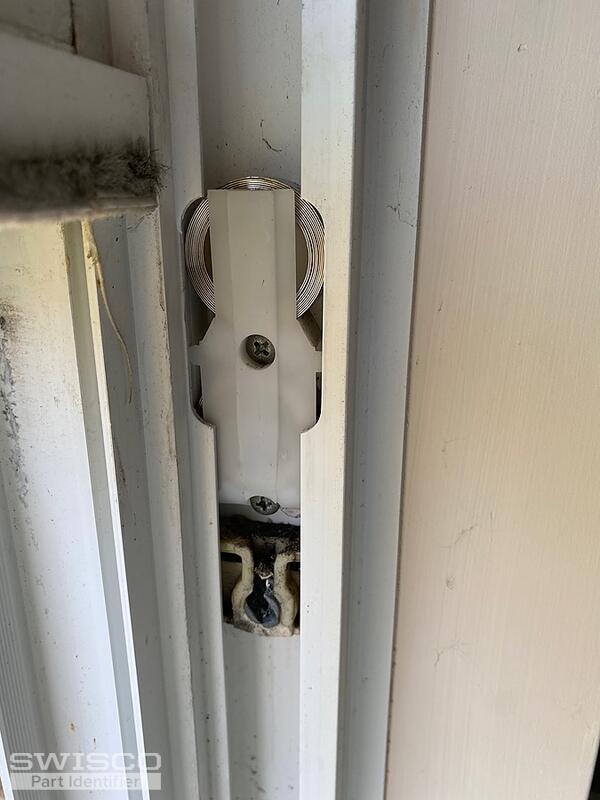

Lower tilt out vinyl sash weighs -23 lbs and is 36" tall so probably need 35" travel. Old balance assembly has 2 coil springs as shown in picture. Springs are 1/2 wide with 5 stamped on one spring and #6 etched on other spring. Pivot shoe pictured checks 9/16" x 1 1/4" x 1" tall. No marking on spring cover except L S that I think means left side. Ready to buy S140-11 but could not confirm extension range on website.

Thumbnail of the uploaded file named 14C33B6A-4F54-4F20-BC59-06A54E13F69C.jpeg

Thumbnail of the uploaded file named 0DEB2FFC-3C1C-4BBB-8632-046C6E24CA86.jpeg

Thumbnail of the uploaded file named 9402FA12-73F5-491E-8C81-21E8503907EF.jpeg

Casey from SWISCO responded:

March 24, 2022

Hello,

I would not recommend the S140 in this case but your pivot shoe looks a lot like our 15-111, which is designed to work with our 1/2" thick Series 160 coil spring and 15-150S cover. Take a look and compare the specifications to confirm. Thank you!

Pivot Shoe, 1/2" Thick

15-111

$2.44

5.5 lbs Series 160 Coil Balance

S160-05

$4.63

6.5 lbs Series 160 Coil Balance

S160-06

$4.85

1/2" Coil Single Support

15-150S

$1.10
