Need coil support and springs

Start a new Discussion

Quick Learner from MA

Nov 17, 2024 7:32 pm

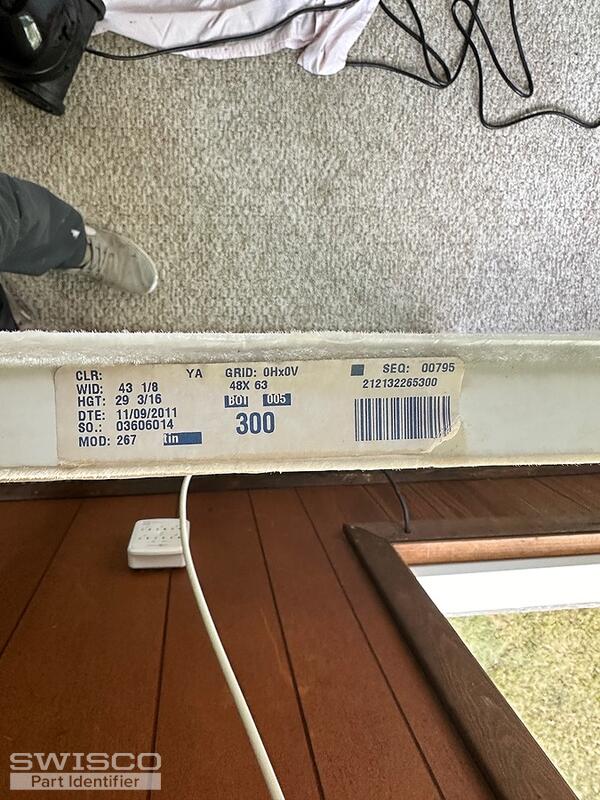

Looking for:

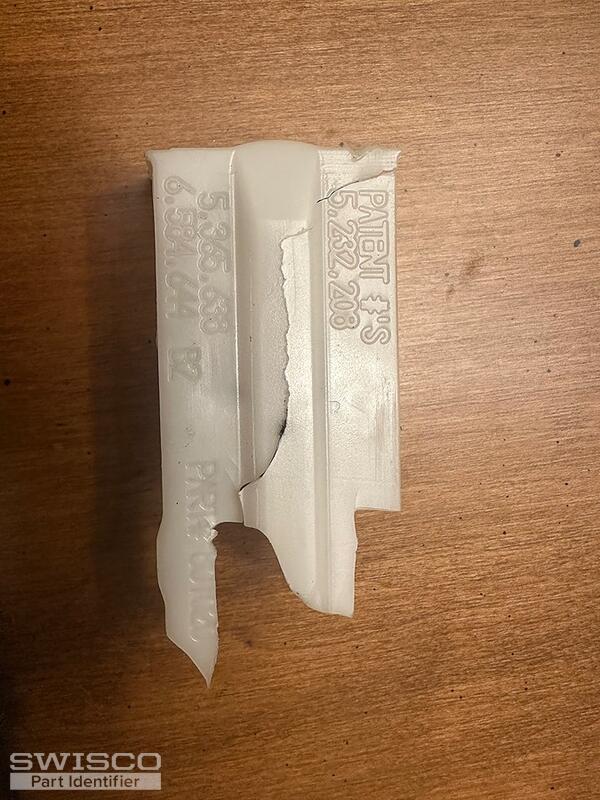

- coil double support; broken part #801020
- spring 6.5
- spring 7.5

5 user uploaded images

6 Replies

Casey from SWISCO

Nov 20, 2024 11:33 am

Hello,

We'd be happy to help but we'll need a bit more information to get started. If you could show us the pivot shoe your springs connect to and write out the width of your coil springs, we can go from there. Look over the videos related on this page in the meantime. Thank you!

Quick Learner from Massachusetts

Nov 25, 2024 7:29 am

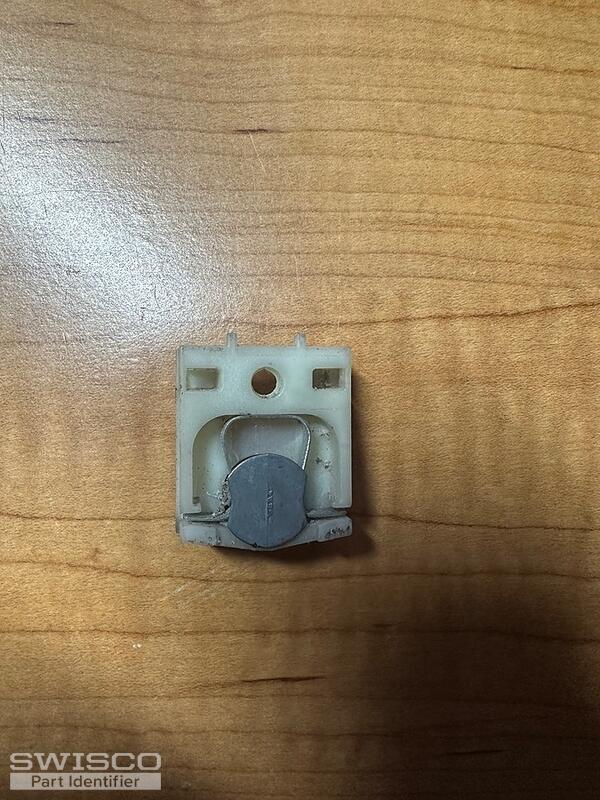

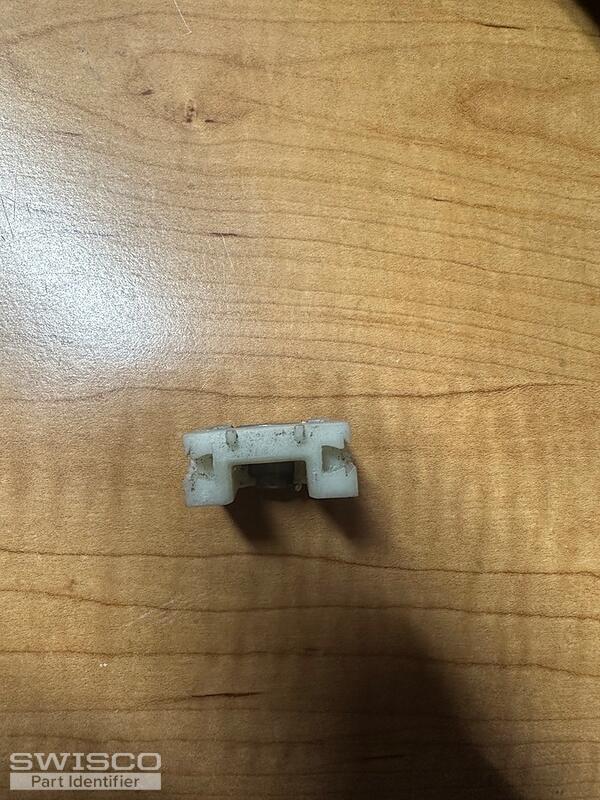

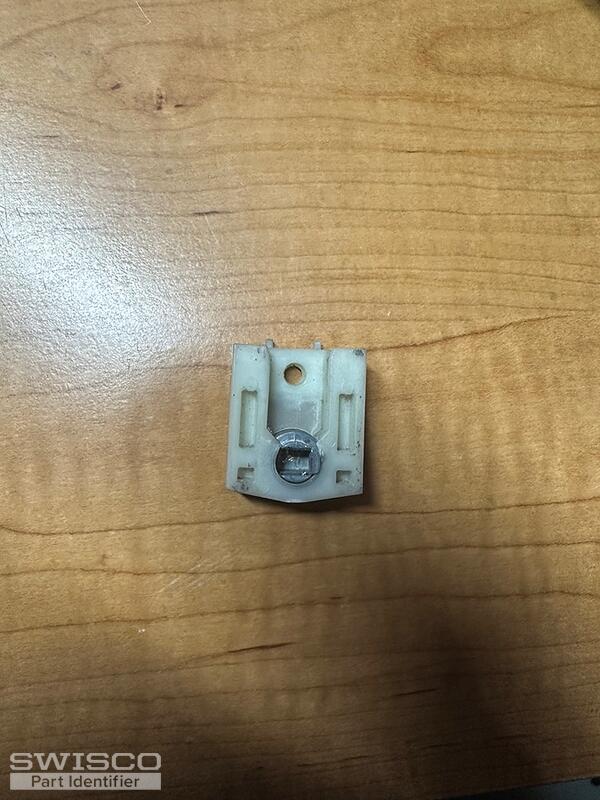

Good morning, thank you! Attached are photos of the pivot shoe. The width of the spring is a 1/2 inch.

3 user uploaded images

Casey from SWISCO

Nov 25, 2024 10:25 am

Thanks for getting back to us. Your pivot shoe resembles the 15-228, which would use the 1/2" thick S160-06 and S160-07 coil springs. Take a look and let us know if you need anything else.

Dimensions for 15-228

Dimensions for 15-228

Quick Learner from Massachusetts

Nov 25, 2024 10:56 am

Great - thank you! Do you have a suggestion for a double coil support - thank you!

Casey from SWISCO

Nov 25, 2024 11:18 am

Sure, see the 15-150D found under the related items section of the S160 product pages.

Detail of 15-150D

Detail of 15-150D

Profile view of 15-150D
