Need hardware for entertainment center
Quick Learner from Lafayette, LA
Feb 5, 2025 9:19 am
The part I'm looking for is a "door catch" for an entertainment center. The part holds the Entertainment Center door closed. The piece of furniture is from the Lexington Victorian Sampler collection and the description from the brochure is "Armoire Entertainment Center" part number 391-312.

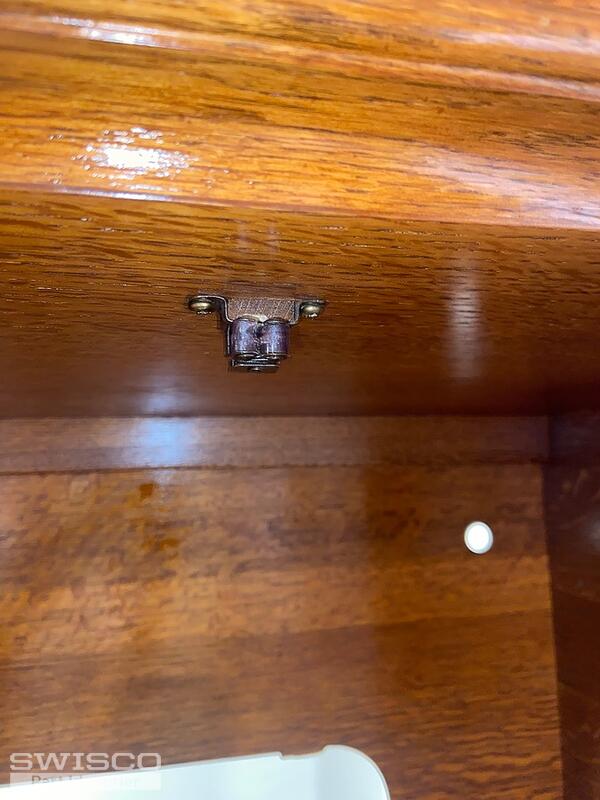

4 user uploaded images
4 Replies
Casey from SWISCO
Feb 5, 2025 1:15 pm
Hello,
The part shown in your photos resembles the 32-301 double roller catch. Take a look and compare the specifications below to yours. Thanks for posting!
Side view of 32-301
Detail of 32-301
Quick Learner from Lafayette, LA
Feb 5, 2025 4:46 pm

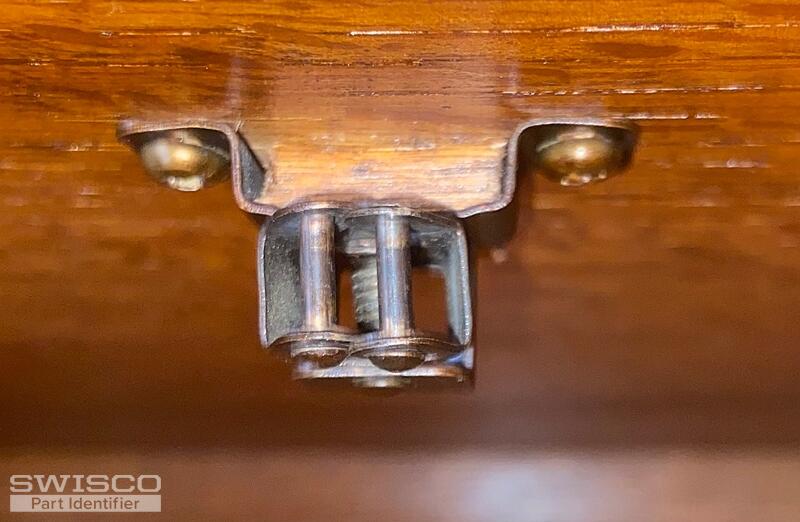

Thanks for the quick reply, however I don't think that the part you recommended will work. If you look at the last picture I uploaded (the closeup of the double roller catch), you'll see that the underside of the catch has a "u-shape" that bends around a small block of wood. I'm attaching another picture to this reply to illustrate. The distance from "left to right" is 1 11/16" (1 1/4" on Part 32-301). Hope this helps.
1 user uploaded image
Casey from SWISCO
Feb 6, 2025 9:26 am
We had another customer with a similar issue, which you can view here. Unforutnately, we do not have a version of the 32-301 roller catch with the same installation hole backset but the customer decided to try packing out the sides of their wood protrusion with spacers to install our part. Take a look and see if this might work for your application.
